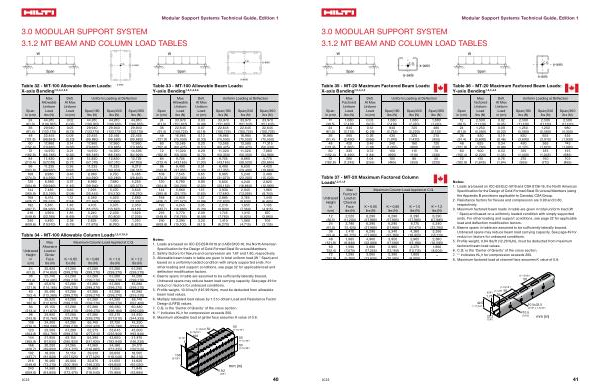

3.0 MODULAR SUPPORT SYSTEM 3.1.2 MT BEAM AND COLUMN LOAD TABLES
Modular Support Systems Technical Guide, Edition 1
Table 32- MT-100 Allowable Beam Loads: X-axis Bending 1, 2, 3, 4, 5, 6
Span in( cm)
Max Allowable Uniform Load lbs( N)
Defl. At Max Uniform Load in( cm)
Uniform Loading at Deflection
Span / 180 lbs( N)
Span / 240 lbs( N)
Span / 360 lbs( N)
24
44,910
0.02
44,910
44,910
44,910
( 61.0)
( 199,765)
( 0.06)
( 199,765)
( 199,765)
( 199,765)
36
29,940
0.05
29,940
29,940
29,940
( 91.4)
( 133,175)
( 0.13)
( 133,175)
( 133,175)
( 133,175)
48
22,455
0.09
22,455
22,455
22,455
( 121.9)
( 99,880)
( 0.23)
( 99,880)
( 99,880)
( 99,880)
60
17,960
0.14
17,960
17,960
17,960
( 152.4)
( 79,885)
( 0.36)
( 79,885)
( 79,885)
( 79,885)
72
14,970
0.21
14,970
14,970
14,595
( 182.9)
( 66,585)
( 0.52)
( 66,585)
( 66,585)
( 64,920)
84
12,830
0.28
12,830
12,830
10,725
( 213.4)
( 57,070)
( 0.71)
( 57,070)
( 57,070)
( 47,705)
96
11,225
0.36
11,225
11,225
8,210
( 243.8)
( 49,930)
( 0.93)
( 49,930)
( 49,930)
( 36,515)
108
9,980
0.46
9,980
9,730
6,485
( 274.3)
( 44,390)
( 1.17)
( 44,390)
( 43,280)
( 28,845)
120
8,980
0.57
8,980
7,880
5,255
( 304.8)
( 39,940)
( 1.45)
( 39,940)
( 35,050)
( 23,375)
144
7,485
0.82
7,295
5,470
3,645
( 365.8)
( 33,290)
( 2.08)
( 32,445)
( 24,330)
( 16,210)
168
6,415
1.12
5,360
4,020
2,680
( 426.7)
( 28,535)
( 2.84)
( 23,840)
( 17,880)
( 11,920)
192
5,610
1.46
4,105
3,075
2,050
( 487.7)
( 24,950)
( 3.70)
( 18,255)
( 13,675)
( 9,115)
216
4,990
1.85
3,240
2,430
1,620
( 548.6)
( 22,195)
( 4.69)
( 14,410)
( 10,805)
( 7,205)
240
4,490
2.28
2,625
1,970
1,310
( 609.6)
( 19,970)
( 5.79)
( 11,675)
( 8,760)
( 5,825)
Table 33- MT-100 Allowable Beam Loads: Y-axis Bending 1, 2, 3, 4, 5, 6
Span in( cm)
Max Allowable Uniform Load lbs( N)
Defl. At Max Uniform Load in( cm)
Uniform Loading at Deflection
Span / 180 lbs( N)
Span / 240 lbs( N)
Span / 360 lbs( N)
24
33,970
0.03
33,970
33,970
33,970
( 61.0)
( 151,105)
( 0.08)
( 151,105)
( 151,105)
( 151,105)
36
22,645
0.07
22,645
22,645
22,645
( 91.4)
( 100,725)
( 0.18)
( 100,725)
( 100,725)
( 100,725)
48
16,985
0.13
16,985
16,985
16,985
( 121.9)
( 75,550)
( 0.33)
( 75,550)
( 75,550)
( 75,550)
60
13,585
0.20
13,585
13,585
11,315
( 152.4)
( 60,425)
( 0.51)
( 60,425)
( 60,425)
( 50,330)
72
11,320
0.29
11,320
11,320
7,860
( 182.9)
( 50,350)
( 0.73)
( 50,350)
( 50,350)
( 34,960)
84
9,705
0.39
9,705
8,660
5,775
( 213.4)
( 43,165)
( 1.00)
( 43,165)
( 38,520)
( 25,685)
96
8,490
0.51
8,490
6,630
4,420
( 243.8)
( 37,765)
( 1.30)
( 37,765)
( 29,490)
( 19,660)
108
7,545
0.65
6,985
5,240
3,490
( 274.3)
( 33,560)
( 1.65)
( 31,070)
( 23,305)
( 15,520)
120
6,790
0.80
5,655
4,240
2,825
( 304.8)
( 30,200)
( 2.03)
( 25,150)
( 18,860)
( 12,565)
144
5,660
1.15
3,930
2,945
1,965
( 365.8)
( 25,175)
( 2.93)
( 17,480)
( 13,095)
( 8,740)
168
4,850
1.57
2,885
2,165
1,440
( 426.7)
( 21,570)
( 3.98)
( 12,830)
( 9,630)
( 6,405)
192
4,245
2.05
2,210
1,655
1,105
( 487.7)
( 18,880)
( 5.20)
( 9,830)
( 7,360)
( 4,915)
216
3,770
2.59
1,745
1,310
870
( 548.6)
( 16,765)
( 6.58)
( 7,760)
( 5,825)
( 3,865)
240
3,395
3.20
1,410
1,060
705
( 609.6)
( 15,100)
( 8.13)
( 6,270)
( 4,715)
( 3,135)
Table 34- MT-100 Allowable Column Loads 1, 2, 6, 7, 8, 9
Unbraced Height in( cm)
2023
Max Allowable Load at Girder Face lbs( N)
K = 0.65 lbs( N)
Maximum Column Load Applied at C. G.
K = 0.80 lbs( N)
K = 1.0 lbs( N)
K = 1.2 lbs( N)
24
25,820
67,280
67,280
67,280
67,280
( 61.0)
( 114,850)
( 299,270)
( 299,270)
( 299,270)
( 299,270)
36
25,740
67,280
67,280
67,280
67,280
( 91.4)
( 114,495)
( 299,270)
( 299,270)
( 299,270)
( 299,270)
48
25,670
67,280
67,280
67,280
67,280
( 121.9)
( 114,185)
( 299,270)
( 299,270)
( 299,270)
( 299,270)
60
25,490
67,280
67,280
67,280
67,280
( 152.4)
( 113,380)
( 299,270)
( 299,270)
( 299,270)
( 299,270)
72
25,320
67,280
67,280
67,280
65,740
( 182.9)
( 112,625)
( 299,270)
( 299,270)
( 299,270)
( 292,420)
84
25,150
67,280
67,280
66,580
60,480
( 213.4)
( 111,870)
( 299,270)
( 299,270)
( 296,160)
( 269,025)
96
24,900
67,280
67,280
62,275
54,930
( 243.8)
( 110,760)
( 299,270)
( 299,270)
( 277,010)
( 244,335)
108
24,300
67,280
65,740
57,730
49,250
( 274.3)
( 108,090)
( 299,270)
( 292,420)
( 256,790)
( 219,070)
120
23,560
67,280
62,275
53,045
43,600
( 304.8)
( 104,795)
( 299,270)
( 277,010)
( 235,950)
( 193,940)
144
21,950
63,155
54,390
43,600
32,875
( 365.8)
( 97,635)
( 280,925)
( 241,935)
( 193,940)
( 146,230)
168
20,200
57,265
47,360
34,580
24,170
( 426.7)
( 89,850)
( 254,725)
( 210,665)
( 153,815)
( 107,510)
192
18,350
51,150
39,910
26,650
18,505
( 487.7)
( 81,620)
( 227,525)
( 177,525)
( 118,540)
( 82,310)
216
16,460
45,000
32,875
21,055
14,620
( 548.6)
( 73,215)
( 200,165)
( 146,230)
( 93,655)
( 65,030)
240
14,580
39,000
26,650
17,055
11,845
( 609.6)
( 64,850)
( 173,475)
( 118,540)
( 75,860)
( 52,685)
Notes: 1. Loads are based on ICC-ES ESR-5019 and AISI S100-16, the North American
Specification for the Design of Cold-Formed Steel Structural Members. 2. Safety factors for flexure and compression are 1.67 and 1.80, respectively. 3. Allowable beam loads in table are given in total uniform load( W * Span) and based on a uniformly loaded condition with simply supported ends. For other loading and support conditions, see page 32 for applicable load and deflection modification factors.
4. Beams spans in table are assumed to be sufficiently laterally braced. Unbraced spans may reduce beam load carrying capacity. See page 49 for reduction factors for unbraced conditions.
5. Profile weight, 10.0 lbs / ft( 145.99 N / m), must be deducted from allowable beam load values.
6. Multiply tabulated load values by 1.5 to obtain Load and Resistance Factor
Design( LRFD) values. 7. C. G. is the‘ Center of Gravity’ of the cross section. 8. ** indicates KL / r for compression exceeds 200. 9. Maximum allowable load at girder face assumes K value of 0.8.
150
( 5-7 / 8“)
( 3 / 16“)
4
( 1-15 / 16“) 50( 3-15 / 16“)
100
∅ 9.2
( 3 / 8“)
50
( 1-15 / 16“)
mm( in)
50
( 1-15 / 16“)
50
( 1-15 / 16“)
40
