Modular Support Systems Technical Guide, Edition 1
3.0 MODULAR SUPPORT SYSTEM 3.2.11 MT MEDIA FIXATION MP-US OC

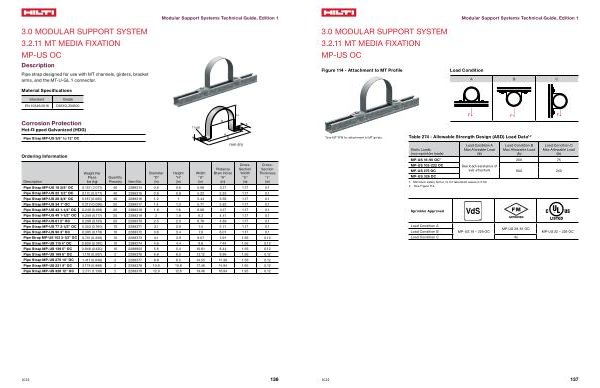

Figure 114- Attachment to MT Profile
Load Condition
A B C
� � �
* Use MT-TFB for attachment to MT girder.
Table 274- Allowable Strength Design( ASD) Load Data 1, 2
Static Loads( non-sprinkler loads)
MP-US 18-90 OC " MP-US 102-222 OC MP-US 275 OC MP-US 326 OC
Load Condition A Max Allowable Load( lb)
See load resistance of sub-structure
1. Minimum safety factor, Ω, for tabulated values is 3.50. 2. See Figure 114.
Load Condition B Max Allowable Load( lb)
Load Condition C Max Allowable Load( lb)
300 75
800 240
Sprinkler Approved |
|
|
|
|
Load Condition A
Load Condition B
Load Condition C
|
MP-US 18 – 326 OC |
MP-US 28-61 OC
No
|
MP-US 22 – 326 OC |
2023
137
