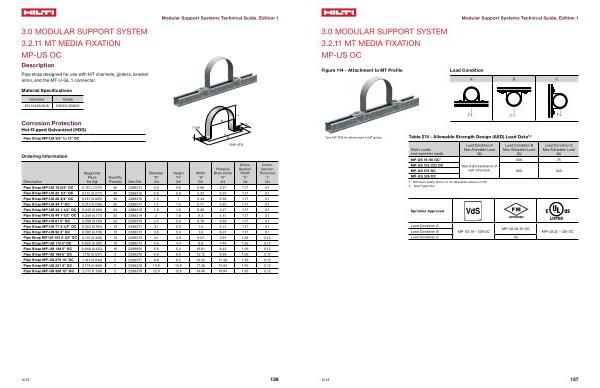

3.0 MODULAR SUPPORT SYSTEM 3.2.11 MT MEDIA FIXATION MP-US OC
Description
Pipe strap designed for use with MT channels, girders, bracket arms, and the MT-U-GL 1 connector.
Material Specifications
Standard EN 10346:2016
Grade DX51D-ZM300
|
Corrosion Protection
Hot-Dipped Galvanized( HDG)
|
����� |
� |
� |
Pipe Strap MP-US 3 / 8 " to 12 " OC |
� |
� �
mm( in)
|
Ordering Information |
|
|
Description
Weight Per Piece lbs( kg)
Quantity Piece( s) Item No.
Diameter“ D”( in)
Height“ H”( in)
Width“ B”( in)
Distance Btwn Holes“ A”( in)
Cross- Section Width“ b”( in)
Pipe Strap MP-US 18 3 / 8 " OC 0.157( 0.071) 40 2288314 0.8 0.6 5.06 3.17 1.17 0.1 Pipe Strap MP-US 22 1 / 2 " OC 0.170( 0.077) 40 2288315 0.9 0.8 5.22 3.33 1.17 0.1 Pipe Strap MP-US 28 3 / 4 " OC 0.187( 0.085) 40 2288316 1.2 1 5.44 3.56 1.17 0.1 Pipe Strap MP-US 34 1 " OC 0.212( 0.096) 20 2288317 1.4 1.3 5.71 3.82 1.17 0.1 Pipe Strap MP-US 43 1-1 / 4 " OC 0.240( 0.109) 20 2288318 1.8 1.6 6.06 4.17 1.17 0.1 Pipe Strap MP-US 49 1-1 / 2 " OC 0.258( 0.117) 20 2288319 2 1.8 6.3 4.41 1.17 0.1 Pipe Strap MP-US 61 2 " OC 0.298( 0.135) 20 2288370 2.5 2.3 6.78 4.89 1.17 0.1 Pipe Strap MP-US 77 2-1 / 2 " OC 0.353( 0.160) 10 2288371 3.1 2.9 7.4 5.51 1.17 0.1 Pipe Strap MP-US 90 3 " OC 0.395( 0.179) 10 2288372 3.6 3.4 7.9 6.01 1.17 0.1
Pipe Strap MP-US 102 3-1 / 2 " OC 0.741( 0.336) 10 2288373 4.1 3.9 9.07 6.91 1.56 0.12 Pipe Strap MP-US 115 4 " OC 0.809( 0.367) 10 2288374 4.6 4.4 9.6 7.44 1.56 0.12 Pipe Strap MP-US 139 5 " OC 0.948( 0.430) 10 2288950 5.6 5.4 10.61 8.44 1.56 0.12 Pipe Strap MP-US 169 6 " OC 1.118( 0.507) 2 2288376 6.8 6.5 12.12 9.96 1.56 0.12 Pipe Strap MP-US 275 10 " OC 1.411( 0.640) 2 2288377 8.8 8.5 14.55 12.38 1.56 0.12 Pipe Strap MP-US 221 8 " OC 2.178( 0.988) 2 2288378 10.9 10.6 17.46 14.94 1.95 0.12 Pipe Strap MP-US 326 12 " OC 2.511( 1.139) 2 2288379 12.9 12.6 19.46 16.94 1.95 0.12
