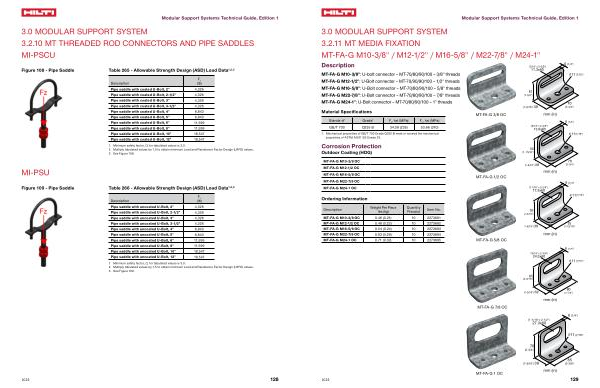

3.0 MODULAR SUPPORT SYSTEM 3.2.10 MT THREADED ROD CONNECTORS AND PIPE SADDLES MI-PSCU
Figure 108 - Pipe Saddle Table 265 - Allowable Strength Design ( ASD ) Load Data 1 , 2 , 3
Description
F z
( lb )
Pipe saddle with coated U-Bolt , 2 " 4,326 Pipe saddle with coated U-Bolt , 2-1 / 2 " 4,326 Pipe saddle with coated U-Bolt , 3 " 4,326 Pipe saddle with coated U-Bolt , 3-1 / 2 " 4,326 Pipe saddle with coated U-Bolt , 4 " 8,843 Pipe saddle with coated U-Bolt , 5 " 8,843 Pipe saddle with coated U-Bolt , 6 " 11,599 Pipe saddle with coated U-Bolt , 8 " 11,599 Pipe saddle with coated U-Bolt , 10 " 18,547 Pipe saddle with coated U-Bolt , 12 " 18,547
1 . Minimum safety factor , Ω , for tabulated values is 3.0 . 2 . Multiply tabulated values by 1.5 to obtain minimum Load and Resistance Factor Design ( LRFD ) values . 3 . See Figure 108 .
MI-PSU
Figure 109 - Pipe Saddle Table 266 - Allowable Strength Design ( ASD ) Load Data 1 , 2 , 3
Description
F z
( lb )
Pipe saddle with uncoated U-Bolt , 2 " 4,326 Pipe saddle with uncoated U-Bolt , 2-1 / 2 " 4,326 Pipe saddle with uncoated U-Bolt , 3 " 4,326 Pipe saddle with uncoated U-Bolt , 3-1 / 2 " 4,326 Pipe saddle with uncoated U-Bolt , 4 " 8,843 Pipe saddle with uncoated U-Bolt , 5 " 8,843 Pipe saddle with uncoated U-Bolt , 6 " 11,599 Pipe saddle with uncoated U-Bolt , 8 " 11,599 Pipe saddle with uncoated U-Bolt , 10 " 18,547 Pipe saddle with uncoated U-Bolt , 12 " 18,547
1 . Minimum safety factor , Ω , for tabulated values is 3.0 . 2 . Multiply tabulated values by 1.5 to obtain minimum Load and Resistance Factor Design ( LRFD ) values . 3 . See Figure 109 .
