Modular Support Systems Technical Guide , Edition 1

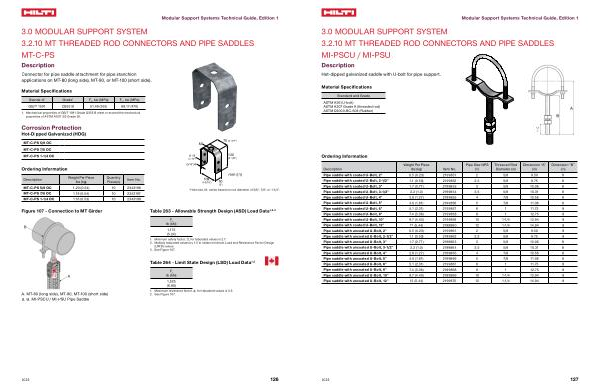

3.0 MODULAR SUPPORT SYSTEM 3.2.10 MT THREADED ROD CONNECTORS AND PIPE SADDLES MI-PSCU / MI-PSU
Description
Hot-dipped galvanized saddle with U-bolt for pipe support .
Material Specifications
Standard and Grade
ASTM A36 ( U-bolt ) ASTM A307 Grade A ( threaded rod ) ASTM D2000-BC-608 ( Rubber )
Ordering Information
Description
Weight Per Piece lbs ( kg ) Item No .
Pipe Size NPS ( in )
Threaded Rod Diameter ( in )
Dimension “ A ” ( in )
Dimension “ B ” ( in )
Pipe saddle with coated U-Bolt , 2 " 0.5 ( 0.23 ) 2199851 2 5 / 8 9.50 8 Pipe saddle with coated U-Bolt , 2-1 / 2 " 1.1 ( 0.50 ) 2199852 2.5 5 / 8 9.75 8
Pipe saddle with coated U-Bolt , 3 " 1.7 ( 0.77 ) 2199853 3 5 / 8 10.06 8 Pipe saddle with coated U-Bolt , 3-1 / 2 " 2.2 ( 1.0 ) 2199854 3.5 5 / 8 10.31 8 Pipe saddle with coated U-Bolt , 4 " 2.8 ( 1.27 ) 2199855 4 7 / 8 10.56 8 Pipe saddle with coated U-Bolt , 5 " 4.0 ( 1.81 ) 2199856 5 7 / 8 11.06 8 Pipe saddle with coated U-Bolt , 6 " 5.1 ( 2.31 ) 2199857 6 1 11.75 8 Pipe saddle with coated U-Bolt , 8 " 7.4 ( 3.36 ) 2199858 8 1 12.75 8 Pipe saddle with coated U-Bolt , 10 " 9.7 ( 4.40 ) 2199859 10 1-1 / 4 13.94 8 Pipe saddle with coated U-Bolt , 12 " 12 ( 5.44 ) 2199860 12 1-1 / 4 14.94 8 Pipe saddle with uncoated U-Bolt , 2 " 0.5 ( 0.23 ) 2199861 2 5 / 8 9.50 8 Pipe saddle with uncoated U-Bolt , 2-1 / 2 " 1.1 ( 0.50 ) 2199862 2.5 5 / 8 9.75 8 Pipe saddle with uncoated U-Bolt , 3 " 1.7 ( 0.77 ) 2199863 3 5 / 8 10.06 8 Pipe saddle with uncoated U-Bolt , 3-1 / 2 " 2.2 ( 1.0 ) 2199864 3.5 5 / 8 10.31 8 Pipe saddle with uncoated U-Bolt , 4 " 2.8 ( 1.27 ) 2199865 4 7 / 8 10.56 8 Pipe saddle with uncoated U-Bolt , 5 " 4.0 ( 1.81 ) 2199866 5 7 / 8 11.06 8 Pipe saddle with uncoated U-Bolt , 6 " 5.1 ( 2.31 ) 2199867 6 1 11.75 8 Pipe saddle with uncoated U-Bolt , 8 " 7.4 ( 3.36 ) 2199868 8 1 12.75 8 Pipe saddle with uncoated U-Bolt , 10 " 9.7 ( 4.40 ) 2199869 10 1-1 / 4 13.94 8 Pipe saddle with uncoated U-Bolt , 12 " 12 ( 5.44 ) 2199870 12 1-1 / 4 14.94 8
