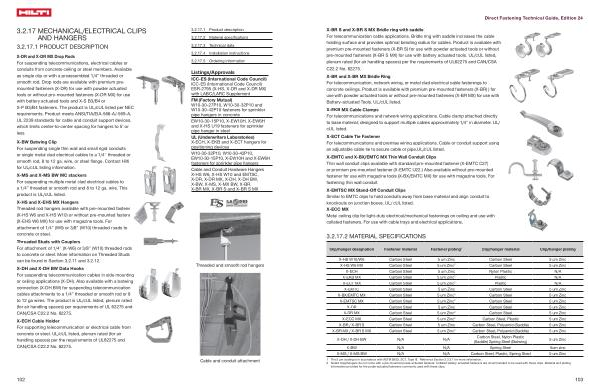

Direct Fastening Technical Guide , Edition 24
X-BR S and X-BR S MX Bridle ring with saddle For telecommunication cable applications . Bridle ring with saddle increases the cable holding surface and provides optimal bending radius for cables . Product is available with premium pre-mounted fasteners ( X-BR S ) for use with powder actuated tools or without pre-mounted fasteners ( X-BR S MX ) for use with battery actuated tools . UL / cUL listed , plenum rated ( for air handling spaces ) per the requirements of UL62275 and CAN / CSA C22.2 No . 62275 .
X-BR and X-BR MX Bridle Ring For telecommunication , network wiring , or metal clad electrical cable fastenings to concrete ceilings . Product is available with premium pre-mounted fasteners ( X-BR ) ) for use with powder actuated tools or without pre-mounted fasteners ( X-BR MX ) for use with Battery-actuated Tools . UL / cUL listed .
X-EKB MX Cable Clamps For telecommunications and network wiring applications . Cable clamp attached directly to base material ; designed to support multiple cables approximately 1 / 4 " in diameter . UL / cUL listed .
X-ECT Cable Tie Fastener For telecommunications and premise wiring applications . Cable or conduit support using an adjustable cable tie to secure cable or pipe . UL / cUL listed .
X-EMTC and X-BX / EMTC MX Thin Wall Conduit Clips Thin wall conduit clips available with standard pre-mounted fastener ( X-EMTC C27 ) or premium pre-mounted fastener ( X-EMTC U22 .) Also available without pre-mounted fastener for use with magazine tools ( X-BX / EMTC MX ) for use with magazine tools . For fastening thin wall conduit .
X-EMTSC MX Stand-Off Conduit Clips Similar to EMTC clips to hold conduits away from base material and align conduit to knockouts on junction boxes . UL / cUL listed . X-ECC MX Metal ceiling clip for light-duty electrical / mechanical fastenings on ceiling and use with collated fasteners . For use with cable trays and electrical applications .
3.2.17.2 MATERIAL SPECIFICATIONS
Clip / hanger designation Fastener material Fastener plating 1 Clip / hanger material Clip / hanger plating
X-HS W10 / W6 Carbon Steel 5 um Zinc Carbon Steel 5 um Zinc X-HS W6 MX Carbon Steel 5 um Zinc 2 Carbon Steel 5 um Zinc
X-ECH Carbon Steel 5 um Zinc Nylon Plastic N / A X-EKB MX Carbon Steel 5 um Zinc 2 Plastic N / A X-ECT MX Carbon Steel 5 um Zinc 2 Plastic N / A X-EMTC Carbon Steel 5 um Zinc Carbon Steel 5 um Zinc X-BX / EMTC MX Carbon Steel 5 um Zinc 2 Carbon Steel 5 um Zinc X-EMTSC MX Carbon Steel 5 um Zinc 2 Carbon Steel 5 um Zinc
X-DR Carbon Steel 5 um Zinc Carbon Steel 5 um Zinc X-DR MX Carbon Steel 5 um Zinc 2 Carbon Steel 5 um Zinc X-ECC MX Carbon Steel 5 um Zinc 2 Carbon Steel , Plastic 5 um Zinc
X-BR / X-BR S Carbon Steel 5 um Zinc Carbon Steel , Polyamid ( Saddle ) 5 um Zinc X-BR MX / X-BR S MX Carbon Steel 5 um Zinc 2 Carbon Steel , Polyamid ( Saddle ) 5 um Zinc
X-DH / X-DH BW N / A N / A
Carbon Steel , Nylon Plastic ( Saddle ) Spring Steel ( Batwing )
5 um Zinc
X-BW N / A N / A Spring Steel 5um zinc X-MS / X-MS BW N / A N / A Carbon Steel , Plastic , Spring Steel 5 um Zinc
1 The 5 ยต m coating is in accordance with ASTM B633 , SC1 , Type III . Reference Section 2.3.3.1 for more information . 2 Noted clips / hangers do not come with a pre-mounted power-actuated fastener . Collated battery actuated fasteners are recommended to be used with those clips . Material and plating information provided for the poder-actuated fasteners commonly used with these clips .
