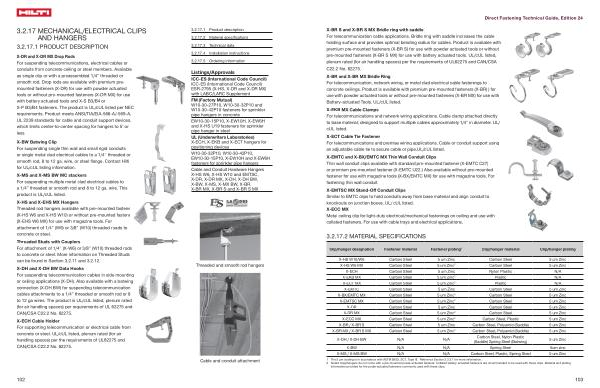

3.2.17 MECHANICAL / ELECTRICAL CLIPS AND HANGERS
3.2.17.1 PRODUCT DESCRIPTION
X-DR and X-DR MX Drop Rods For suspending telecommunications , electrical cables or conduits from concrete ceiling or steel members . Available as single clip or with a preassembled 1 / 4 ’’ threaded or smooth rod . Drop rods are available with premium premounted fasteners ( X-DR ) for use with powder actuated tools or without pre-mounted fasteners ( X-DR MX ) for use with battery actuated tools and X-S B3 / B4 or X-P B3 / B4 fasteners . The product is UL / cUL listed per NEC requirements . Product meets ANSI / TIA / EIA-568-A / -569-A , UL 2239 standards for cable and conduit support devices , which limits center-to-center spacing for hangers to 5 ’ or less .
X-BW Batwing Clip For suspending single thin wall and small rigid conduits or single metal clad electrical cables to a 1 / 4 ’’ threaded or smooth rod , 8 to 12 ga . wire , or steel flange . Contact Hilti for UL / cUL listing information .
X-MS and X-MS BW MC stackers For suspending multiple metal clad electrical cables to a 1 / 4 ’’ threaded or smooth rod and 8 to 12 ga . wire . This product is UL / cUL listed .
3.2.17.1 Product description 3.2.17.2 Material specifications 3.2.17.3 Technical data 3.2.17.4 Installation instructions 3.2.17.5 Ordering information
Listings / Approvals
ICC-ES ( International Code Council ) ICC-ES ( International Code Council ) ESR-2795 ( X-HS , X-DR and X-DR MX ) with LABC / LARC Supplement
FM ( Factory Mutual ) W10-30-27P10 , W10-30-32P10 and W10-30-42P10 fasteners for sprinkler pipe hangers in concrete
EW10-30-15P10 , X-EW10H , X-EW6H and X-HS U19 fasteners for sprinkler pipe hanger in steel
UL ( Underwriters Laboratories ) X-ECH , X-EKB and X-ECT hangers for positioning devices
W10-30-32P10 , W10-30-42P10 , EW10-30-15P10 , X-EW10H and X-EW6H fasteners for sprinkler pipe hangers
Cable and Conduit Hardware Hangers X-HS W6 , X-HS W10 and EMTSC , X-DR , X-DR MX , X-DH , X-DH BW , X-BW , X-MS , X-MX BW , X-BR , X-BR MX , X-BR S and X-BR S MX
X-HS and X-EHS MX Hangers Threaded rod hangers available with pre-mounted fasteners ( X-HS W6 and X-HS W10 ) or without pre-mounted fasteners ( X-EHS W6 MX ) for use with magazine tools . For attachment of 1 / 4 ’’ ( W6 ) or 3 / 8 ’’ ( W10 ) threaded roads to concrete or steel .
Threaded Studs with Couplers For attachment of 1 / 4 ’’ ( X-W6 ) or 3 / 8 ’’ ( W10 ) threaded rods to concrete or steel . More information on Threaded Studs can be found in Section 3.2.11 and 3.2.12 .
X-DH and X-DH BW Data Hooks For suspending telecommunication cables in side mounting or ceiling applications ( X-DH ). Also available with a batwing connection ( X-DH BW ) for suspending telecommunication cables attachments to a 1 / 4 ’’ threaded or smooth rod or 8 to 12 ga wires . The product is UL / cUL listed , plenum rated ( for air handling spaces ) per requirements of UL 62275 and CAN / CSA C22.2 No . 62275 .
Threaded and smooth rod hangers
X-ECH Cable Holder For supporting telecommunication or electrical cable from concrete or steel . UL / cUL listed , plenum rated ( for air handling spaces ) per the requirements of UL62275 and CAN / CSA C22.2 No . 62275 .
Cable and conduit attachment
