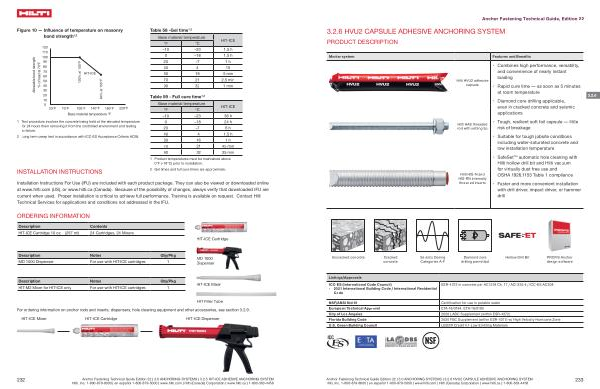

3.2.6 HVU2 CAPSULE ADHESIVE ANCHORING SYSTEM
PRODUCT DESCRIPTION
Anchor Fastening Technical Guide , Edition 22
Mortar system Features and Benefits
Hilti HVU2 adhesive capsule
Hilti HAS threaded rod with setting tip
Hilti HIS-N and HIS-RN internally threaded inserts
• Combines high performance , versatility , and convenience of nearly instant loading
• Rapid cure time — as soon as 5 minutes at room temperature
• Diamond core drilling applicable , even in cracked concrete and seismic applications
• Tough , resilient soft foil capsule — little risk of breakage
• Suitable for tough jobsite conditions including water-saturated concrete and low installation temperature
• SafeSet TM automatic hole cleaning with Hilti hollow drill bit and Hilti vacuum for virtually dust free use and OSHA 1926.1153 Table 1 compliance
• Faster and more convenient installation with drill driver , impact driver , or hammer drill
3.2.6
Uncracked concrete |
Cracked concrete |
Seismic Desing Categories A-F |
Diamond core drilling permitted |
Hollow Drill Bit |
PROFIS Anchor design software |
Listings / Approvals |
|
|
|
|
|
ICC-ES ( International Code Council ) - 2021 International Building Code / International Residential
Code
ESR-4372 in concrete per ACI 318 Ch . 17 / ACI 355.4 / ICC-ES AC308
NSF / ANSI Std 61 |
Certification for use in potable water |
European Technical Approval |
ETA-18 / 0184 , ETA-18 / 0185 |
City of Los Angeles |
2020 LABC Supplement ( within ESR-4372 ) |
Florida Building Code |
2020 FBC Supplement ( within ESR-4372 ) w / High Velocity Hurricane Zone |
U . S . Green Building Council |
LEED ® Credit 4.1-Low Emitting Materials |
Anchor Fastening Technical Guide Edition 22 | 3.0 ANCHORING SYSTEMS | 3.2.6 HVU2 CAPSULE ADHESIVE ANCHORING SYSTEM Hilti , Inc . 1-800-879-8000 | en español 1-800-879-5000 | www . hilti . com | Hilti ( Canada ) Corporation | www . hilti . ca | 1-800-363-4458
233
