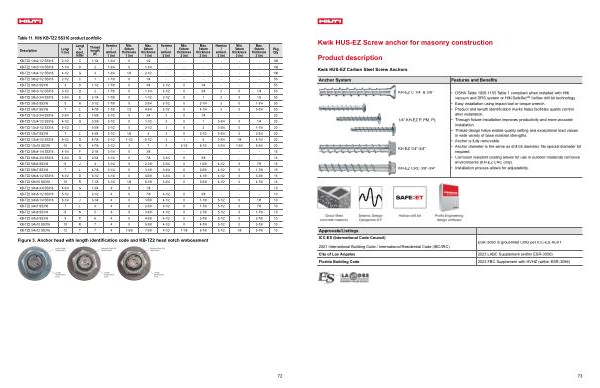

Masonry Anchor Strength Design Guide 2024
7.5 KWIK HUS-EZ SCREW ANCHOR FOR MASONRY CONSTRUCTION
PRODUCT DESCRIPTION
KWIK HUS-EZ Carbon Steel Screw Anchors Anchor System
Features and Benefits
KH-EZ C 1 / 4 ” & 3 / 8 ”
• OSHA Table 1926.1153 Table 1 compliant when installed with Hilti vacuum and DRS system or Hilti SafeSetTM hollow drill bit technology .
• Easy installation using impact tool or torque wrench .
• Product and length identification marks helps facilitate quality control after installation .
1 / 4 ” KH-EZ P , PM , PL
• Through fixture installation improves productivity and more accurate installation .
• Thread design helps enable quality setting and exceptional load values in wide variety of base material strengths .
• Anchor is fully removable .
• Anchor diameter is the same as drill bit diameter . No special diameter bit required .
KH EZ 1 / 4 " -3 / 4 "
• Corrosion resistant coating allows for use in outdoor moderate corrosive environments ( KH-EZ CRC only ).
• Installation process allows for adjustability .
|
|
|
KH-EZ CRC 3 / 8 " -3 / 4 " |
Grout-filled concrete masonry |
|
|
|
Seismic Design Categories A-F |
Hollow drill bit |
Profis Engineering design software |
Approvals / Listings ICC-ES ( International Code Council )
• 2021 International Building Code / International Residential Code ( IBC / IRC )
ESR-3056 in grout-filled CMU per ICC-ES AC01
City of Los Angeles 2023 LABC Supplement ( within ESR-3056 ) Florida Building Code 2023 FBC Supplement with HVHZ ( within ESR-3056 )
Masonry Fastening Technical Guide Edition 24 | 7.5 KWIK HUS-EZ SCREW ANCHOR Hilti , Inc . 1-800-879-8000 | en español 1-800-879-5000 | www . hilti . com | Hilti ( Canada ) Corporation | www . hilti . ca | 1-800-363-4458
73
