Post-Installed Anchors in Masonry US English

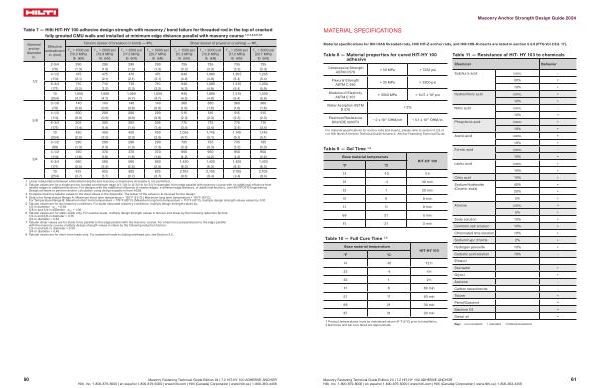

Table 7 — Hilti HIT-HY 100 adhesive design strength with masonry / bond failure for threaded rod in the top of cracked fully grouted CMU walls and installed at minimum edge distance parallel with masonry course 1 , 2 , 3 , 4 , 5 , 6 , 7 , 8

Nominal anchor diameter in .

1 / 2

5 / 8

3 / 4

Effective embedment in . ( mm ) f ́m = 1500 psi ( 10.3 MPa ) lb ( kN )

Tension ( lesser of breakout or bond ) — ΦN n

f ́m = 2000 psi ( 13.8 MPa ) lb ( kN ) f ́m = 2500 psi ( 17.2 MPa ) lb ( kN ) f ́m = 3000 psi ( 20.7 MPa ) lb ( kN ) f ́m = 1500 psi ( 10.3 MPa ) lb ( kN )

Shear ( lesser of pryout or crushing ) — ΦV n

f ́m = 2000 psi ( 13.8 MPa ) lb ( kN ) f ́m = 2500 psi ( 17.2 MPa ) lb ( kN ) f ́m = 3000 psi ( 20.7 MPa ) lb ( kN )

2-3 / 4	290	290	290	290	735	735	735	735
( 70 )	( 1.3 )	( 1.3 )	( 1.3 )	( 1.3 )	( 3.3 )	( 3.3 )	( 3.3 )	( 3.3 )
4-1 / 2	475	475	475	475	940	1,085	1,205	1,205
( 114 )	( 2.1 )	( 2.1 )	( 2.1 )	( 2.1 )	( 4.2 )	( 4.8 )	( 5.4 )	( 5.4 )
6-3 / 4	710	710	710	710	940	1,085	1,215	1,330
( 171 )	( 3.2 )	( 3.2 )	( 3.2 )	( 3.2 )	( 4.2 )	( 4.8 )	( 5.4 )	( 5.9 )
10	1,050	1,050	1,050	1,050	940	1,085	1,215	1,330
( 254 )	( 4.7 )	( 4.7 )	( 4.7 )	( 4.7 )	( 4.2 )	( 4.8 )	( 5.4 )	( 5.9 )
3-1 / 8	140	140	140	140	360	360	360	360
( 79 )	( 0.6 )	( 0.6 )	( 0.6 )	( 0.6 )	( 1.6 )	( 1.6 )	( 1.6 )	( 1.6 )
4-1 / 2	200	200	200	200	515	515	515	515
( 114 )	( 0.9 )	( 0.9 )	( 0.9 )	( 0.9 )	( 2.3 )	( 2.3 )	( 2.3 )	( 2.3 )
6-3 / 4	305	305	305	305	775	775	775	775
( 171 )	( 1.4 )	( 1.4 )	( 1.4 )	( 1.4 )	( 3.4 )	( 3.4 )	( 3.4 )	( 3.4 )
10	450	450	450	450	1,055	1,145	1,145	1,145
( 254 )	( 2.0 )	( 2.0 )	( 2.0 )	( 2.0 )	( 4.7 )	( 5.1 )	( 5.1 )	( 5.1 )
3-1 / 2	290	290	290	290	735	735	735	735
( 89 )	( 1.3 )	( 1.3 )	( 1.3 )	( 1.3 )	( 3.3 )	( 3.3 )	( 3.3 )	( 3.3 )
4-1 / 2	370	370	370	370	950	950	950	950
( 114 )	( 1.6 )	( 1.6 )	( 1.6 )	( 1.6 )	( 4.2 )	( 4.2 )	( 4.2 )	( 4.2 )
6-3 / 4	560	560	560	560	1,420	1,420	1,420	1,420
( 171 )	( 2.5 )	( 2.5 )	( 2.5 )	( 2.5 )	( 6.3 )	( 6.3 )	( 6.3 )	( 6.3 )
10	825	825	825	825	2,105	2,105	2,105	2,105
( 254 )	( 3.7 )	( 3.7 )	( 3.7 )	( 3.7 )	( 9.4 )	( 9.4 )	( 9.4 )	( 9.4 )

1 Linear interpolation between embedment depths and masonry compressive strengths is not permitted . 2 Tabular values are for a single anchor located at minimum edge of 1-3 / 4-in ( 2-3 / 4-in for 3 / 4-in diameter ) from edge parallel with masonry course with no additional influence from nearby edges or additional anchors . For designs with the additional influence of nearby edges , a different edge distance , or additional anchors , use Hilti PROFIS Engineering Design software or perform anchor calculation using design equations from AC58 . 3 Compare masonry tabular values to the steel values in the Appendix . The lesser of the values is to be used for the design . 4 Data is for Temperature Range A : Maximum short term temperature = 130 ° F ( 55 ° C ) | Maximum long term temperature = 110 ° F ( 43 ° C ).

For Temperature Range B : Maximum short term temperature = 176 ° F ( 80 ° C ) | Maximum long term temperature = 110 ° F ( 43 ° C ), multiply design strength values values by 0.91 . 5 Tabular values are for dry masonry conditions . For water saturated masonry conditions , multiply design strength values by :

1 / 2-in diameter - α sat

= 0.84 5 / 8-in and 3 / 4-in diameter - α sat

= 1.00

6 Tabular values are for static loads only . For seismic loads , multiply design strength values in tension and shear by the following reduction factors : 1 / 2-in and 5 / 8-in diameter = 0.75 3 / 4-in diameter = 0.64

7 Tabular shear values are for shear force parallel to the edge parallel with the masonry course . For shear force perpendicular to the edge parallel with the masonry course , multiply design strength values in shear by the following reduction factors : 1 / 2-in and 5 / 8-in . diameter = 0.50 3 / 4-in diameter = 0.46

8 Tabular values are for short term loads only . For sustained loads including overhead use , see Section 3.0 .

Post-Installed Anchors in Masonry US English | Page 60
