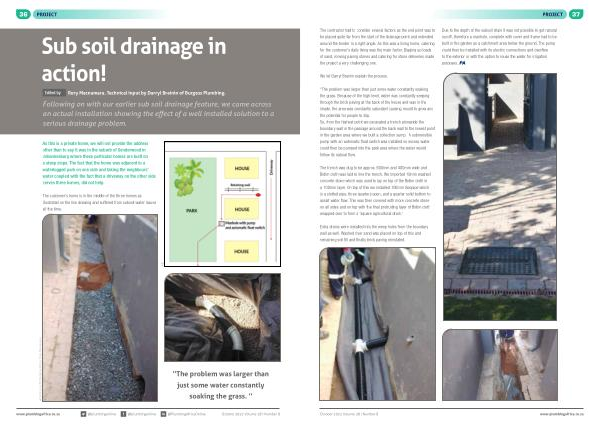

The contractor had to consider several factors as the end point was to be placed quite far from the start of the drainage point and extended around the border in a right angle . As this was a living home , catering for the customer ’ s daily living was the main factor . Digging up loads of sand , moving paving stones and catering for stone deliveries made the project a very challenging one .
Due to the depth of the subsoil drain it was not possible to get natural runoff , therefore a manhole , complete with cover and frame had to be built in the garden as a catchment area below the ground . The pump could then be installed with its electric connections and overflow to the exterior or with the option to reuse the water for irrigation purposes . PA
We let Darryl Brainin explain the process .
“ The problem was larger than just some water constantly soaking the grass . Because of the high level , water was constantly seeping through the brick paving at the back of the house and was in the shade , the area was constantly saturated causing mould to grow and the potential for people to slip . So , from the highest point we excavated a trench alongside the boundary wall in the passage around the back wall to the lowest point in the garden area where we built a collection sump . A submersible pump with an automatic float switch was installed so excess water could then be pumped into the park area where the water would follow its natural flow .
The trench was dug to be approx . 600mm and 400mm wide and Bidim cloth was laid to line the trench . We imported 19mm washed concrete stone which was used to lay on top of the Bidim cloth in a 100mm layer . On top of this we installed 100mm Geopipe which is a slotted pipe , three quarters open , and a quarter solid bottom to assist water flow . This was then covered with more concrete stone on all sides and on top with the final protruding layer of Bidim cloth wrapped over to form a ‘ square agricultural drain .’
Extra drains were installed into the weep holes from the boundary wall as well . Washed river sand was placed on top of this and remaining soil fill and finally brick paving reinstated .
