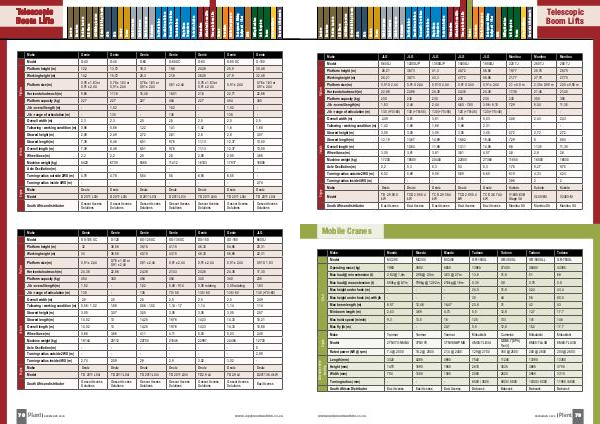

Plant Equipment and Hire Equipment Specs Handbook 2020

Make 78 Genie Genie Genie Genie Genie Genie Telescopic Boom Lifts Genie Model S-40 S-45 S-60 S-65 XC S-80 S-85 XC S-100 Platform height (m) 12,2 13,72 18,3 19,8 24,38 25,9 30,48 Working height (m) 14,2 15,72 20,3 21,8 26,38 27,9 32,48 Platform size (m) 0,76 x 1,83 or 0,91 x 2,44 0,76 x 1,83 or 0,91 x 2,44 0,76 x 1,83 or 0,91 x 2,44 0,91 x 2,44 0,76 x 1,83 or 0,91 x 2,44 0,91 x 2,44 0,76 x 1,83 or 0,91 x 2,44 Horizontal outreach (m) 9,65 11,18 15,48 16,51 21,8 22,71 22,86 Platform capacity (kg) 227 227 227 454 227 454 340 Jib - overall length (m) - 1,52 - 1,52 - 1,52 - Jib - range of articulation (m) - 135 - 135 - 135 - Overall width (m) 2,3 2,3 2,5 2,5 2,5 2,5 2,5 Tailswing - working condition (m) 0,86 0,86 1,22 1,41 1,42 1,6 1,68 Stowed height (m) 2,49 2,49 2,72 2,81 2,8 2,8 3,07 Stowed length (m) 7,39 8,48 8,51 9,76 11,13 12,37 13,00 Overall length (m) 7,39 8,48 8,51 9,76 11,13 12,37 13,00 Wheel base (m) 2,2 2,2 2,5 2,5 2,85 2,85 3,66 Machine weight (kg) 5420 6709 9385 11412 16103 17917 18008 Axle Oscillation (m) - - - - - - - Turning radius outside 2WS (m) 4,78 4,78 5,54 5,5 6,55 6,55 - Turning radius inside 4WS (m) - - - - - - 2,74 Make Deutz Deutz Deutz Deutz Deutz Deutz Deutz Model D 2011 L03i D 2011 L03i D 2011 L03i D 2011 L03i TD 2011 L04i TD 2011 L04i TD 2011 L04i South African distributor Goscor Access Solutions Goscor Access Solutions Goscor Access Solutions Goscor Access Solutions Goscor Access Solutions Goscor Access Solutions Goscor Access Solutions Make Genie Genie Genie Genie Genie Genie JLG Model SX-105 XC S-120 SX-125 XC SX-135 XC SX-150 SX-180 660SJ Platform height (m) 32 36,58 38,15 41,15 46,33 54,86 20,31 Working height (m) 34 38,58 40,15 43,15 48,33 56,69 22,31 Platform size (m) 0,91 x 2,44 0,76 x 1,83 or 0,91 x 2,44 0,91 x 2,44 0,91 x 2,44 0,91 x 2,44 0,91 x 2,44 0,91 X 1,83 Horizontal outreach (m) 24,38 22,86 24,38 27,43 24,38 24,38 17,30 Platform capacity (kg) 454 340 454 454 340 340 230 Jib - overall length (m) 1,52 - 1,52 5,49 - 9,14 3,05 rotating 3,05 rotating 1,83 Jib - range of articulation (m) 135 - 135 70 / 55 135 / 60 135 / 60 130 (+70/-60) Overall width (m) 2,5 2,5 2,5 2,5 2,5 2,5 2,49 Tailswing - working condition (m) 0,56 - 1,02 1,68 0,56 - 1,02 1,14 - 1,7 1,14 1,14 1,14 Stowed height (m) 3,05 3,07 3,05 3,05 3,05 3,05 2,57 Stowed length (m) 14,02 13 14,25 19,76 14,33 14,33 10,21 Overall length (m) 14,02 13 14,25 19,76 14,33 14,33 10,88 Wheel base (m) 3,66 3,66 4,11 4,11 5,03 5,03 2,48 Machine weight (kg) 18144 20112 20700 21546 22997 24494 12720 Axle Oscillation (m) - - - - - - 0 Turning radius outside 2WS (m) - - - - - - 2,89 Turning radius inside 4WS (m) 2,74 2,59 2,9 2,9 3,02 3,02 - Make Deutz Deutz Deutz Deutz Deutz Deutz Deutz Model TD 2011 L04i TD 2011 L04i TD 2011 L04i TD 2011 L04i TD2.9 L4 TD2.9 L4 D2011 36.4 kW South African distributor Goscor Access Solutions Goscor Access Solutions Goscor Access Solutions Goscor Access Solutions Goscor Access Solutions Goscor Access Solutions Eazi Access DECEMBER 2019 www.equipmentandhire.co.za

Plant Equipment and Hire Equipment Specs Handbook 2020 | Page 80
