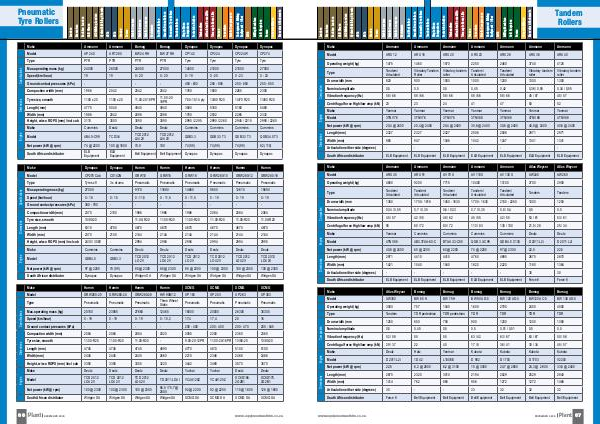

Plant Equipment and Hire Equipment Specs Handbook 2020

66 Make Ammann Ammann Bomag Bomag Dynapac Dynapac Dynapac Dynapac Model AP 240 ART 280 BW 24 RH BW 27 RH CP142 CP224 CP224W CP274 Type PTR PTR PTR PTR Tyre Tyre Tyre Tyre Max.operating mass (kg) 24000 28000 24000 27000 14000 21000 21000 27000 Speed (km/hour) 19 19 0 - 20 0 - 20 0 - 19 0 - 20 0 - 23 0 - 23 Ground contact pressures (kPa) - - - - 450 - 630 250 - 850 250 - 850 250 - 850 Compaction width (mm) 1986 2042 2042 2042 1760 1800 2265 2300 Tyre size, smooth 1100 x 20 1100 x 20 11,00-20 18PR 11,00 -20 18PR 7.50-15,14 ply 13/80 R20 14/70 R20 13/80 R20 Length (mm) 4775 5040 4940 4940 3580 5180 5180 5480 Width (mm) 1986 2042 2098 2098 1760 2032 2265 2332 Height, w/w.o ROPS (mm) /incl cab 3110 3000 3090 3090 2990 / 2295 2990 / 2260 2945 / 2215 2990 / 2260 Make Cummins Deutz Deutz Deutz Cummins Cummins Cummins Cummins TCD 2012 L04 2V QSB3.3 QSB3.3 T3 QSB3.3 T3 QSB3.4.5T3 Pneumatic Tyre Rollers Model 4B4.5-C99 TCD3.6 TCD 2012 L04 2V Net power (kW @ rpm) 74 @ 2200 100 @ 1600 74,9 100 74 (99) 74 (99) 74 (99) 82 (110) South African distributor ELB Equipment ELB Equipment Bell Equipment Bell Equipment Dynapac Dynapac Dynapac Dynapac Make Dynapac Dynapac Hamm Hamm Hamm Hamm Hamm Hamm Model CP275 Cab CS142N GRW10 GRW15 GRW18 GRW280-10 GRW280-12 GRW280-16 Type Tyres x9 3 x drums Pneumatic Pneumatic Pneumatic Pneumatic Pneumatic Pneumatic Max.operating mass (kg) 27000 - 9170 11680 14680 9650 12615 15690 Speed (km/hour) 0 - 18 0 - 15 0 - 11,5 0 - 11,5 0 - 11,5 0 - 19 0 - 19 0 - 19 Ground contact pressures (kPa) 380 - 780 - - - - - - - Compaction width (mm) 2370 2100 1986 1986 1986 2084 2084 2084 Tyre size, smooth 13/80-20 - 11.00-R20 11.00-R20 11.00-R20 11.00-R20 11.00-R20 11.00-R20 Length (mm) 5310 4780 4670 4670 4670 4670 4670 4670 Width (mm) 2370 2100 2144 2144 2144 2144 2144 2144 Height, w/w.o ROPS (mm) /incl cab 2430 / 3080 - 2994 2994 2994 2994 2994 2995 Make Cummins Cummins Deutz Deutz Deutz Deutz Deutz Deutz Model QSB4,5 QSB3.3 TCD 2012 LO 2V TCD 2012 LO4 2V TCD 2012 LO 2V TCD 2012 LO4 2V TCD 2012 LO4 2V TCD 2012 LO4 2V Net power (kW @ rpm) 97 @ 2200 74 (99) 85 @ 2300 85 @ 2300 85 @ 2300 100 @ 2300 100 @ 2300 100 @ 2300 South African distributor Dynapac Dynapac Wirtgen SA Wirtgen SA Wirtgen SA Wirtgen SA Wirtgen SA Wirtgen SA Make Hamm Hamm Hamm Hamm XCMG XCMG XCMG XCMG Model GRW280-20 GRW280-24 GRW280-28 HW 90B/12 XP 163 XP 203 XP 263 XP 303 Pneumatic Pneumatic Pneumatic Pneumatic Type Pneumatic Pneumatic Pneumatic Three Wheel Static Max.operating mass (kg) 20150 23585 27660 12465 16000 20000 26300 30300 Speed (km/hour) 0 - 19 0 - 19 0 - 19 0 - 10,2 17,4 17,4 20 16 Ground contact pressures (kPa) - - - - 200 - 400 200 - 400 200 - 470 200 - 545 Compaction width (mm) 2084 2084 2084 2020 2055 2250 2360 2360 Tyre size, smooth 11.00-R20 11.00-R20 11.00-R20 - 9.00-20-12PR 11.00-20-16PR 13/80-20 13/80-20 Length (mm) 4745 4745 4745 4890 4770 4813 5100 5100 Width (mm) 2445 2445 2445 2660 2210 2346 2466 2466 Height, w/w.o ROPS (mm) /incl cab 3355 3355 3355 3220 3442 3469 3570 3570 Make Deutz Deutz Deutz Deutz Yuchai Yuchai Deutz Deutz Model TCD 2012 LO4 2V TCD 2012 LO4 2V TCD 2012 LO4 2V TD 2011 LO4 I YC4A125Z YC4A125Z SC8D156. 2G2B1 SC8D175. 2G2B1 Net power (kW @ rpm) 100 @ 2300 100 @ 2300 100 @ 2300 56,5 / 75,7 @ 2500 92 @ 2200 92 @ 2200 115 @ 1800 128 @ 1800 South African distributor Wirtgen SA Wirtgen SA Wirtgen SA Wirtgen SA XCMG SA XCMG SA XCMG SA XCMG SA DECEMBER 2019 www.equipmentandhire.co.za

Plant Equipment and Hire Equipment Specs Handbook 2020 | Page 68
