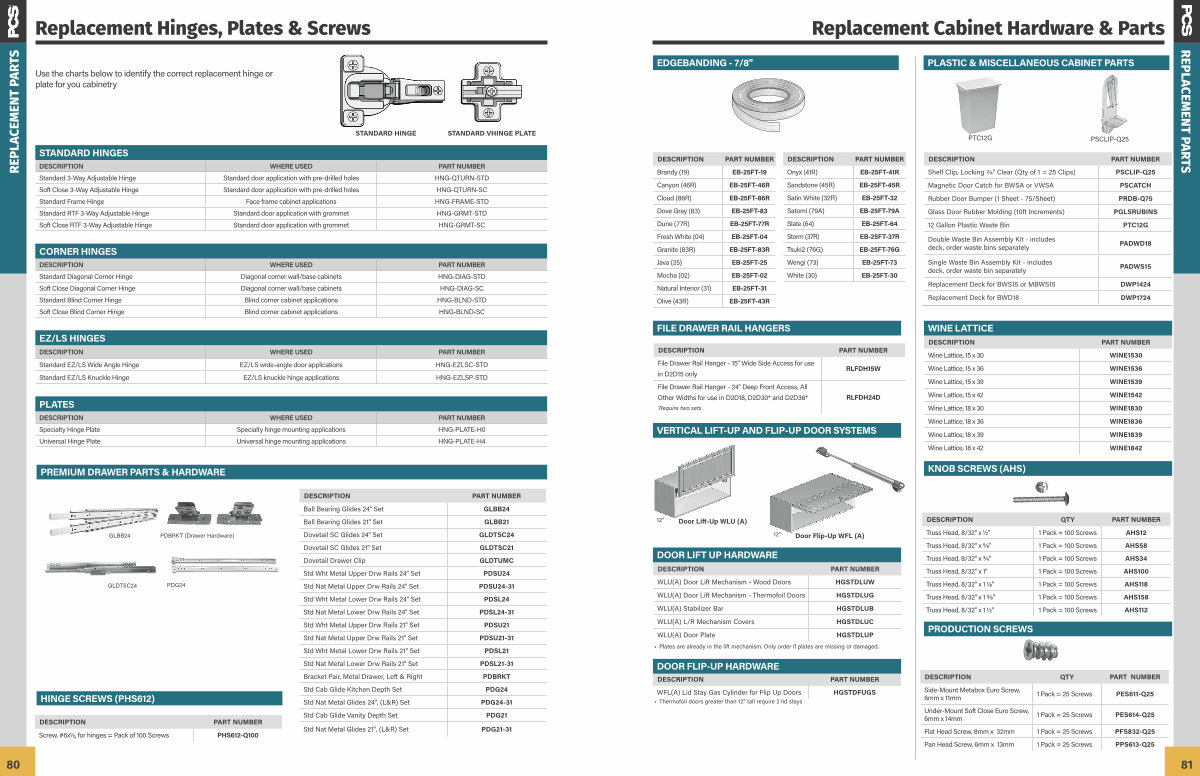

PCS Specification Guide | Page 81

Replacement Cabinet Hardware & Parts

EDGEBANDING- 7 / 8 "
DESCRIPTION
PART NUMBER
Brandy( 19)
EB-25FT-19
DESCRIPTION
Onyx( 41R)
PART NUMBER
EB-25FT-41R
PLASTIC & MISCELLANEOUS CABINET PARTS
PTC12G
PSCLIP-Q25
DESCRIPTION
PART NUMBER
Shelf Clip, Locking 3 / 4 " Clear( Qty of 1 = 25 Clips)
PSCLIP-Q25
REPLACEMENT PARTS
Canyon( 46R)
EB-25FT-46R
Sandstone( 45R)
EB-25FT-45R
Magnetic Door Catch for BWSA or VWSA
PSCATCH
Cloud( 86R)
EB-25FT-86R
Satin White( 32R)
EB-25FT-32
Rubber Door Bumper( 1 Sheet- 75 / Sheet)
PRDB-Q75
Dove Gray( 83)
EB-25FT-83
Satomi( 79A)
EB-25FT-79A
Glass Door Rubber Molding( 10ft Increments)
PGLSRUBINS
Dune( 77R)
EB-25FT-77R
Slate( 64)
EB-25FT-64
12 Gallon Plastic Waste Bin PTC12G
Fresh White( 04) Granite( 83R)
EB-25FT-04 EB-25FT-83R
Storm( 37R) Tsuki2( 76G)
EB-25FT-37R EB-25FT-76G
Double Waste Bin Assembly Kit- includes deck, order waste bins separately
PADWD18
Java( 25) Mocha( 02) Natural Interior( 31) Olive( 43R)
EB-25FT-25 EB-25FT-02 EB-25FT-31 EB-25FT-43R
Wengi( 73)
White( 30)
EB-25FT-73
EB-25FT-30
Single Waste Bin Assembly Kit- includes deck, order waste bin separately
Replacement Deck for BWS15 or MBWS15
Replacement Deck for BWD18
PADWS15
DWP1424
DWP1724
FILE DRAWER RAIL HANGERS
WINE LATTICE
DESCRIPTION
File Drawer Rail Hanger- 15 " Wide Side Access for use in D2D15 only
File Drawer Rail Hanger- 24 " Deep Front Access, All Other Widths for use in D2D18, D2D30 * and D2D36 *
PART NUMBER
RLFDH15W
RLFDH24D
DESCRIPTION Wine Lattice, 15 x 30 Wine Lattice, 15 x 36 Wine Lattice, 15 x 39 Wine Lattice, 15 x 42
PART NUMBER WINE1530 WINE1536 WINE1539 WINE1542
*
Require two sets
Wine Lattice, 18 x 30
WINE1830
VERTICAL LIFT-UP AND FLIP-UP DOOR SYSTEMS
Wine Lattice, 18 x 36 Wine Lattice, 18 x 39 Wine Lattice, 18 x 42
WINE1836 WINE1839 WINE1842
KNOB SCREWS( AHS)
12 " Door Lift-Up WLU( A) DESCRIPTION QTY PART NUMBER
12 " Door Flip-Up WFL( A) Truss Head, 8 / 32 " x 1 / 2 " 1 Pack = 100 Screws AHS12
DOOR LIFT UP HARDWARE
DESCRIPTION WLU( A) Door Lift Mechanism- Wood Doors WLU( A) Door Lift Mechanism- Thermofoil Doors WLU( A) Stabilizer Bar WLU( A) L / R Mechanism Covers WLU( A) Door Plate
PART NUMBER HGSTDLUW HGSTDLUG HGSTDLUB HGSTDLUC HGSTDLUP
Truss Head, 8 / 32 " x 5 / 8 "
1 Pack = 100 Screws
AHS58
Truss Head, 8 / 32 " x 3 / 4 "
1 Pack = 100 Screws
AHS34
Truss Head, 8 / 32 " x 1 "
1 Pack = 100 Screws
AHS100
Truss Head, 8 / 32 " x 1 1 / 8 "
1 Pack = 100 Screws
AHS118
Truss Head, 8 / 32 " x 1 5 / 8 "
1 Pack = 100 Screws
AHS158
Truss Head, 8 / 32 " x 1 1 / 2 "
1 Pack = 100 Screws
AHS112
PRODUCTION SCREWS
• Plates are already in the lift mechanism. Only order if plates are missing or damaged.
DOOR FLIP-UP HARDWARE
DESCRIPTION
WFL( A) Lid Stay Gas Cylinder for Flip Up Doors
• Thermofoil doors greater than 12 " tall require 2 lid stays
PART NUMBER HGSTDFUGS
DESCRIPTION QTY PART NUMBER
Side-Mount Metabox Euro Screw, 6mm x 11mm
Under-Mount Soft Close Euro Screw, 6mm x 14mm
1 Pack = 25 Screws PES611-Q25
1 Pack = 25 Screws PES614-Q25
Flat Head Screw, 8mm x 32mm 1 Pack = 25 Screws PFS832-Q25 Pan Head Screw, 6mm x 13mm 1 Pack = 25 Screws PPS613-Q25
