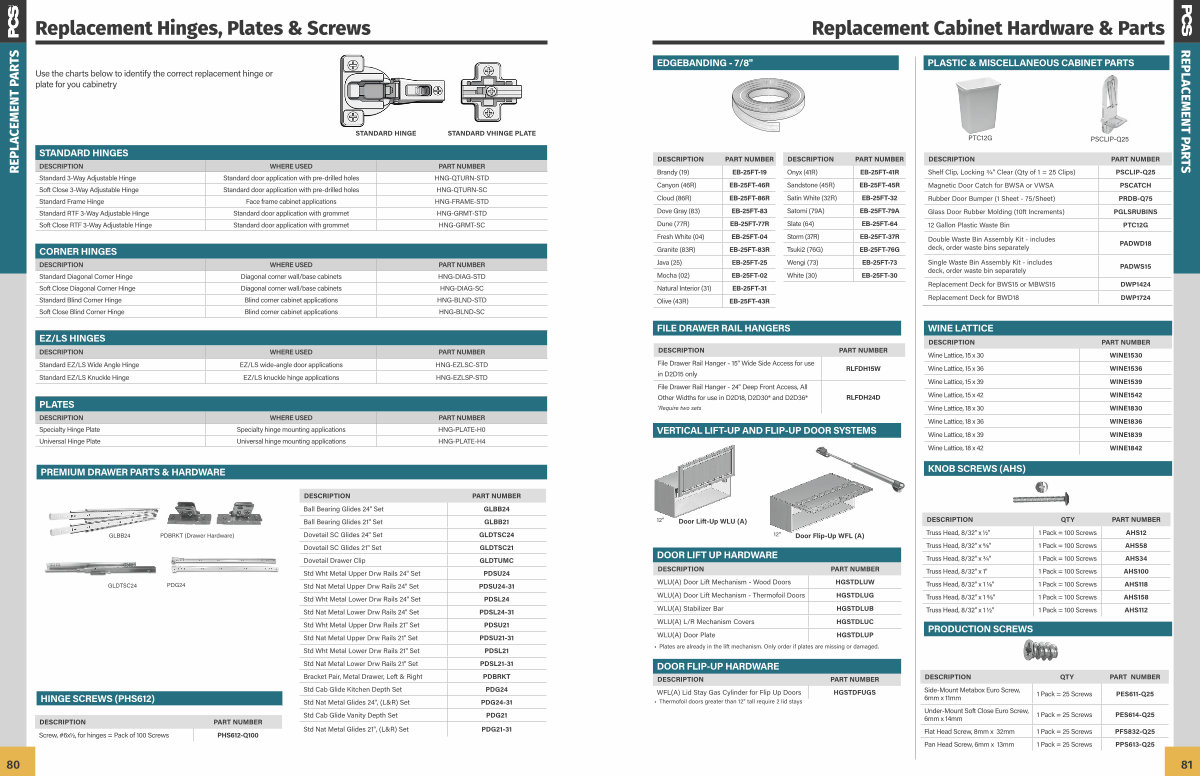

Replacement Hinges, Plates & Screws
REPLACEMENT PARTS
Use the charts below to identify the correct replacement hinge or plate for you cabinetry
STANDARD HINGES
STANDARD HINGE
DESCRIPTION WHERE USED PART NUMBER Standard 3-Way Adjustable Hinge Standard door application with pre-drilled holes HNG-QTURN-STD Soft Close 3-Way Adjustable Hinge Standard door application with pre-drilled holes HNG-QTURN-SC Standard Frame Hinge Face frame cabinet applications HNG-FRAME-STD Standard RTF 3-Way Adjustable Hinge Standard door application with grommet HNG-GRMT-STD Soft Close RTF 3-Way Adjustable Hinge Standard door application with grommet HNG-GRMT-SC
STANDARD VHINGE PLATE
CORNER HINGES
DESCRIPTION |
WHERE USED |
PART NUMBER |
Standard Diagonal Corner Hinge |
Diagonal corner wall / base cabinets |
HNG-DIAG-STD |
Soft Close Diagonal Corner Hinge |
Diagonal corner wall / base cabinets |
HNG-DIAG-SC |
Standard Blind Corner Hinge |
Blind corner cabinet applications |
HNG-BLND-STD |
Soft Close Blind Corner Hinge |
Blind corner cabinet applications |
HNG-BLND-SC |
EZ / LS HINGES
DESCRIPTION |
WHERE USED |
PART NUMBER |
Standard EZ / LS Wide Angle Hinge |
EZ / LS wide-angle door applications |
HNG-EZLSC-STD |
Standard EZ / LS Knuckle Hinge |
EZ / LS knuckle hinge applications |
HNG-EZLSP-STD |
PLATES
DESCRIPTION |
WHERE USED |
PART NUMBER |
Specialty Hinge Plate |
Specialty hinge mounting applications |
HNG-PLATE-H0 |
Universal Hinge Plate |
Universal hinge mounting applications |
HNG-PLATE-H4 |
PREMIUM DRAWER PARTS & HARDWARE
HINGE SCREWS( PHS612)
GLBB24 |
PDBRKT( Drawer Hardware) |
GLDTSC24 |
PDG24 |
DESCRIPTION |
PART NUMBER |
Screw, # 6x1 / 2, for hinges = Pack of 100 Screws |
PHS612-Q100 |
DESCRIPTION Ball Bearing Glides 24 " Set Ball Bearing Glides 21 " Set Dovetail SC Glides 24 " Set Dovetail SC Glides 21 " Set Dovetail Drawer Clip Std Wht Metal Upper Drw Rails 24 " Set Std Nat Metal Upper Drw Rails 24 " Set Std Wht Metal Lower Drw Rails 24 " Set Std Nat Metal Lower Drw Rails 24 " Set Std Wht Metal Upper Drw Rails 21 " Set Std Nat Metal Upper Drw Rails 21 " Set Std Wht Metal Lower Drw Rails 21 " Set Std Nat Metal Lower Drw Rails 21 " Set Bracket Pair, Metal Drawer, Left & Right Std Cab Glide Kitchen Depth Set Std Nat Metal Glides 24 ",( L & R) Set Std Cab Glide Vanity Depth Set Std Nat Metal Glides 21 ",( L & R) Set
PART NUMBER GLBB24 GLBB21 GLDTSC24 GLDTSC21 GLDTUMC PDSU24 PDSU24-31 PDSL24 PDSL24-31 PDSU21 PDSU21-31 PDSL21 PDSL21-31 PDBRKT PDG24 PDG24-31 PDG21 PDG21-31
