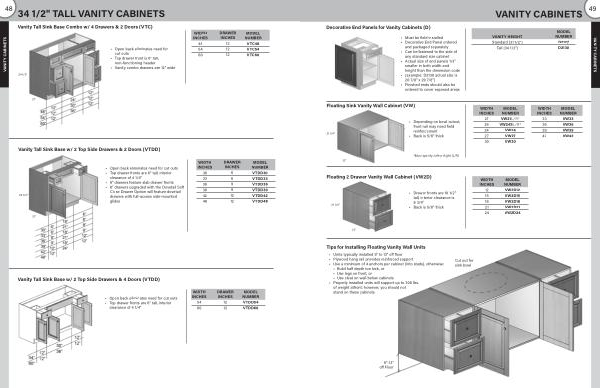

PCS Specification Guide 2024 2024 | Page 48

48

34 1 / 2 " TALL VANITY CABINETS

VANITY CABINETS
Vanity Tall Sink Base Combo w / 4 Drawers & 2 Doors ( VTC )
• Open back eliminates need for cut outs
• Top drawer front is 6 " tall , non-functioning header
• Vanity combo drawers are 12 " wide
WIDTH INCHES
48 54 60
DRAWER INCHES
12 12 12
MODEL NUMBER
VTC48 VTC54 VTC60
34 1 / 2 "
21 "
Vanity Tall Sink Base w / 2 Top Side Drawers & 2 Doors ( VTDD )
34 1 / 2 "
• Open back eliminates need for cut outs
• Top drawer fronts are 6 " tall , interior clearance of 4 1 / 4 "
• 6 " drawers feature slab drawer fronts
• 6 " drawers upgraded with the Dovetail Soft Close Drawer Option will feature dovetail drawers with full-access side-mounted glides
WIDTH INCHES
30 33 36 39 42 48
DRAWER INCHES
6 6 9 9 12 12
MODEL NUMBER
VTDD30 VTDD33 VTDD36 VTDD39 VTDD42 VTDD48
21 "
Vanity Tall Sink Base w / 2 Top Side Drawers & 4 Doors ( VTDD )
• Open back eliminates need for cut outs
• Top drawer fronts are 6 " tall , interior clearance of 4 1 / 4 "
WIDTH INCHES
54 60
DRAWER INCHES
12 12
MODEL NUMBER
VTDD54 VTDD60
