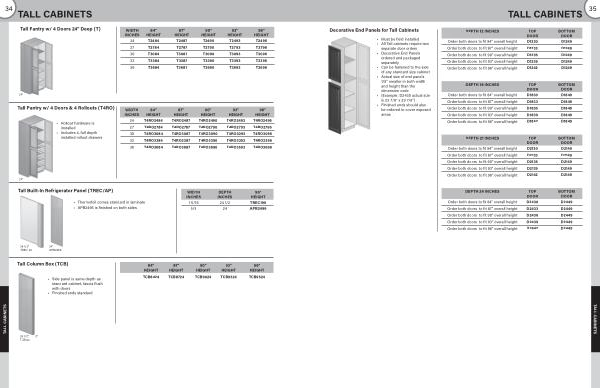

Decorative End Panels for Tall Cabinets
• Must be field installed
• All Tall cabinets require two separate door orders
• Decorative End Panels ordered and packaged separately
• Can be fastened to the side of any standard size cabinet
• Actual size of end panels 1 / 8 " smaller in both width and height than the dimension code
• ( Example : D2430 actual size is 23 7 / 8 " x 29 7 / 8 ")
• Finished ends should also be ordered to cover exposed areas
|
DEPTH 12 INCHES
Order both doors to fit 84 " overall height Order both doors to fit 87 " overall height Order both doors to fit 90 " overall height Order both doors to fit 93 " overall height Order both doors to fit 96 " overall height
DEPTH 18 INCHES
Order both doors to fit 84 " overall height Order both doors to fit 87 " overall height Order both doors to fit 90 " overall height Order both doors to fit 93 " overall height Order both doors to fit 96 " overall height
|
TOP DOOR
D1230
D1233
D1236
D1239
D1242
TOP DOOR
D1830
D1833
D1836
D1839
D1842
|
BOTTOM DOOR
D1249
D1249
D1249
D1249
D1249
BOTTOM DOOR
D1849
D1849
D1849
D1849
D1849
|
|
DEPTH 21 INCHES
Order both doors to fit 84 " overall height
|
TOP DOOR
D2130
|
BOTTOM DOOR
D2149
|
|
Order both doors to fit 87 " overall height |
D2133 |
D2149 |
|
Order both doors to fit 90 " overall height |
D2136 |
D2149 |
|
Order both doors to fit 93 " overall height Order both doors to fit 96 " overall height |
D2139
D2142
|
D2149
D2149
|
|
|
DEPTH 24 INCHES
Order both doors to fit 84 " overall height
|
TOP DOOR
D2430
|
BOTTOM DOOR
D2449
|
|
Order both doors to fit 87 " overall height |
D2433 |
D2449 |
|
Order both doors to fit 90 " overall height |
D2436 |
D2449 |
|
Order both doors to fit 93 " overall height Order both doors to fit 96 " overall height |
D2439
D2442
|
D2449
D2449
|
