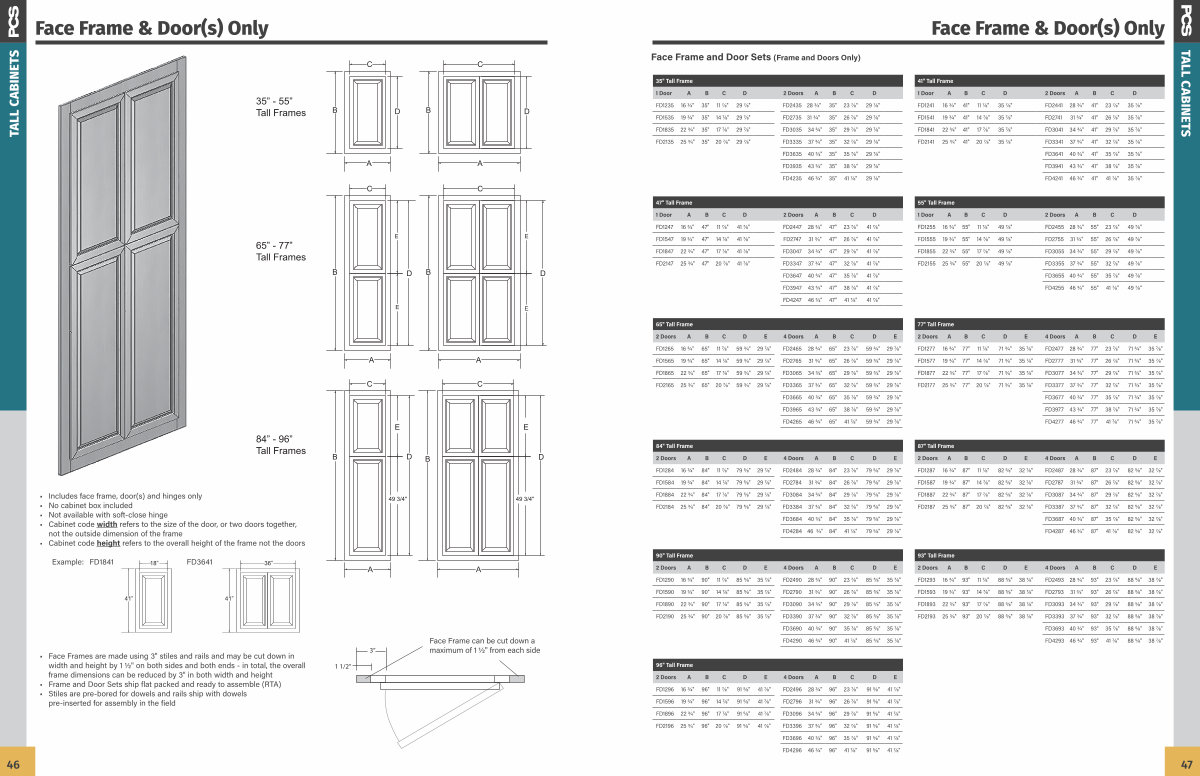

PCS Spec Guide_2025 | Page 47

Face Frame & Door( s) Only

Face Frame and Door Sets( Frame and Doors Only)
35 " Tall Frame
1 Door
A
B
C
D
2 Doors
A
B
C
D
FD1235
16 3 / 4 "
35 "
11 7 / 8 "
29 7 / 8 "
FD2435
28 3 / 4 "
35 "
23 7 / 8 "
29 7 / 8 "
FD1535
19 3 / 4 "
35 "
14 7 / 8 "
29 7 / 8 "
FD2735
31 3 / 4 "
35 "
26 7 / 8 "
29 7 / 8 "
FD1835
22 3 / 4 "
35 "
17 7 / 8 "
29 7 / 8 "
FD3035
34 3 / 4 "
35 "
29 7 / 8 "
29 7 / 8 "
FD2135
25 3 / 4 "
35 "
20 7 / 8 "
29 7 / 8 "
FD3335
37 3 / 4 "
35 "
32 7 / 8 "
29 7 / 8 "
41 " Tall Frame
1 Door
A
B
C
D
2 Doors
A
B
C
D
FD1241
16 3 / 4 "
41 "
11 7 / 8 "
35 7 / 8 "
FD2441
28 3 / 4 "
41 "
23 7 / 8 "
35 7 / 8 "
FD1541
19 3 / 4 "
41 "
14 7 / 8 "
35 7 / 8 "
FD2741
31 3 / 4 "
41 "
26 7 / 8 "
35 7 / 8 "
FD1841
22 3 / 4 "
41 "
17 7 / 8 "
35 7 / 8 "
FD3041
34 3 / 4 "
41 "
29 7 / 8 "
35 7 / 8 "
FD2141
25 3 / 4 "
41 "
20 7 / 8 "
35 7 / 8 "
FD3341
37 3 / 4 "
41 "
32 7 / 8 "
35 7 / 8 "
TALL CABINETS
FD3635 40 3 / 4 " 35 " 35 7 / 8 " 29 7 / 8 " FD3935 43 3 / 4 " 35 " 38 7 / 8 " 29 7 / 8 " FD4235 46 3 / 4 " 35 " 41 7 / 8 " 29 7 / 8 "
FD3641 40 3 / 4 " 41 " 35 7 / 8 " 35 7 / 8 " FD3941 43 3 / 4 " 41 " 38 7 / 8 " 35 7 / 8 " FD4241 46 3 / 4 " 41 " 41 7 / 8 " 35 7 / 8 "
47 " Tall Frame
1 Door
A
B
C
D
2 Doors
A
B
C
D
FD1247
16 3 / 4 "
47 ''
11 7 / 8 "
41 7 / 8 "
FD2447
28 3 / 4 "
47 ''
23 7 / 8 "
41 7 / 8 "
FD1547
19 3 / 4 "
47 ''
14 7 / 8 "
41 7 / 8 "
FD2747
31 3 / 4 "
47 ''
26 7 / 8 "
41 7 / 8 "
FD1847
22 3 / 4 "
47 ''
17 7 / 8 "
41 7 / 8 "
FD3047
34 3 / 4 "
47 ''
29 7 / 8 "
41 7 / 8 "
FD2147
25 3 / 4 "
47 ''
20 7 / 8 "
41 7 / 8 "
FD3347
37 3 / 4 "
47 ''
32 7 / 8 "
41 7 / 8 "
FD3647
40 3 / 4 "
47 ''
35 7 / 8 "
41 7 / 8 "
FD3947
43 3 / 4 "
47 ''
38 7 / 8 "
41 7 / 8 "
FD4247
46 3 / 4 "
47 ''
41 7 / 8 "
41 7 / 8 "
55 " Tall Frame
1 Door
A
B
C
D
2 Doors
A
B
C
D
FD1255
16 3 / 4 "
55 "
11 7 / 8 "
49 7 / 8 "
FD2455
28 3 / 4 "
55 "
23 7 / 8 "
49 7 / 8 "
FD1555
19 3 / 4 "
55 "
14 7 / 8 "
49 7 / 8 "
FD2755
31 3 / 4 "
55 "
26 7 / 8 "
49 7 / 8 "
FD1855
22 3 / 4 "
55 "
17 7 / 8 "
49 7 / 8 "
FD3055
34 3 / 4 "
55 "
29 7 / 8 "
49 7 / 8 "
FD2155
25 3 / 4 "
55 "
20 7 / 8 "
49 7 / 8 "
FD3355
37 3 / 4 "
55 "
32 7 / 8 "
49 7 / 8 "
FD3655
40 3 / 4 "
55 "
35 7 / 8 "
49 7 / 8 "
FD4255
46 3 / 4 "
55 "
41 7 / 8 "
49 7 / 8 "
65 " Tall Frame
2 Doors
A
B
C
D
E
4 Doors
A
B
C
D
E
FD1265
16 3 / 4 "
65 "
11 7 / 8 "
59 3 / 4 "
29 7 / 8 "
FD2465
28 3 / 4 "
65 "
23 7 / 8 "
59 3 / 4 "
29 7 / 8 "
FD1565
19 3 / 4 "
65 "
14 7 / 8 "
59 3 / 4 "
29 7 / 8 "
FD2765
31 3 / 4 "
65 "
26 7 / 8 "
59 3 / 4 "
29 7 / 8 "
FD1865
22 3 / 4 "
65 "
17 7 / 8 "
59 3 / 4 "
29 7 / 8 "
FD3065
34 3 / 4 "
65 "
29 7 / 8 "
59 3 / 4 "
29 7 / 8 "
FD2165
25 3 / 4 "
65 "
20 7 / 8 "
59 3 / 4 "
29 7 / 8 "
FD3365
37 3 / 4 "
65 "
32 7 / 8 "
59 3 / 4 "
29 7 / 8 "
FD3665
40 3 / 4 "
65 "
35 7 / 8 "
59 3 / 4 "
29 7 / 8 "
FD3965
43 3 / 4 "
65 "
38 7 / 8 "
59 3 / 4 "
29 7 / 8 "
FD4265
46 3 / 4 "
65 "
41 7 / 8 "
59 3 / 4 "
29 7 / 8 "
77 " Tall Frame
2 Doors
A
B
C
D
E
4 Doors
A
B
C
D
E
FD1277
16 3 / 4 "
77 "
11 7 / 8 "
71 3 / 4 "
35 7 / 8 "
FD2477
28 3 / 4 "
77 "
23 7 / 8 "
71 3 / 4 "
35 7 / 8 "
FD1577
19 3 / 4 "
77 ''
14 7 / 8 "
71 3 / 4 "
35 7 / 8 "
FD2777
31 3 / 4 "
77 "
26 7 / 8 "
71 3 / 4 "
35 7 / 8 "
FD1877
22 3 / 4 "
77 ''
17 7 / 8 "
71 3 / 4 "
35 7 / 8 "
FD3077
34 3 / 4 "
77 "
29 7 / 8 "
71 3 / 4 "
35 7 / 8 "
FD2177
25 3 / 4 "
77 "
20 7 / 8 "
71 3 / 4 "
35 7 / 8 "
FD3377
37 3 / 4 "
77 "
32 7 / 8 "
71 3 / 4 "
35 7 / 8 "
FD3677
40 3 / 4 "
77 "
35 7 / 8 "
71 3 / 4 "
35 7 / 8 "
FD3977
43 3 / 4 "
77 "
38 7 / 8 "
71 3 / 4 "
35 7 / 8 "
FD4277
46 3 / 4 "
77 "
41 7 / 8 "
71 3 / 4 "
35 7 / 8 "
84 " Tall Frame
2 Doors
A
B
C
D
E
4 Doors
A
B
C
D
E
FD1284
16 3 / 4 "
84 "
11 7 / 8 "
79 5 / 8 "
29 7 / 8 "
FD2484
28 3 / 4 "
84 "
23 7 / 8 "
79 5 / 8 "
29 7 / 8 "
FD1584
19 3 / 4 "
84 "
14 7 / 8 "
79 5 / 8 "
29 7 / 8 "
FD2784
31 3 / 4 "
84 "
26 7 / 8 "
79 5 / 8 "
29 7 / 8 "
FD1884
22 3 / 4 "
84 "
17 7 / 8 "
79 5 / 8 "
29 7 / 8 "
FD3084
34 3 / 4 "
84 "
29 7 / 8 "
79 5 / 8 "
29 7 / 8 "
FD2184
25 3 / 4 "
84 "
20 7 / 8 "
79 5 / 8 "
29 7 / 8 "
FD3384
37 3 / 4 "
84 "
32 7 / 8 "
79 5 / 8 "
29 7 / 8 "
FD3684
40 3 / 4 "
84 "
35 7 / 8 "
79 5 / 8 "
29 7 / 8 "
FD4284
46 3 / 4 "
84 "
41 7 / 8 "
79 5 / 8 "
29 7 / 8 "
87 " Tall Frame
2 Doors
A
B
C
D
E
4 Doors
A
B
C
D
E
FD1287
16 3 / 4 "
87 "
11 7 / 8 "
82 5 / 8 "
32 7 / 8 "
FD2487
28 3 / 4 "
87 "
23 7 / 8 "
82 5 / 8 "
32 7 / 8 "
FD1587
19 3 / 4 "
87 "
14 7 / 8 "
82 5 / 8 "
32 7 / 8 "
FD2787
31 3 / 4 "
87 "
26 7 / 8 "
82 5 / 8 "
32 7 / 8 "
FD1887
22 3 / 4 "
87 "
17 7 / 8 "
82 5 / 8 "
32 7 / 8 "
FD3087
34 3 / 4 "
87 "
29 7 / 8 "
82 5 / 8 "
32 7 / 8 "
FD2187
25 3 / 4 "
87 "
20 7 / 8 "
82 5 / 8 "
32 7 / 8 "
FD3387
37 3 / 4 "
87 "
32 7 / 8 "
82 5 / 8 "
32 7 / 8 "
FD3687
40 3 / 4 "
87 "
35 7 / 8 "
82 5 / 8 "
32 7 / 8 "
FD4287
46 3 / 4 "
87 "
41 7 / 8 "
82 5 / 8 "
32 7 / 8 "
90 " Tall Frame
2 Doors
A
B
C
D
E
4 Doors
A
B
C
D
E
FD1290
16 3 / 4 "
90 "
11 7 / 8 "
85 5 / 8 "
35 7 / 8 "
FD2490
28 3 / 4 "
90 "
23 7 / 8 "
85 5 / 8 "
35 7 / 8 "
FD1590
19 3 / 4 "
90 "
14 7 / 8 "
85 5 / 8 "
35 7 / 8 "
FD2790
31 3 / 4 "
90 "
26 7 / 8 "
85 5 / 8 "
35 7 / 8 "
FD1890
22 3 / 4 "
90 "
17 7 / 8 "
85 5 / 8 "
35 7 / 8 "
FD3090
34 3 / 4 "
90 "
29 7 / 8 "
85 5 / 8 "
35 7 / 8 "
FD2190
25 3 / 4 "
90 "
20 7 / 8 "
85 5 / 8 "
35 7 / 8 "
FD3390
37 3 / 4 "
90 "
32 7 / 8 "
85 5 / 8 "
35 7 / 8 "
FD3690
40 3 / 4 "
90 "
35 7 / 8 "
85 5 / 8 "
35 7 / 8 "
FD4290
46 3 / 4 "
90 "
41 7 / 8 "
85 5 / 8 "
35 7 / 8 "
93 " Tall Frame
2 Doors
A
B
C
D
E
4 Doors
A
B
C
D
E
FD1293
16 3 / 4 "
93 "
11 7 / 8 "
88 5 / 8 "
38 7 / 8 "
FD2493
28 3 / 4 "
93 "
23 7 / 8 "
88 5 / 8 "
38 7 / 8 "
FD1593
19 3 / 4 "
93 "
14 7 / 8 "
88 5 / 8 "
38 7 / 8 "
FD2793
31 3 / 4 "
93 "
26 7 / 8 "
88 5 / 8 "
38 7 / 8 "
FD1893
22 3 / 4 "
93 "
17 7 / 8 "
88 5 / 8 "
38 7 / 8 "
FD3093
34 3 / 4 "
93 "
29 7 / 8 "
88 5 / 8 "
38 7 / 8 "
FD2193
25 3 / 4 "
93 "
20 7 / 8 "
88 5 / 8 "
38 7 / 8 "
FD3393
37 3 / 4 "
93 "
32 7 / 8 "
88 5 / 8 "
38 7 / 8 "
FD3693
40 3 / 4 "
93 "
35 7 / 8 "
88 5 / 8 "
38 7 / 8 "
FD4293
46 3 / 4 "
93 "
41 7 / 8 "
88 5 / 8 "
38 7 / 8 "
96 " Tall Frame
2 Doors
A
B
C
D
E
4 Doors
A
B
C
D
E
FD1296
16 3 / 4 "
96 "
11 7 / 8 "
91 5 / 8 "
41 7 / 8 "
FD2496
28 3 / 4 "
96 "
23 7 / 8 "
91 5 / 8 "
41 7 / 8 "
FD1596
19 3 / 4 "
96 "
14 7 / 8 "
91 5 / 8 "
41 7 / 8 "
FD2796
31 3 / 4 "
96 "
26 7 / 8 "
91 5 / 8 "
41 7 / 8 "
FD1896
22 3 / 4 "
96 "
17 7 / 8 "
91 5 / 8 "
41 7 / 8 "
FD3096
34 3 / 4 "
96 "
29 7 / 8 "
91 5 / 8 "
41 7 / 8 "
FD2196
25 3 / 4 "
96 "
20 7 / 8 "
91 5 / 8 "
41 7 / 8 "
FD3396
37 3 / 4 "
96 "
32 7 / 8 "
91 5 / 8 "
41 7 / 8 "
FD3696
40 3 / 4 "
96 "
35 7 / 8 "
91 5 / 8 "
41 7 / 8 "
FD4296
46 3 / 4 "
96 "
41 7 / 8 "
91 5 / 8 "
41 7 / 8 "
