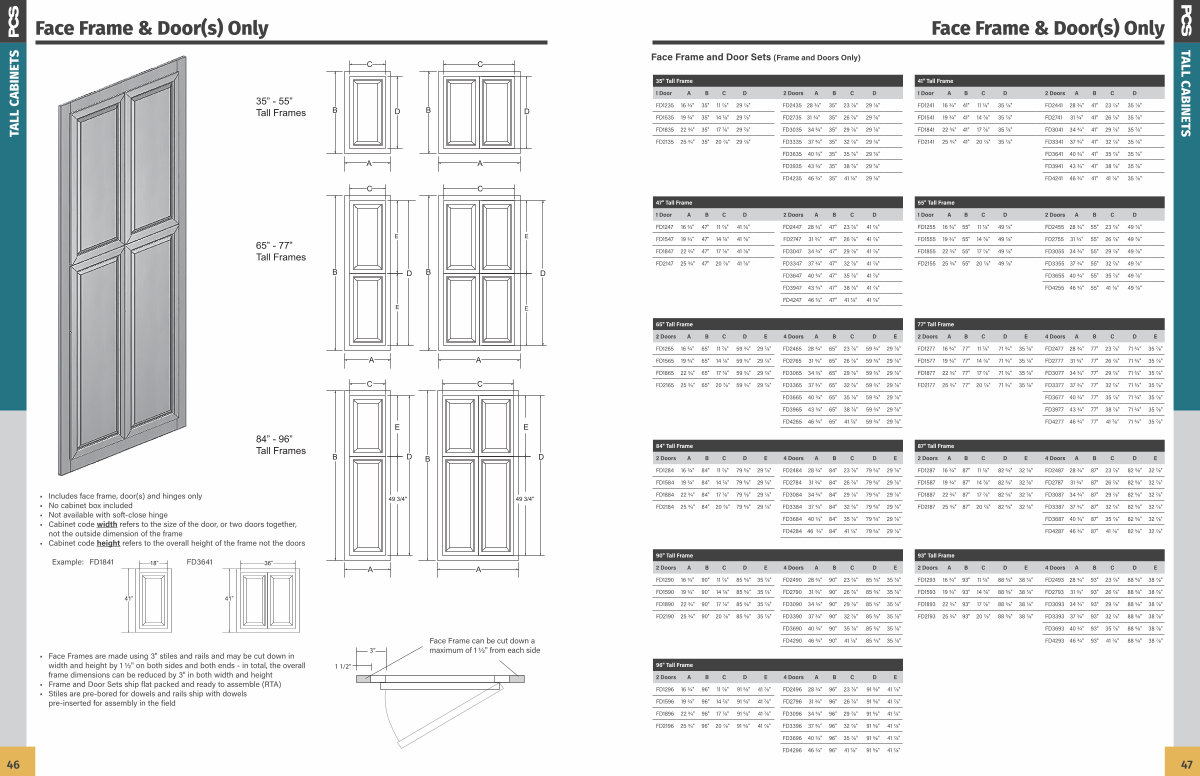

PCS Spec Guide_2025 | Page 46

Face Frame & Door( s) Only
TALL CABINETS
35”- 55” Tall Frames
B
C
D
B
C
D
A
A
C
C
65”- 77” Tall Frames
E
E
B
D
B
D
E
E
A A
C C
84”- 96” Tall Frames
B
E
D
B
E
D
• Includes face frame, door( s) and hinges only
• No cabinet box included
• Not available with soft-close hinge
• Cabinet code width refers to the size of the door, or two doors together, not the outside dimension of the frame
• Cabinet code height refers to the overall height of the frame not the doors
49 3 / 4 " 49 3 / 4 "
Example: FD1841
18”
18” FD3641
36”
A
A
41”
41” 41”
• Face Frames are made using 3 " stiles and rails and may be cut down in width and height by 1 ½ " on both sides and both ends- in total, the overall
35”- 55” frame dimensions can be reduced
Tall Frames B by 3 " in both width D B and height
D
• Frame and Door Sets ship flat packed and ready to assemble( RTA)
• Stiles are pre-bored for dowels and rails ship with dowels pre-inserted for assembly in the field
C
C
1 1 / 2”
3”
Face Frame can be cut down a maximum of 1 1 / 2 " from each side
A A
C C
46
E E
