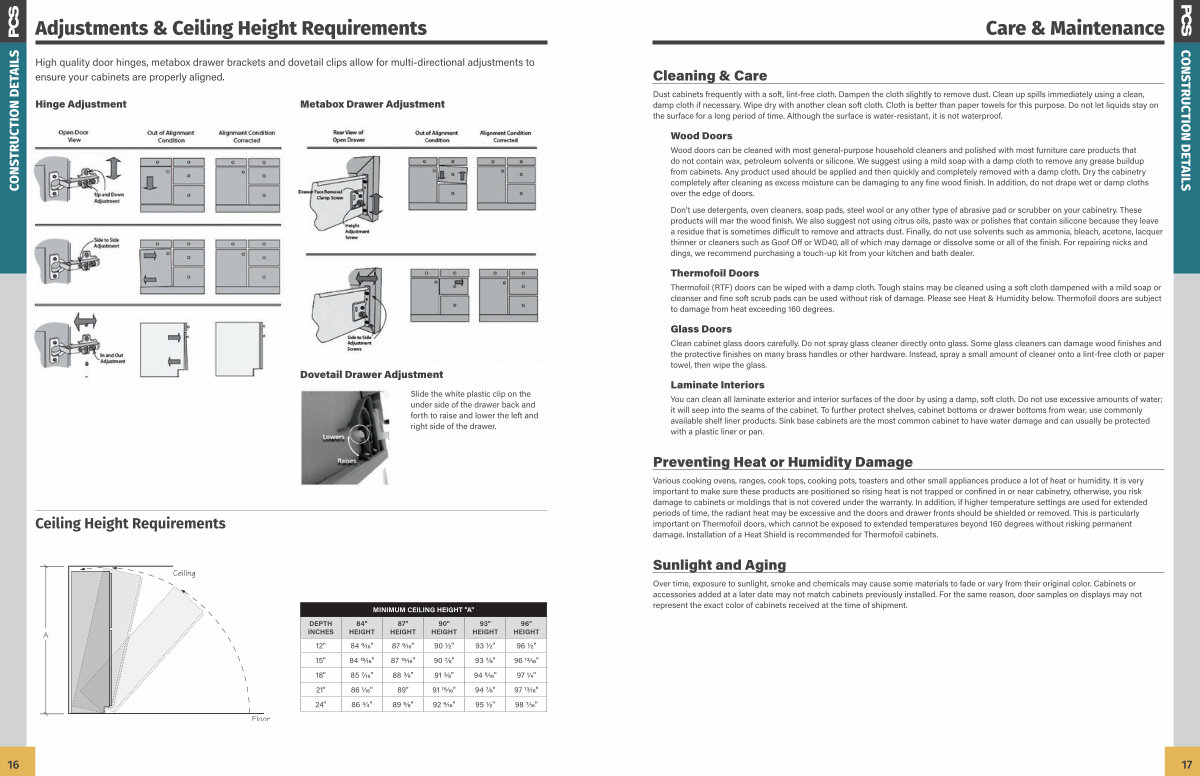

Adjustments & Ceiling Height Requirements
CONSTRUCTION DETAILS
High quality door hinges, metabox drawer brackets and dovetail clips allow for multi-directional adjustments to ensure your cabinets are properly aligned.
Hinge Adjustment
Metabox Drawer Adjustment
Dovetail Drawer Adjustment
Slide the white plastic clip on the under side of the drawer back and forth to raise and lower the left and right side of the drawer.
Ceiling Height Requirements
DEPTH INCHES
84 " HEIGHT
MINIMUM CEILING HEIGHT " A "
87 " HEIGHT
90 " HEIGHT
93 " HEIGHT
96 " HEIGHT
12 " 84 9 / 16 " 87 9 / 16 " 90 1 / 2 " 93 1 / 2 " 96 1 / 2 " 15 " 84 15 / 16 " 87 15 / 16 " 90 7 / 8 " 93 7 / 8 " 96 13 / 16 " 18 " 85 7 / 16 " 88 3 / 8 " 91 3 / 8 " 94 5 / 16 " 97 1 / 4 " 21 " 86 1 / 16 " 89 " 91 15 / 16 " 94 7 / 8 " 97 13 / 16 " 24 " 86 3 / 4 " 89 5 / 8 " 92 9 / 16 " 95 1 / 2 " 98 7 / 16 "
