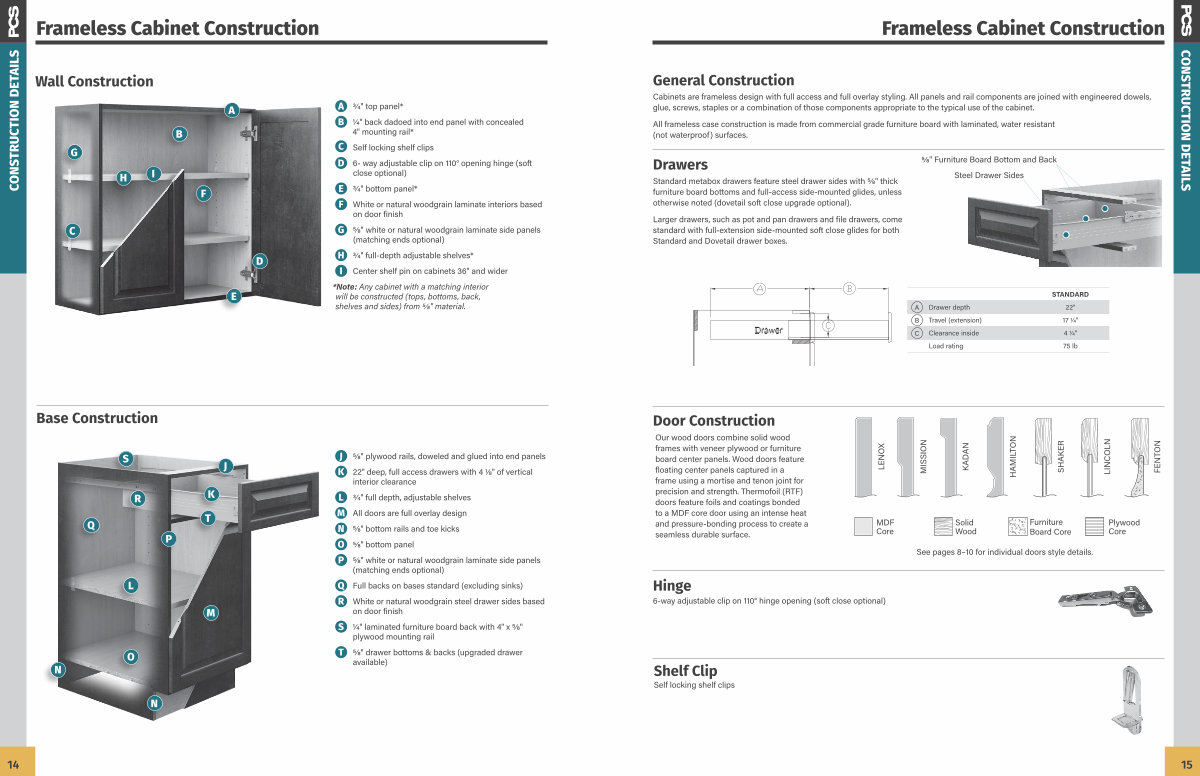

CONSTRUCTION DETAILS |
Wall Construction
G H I
|
B |
F |
A |
A 3 / 4 " top panel *
B 1 / 4 " back dadoed into end panel with concealed 4 " mounting rail *
C Self locking shelf clips
D 6- way adjustable clip on 110 ° opening hinge( soft close optional)
E 3 / 4 " bottom panel *
F White or natural woodgrain laminate interiors based on door finish
|
||||||||||||
C |
D |
H 3 / 4 " full-depth adjustable shelves *
I Center shelf pin on cabinets 36 " and wider
|
||||
E |
* Note: Any cabinet with a matching interior will be constructed( tops, bottoms, back, shelves and sides) from 5 / 8 " material. |
||||
Base Construction |
Q |
S |
R |
P |
K
T
|
J |
J 5 / 8 " plywood rails, doweled and glued into end panels
K 22 " deep, full access drawers with 4 1 / 8 " of vertical interior clearance
L 3 / 4 " full depth, adjustable shelves
M All doors are full overlay design
N 5 / 8 " bottom rails and toe kicks
O 5 / 8 " bottom panel
|
|||
P 5 / 8 " white or natural woodgrain laminate side panels( matching ends optional) |
|||||||||
L |
Q Full backs on bases standard( excluding sinks) |
||||||||
M |
R White or natural woodgrain steel drawer sides based on door finish
S 1 / 4 " laminated furniture board back with 4 " x 5 / 8 " plywood mounting rail
|
||||||||
N |
O |
T 5 / 8 " drawer bottoms & backs( upgraded drawer available) |
||||
