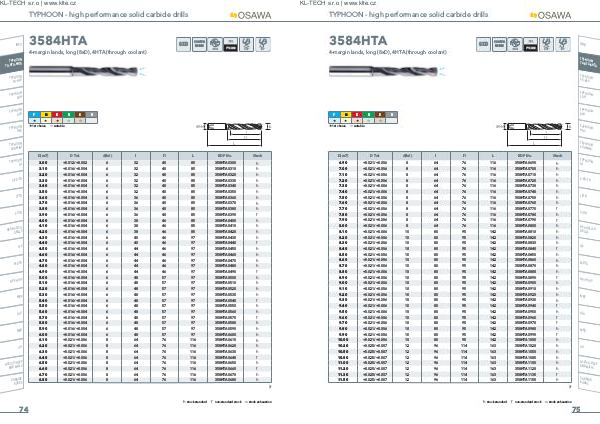

TYPHOON - high performance solid carbide drills
INFO
3584HTA
OSAWA
NORM
8XD
4-margin lands, long (8xD), 4HTA (through coolant)
N
TYPHOO
HTA
TA-HTA-4
N
TYPHOO
PU-HPU
N
TYPHOO
SUH
N
TYPHOO
ALH
N
TYPHOO
HRC
P M K N S
+ + + , ,
+ 1st choice
H
, suitable
N
TYPHOO
I
SUH MIN
N
TYPHOO
HL
C-SD-TA
LFTA
SUTA
/CO
HSS-HSS
DRILLS
G2
MDTA
P
HF VH/U
MEF
ALU
MEX
UH
-HSSP
HSS/CO LS
END MIL
CARBIDE
BURRS
D(m7) D Tol. d(h6) l l1 L EDP No. Stock
3.00 +0.012/+0.002 6 32 40 85 358HTA0300 h
3.10 +0.016/+0.004 6 32 40 85 358HTA0310 h
3.20 +0.016/+0.004 6 32 40 85 358HTA0320 h
3.30 +0.016/+0.004 6 32 40 85 358HTA0330 h
3.40 +0.016/+0.004 6 32 40 85 358HTA0340 h
3.50 +0.016/+0.004 6 32 40 85 358HTA0350 h
3.60 +0.016/+0.004 6 36 40 85 358HTA0360 h
3.70 +0.016/+0.004 6 36 40 85 358HTA0370 h
3.80 +0.016/+0.004 6 36 40 85 358HTA0380 h
3.90 +0.016/+0.004 6 36 40 85 358HTA0390 f
4.00 +0.016/+0.004 6 38 46 85 358HTA0400 h
4.10 +0.016/+0.004 6 38 46 85 358HTA0410 h
4.20 +0.016/+0.004 6 38 46 85 358HTA0420 h
4.30 +0.016/+0.004 6 40 46 97 358HTA0430 h
4.40 +0.016/+0.004 6 40 46 97 358HTA0440 f
4.50 +0.016/+0.004 6 44 46 97 358HTA0450 h
4.60 +0.016/+0.004 6 44 46 97 358HTA0460 h
4.70 +0.016/+0.004 6 44 46 97 358HTA0470 h
4.80 +0.016/+0.004 6 44 46 97 358HTA0480 h
4.90 +0.016/+0.004 6 44 46 97 358HTA0490 f
5.00 +0.016/+0.004 6 48 57 97 358HTA0500 h
5.10 +0.016/+0.004 6 48 57 97 358HTA0510 h
5.20 +0.016/+0.004 6 48 57 97 358HTA0520 h
5.30 +0.016/+0.004 6 48 57 97 358HTA0530 h
5.40 +0.016/+0.004 6 48 57 97 358HTA0540 f
5.50 +0.016/+0.004 6 48 57 97 358HTA0550 h
5.60 +0.016/+0.004 6 48 57 97 358HTA0560 h
5.70 +0.016/+0.004 6 48 57 97 358HTA0570 f
5.80 +0.016/+0.004 6 48 57 97 358HTA0580 h
5.90 +0.016/+0.004 6 48 57 97 358HTA0590 h
6.00 +0.016/+0.004 6 48 57 97 358HTA0600 h
6.10 +0.021/+0.006 8 64 76 116 358HTA0610 h
6.20 +0.021/+0.006 8 64 76 116 358HTA0620 h
6.30 +0.021/+0.006 8 64 76 116 358HTA0630 h
6.40 +0.021/+0.006 8 64 76 116 358HTA0640 f
6.50 +0.021/+0.006 8 64 76 116 358HTA0650 h
6.60 +0.021/+0.006 8 64 76 116 358HTA0660 f
6.70 +0.021/+0.006 8 64 76 116 358HTA0670 h
6.80 +0.021/+0.006 8 64 76 116 358HTA0680 h
h stock standard
74
f non-standard stock
m stock exhaustion
