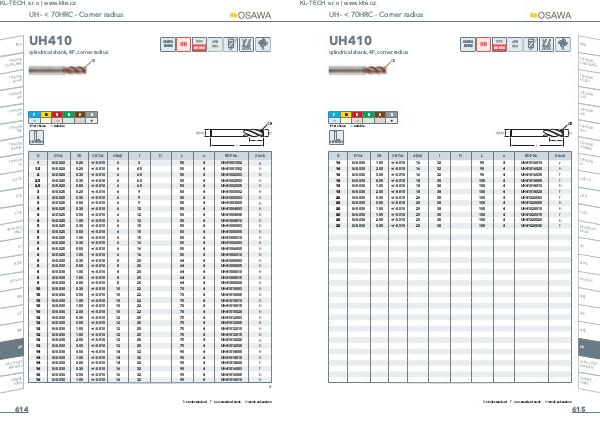

UH - < 70HRC - Corner radius
UH410
<70
OSAWA
NORM
INFO
cylindrical shank, 4F, corner radius
TYPHOO
N
TA-HTA-4
HTA
CR
TYPHOO
N
PU-HPU
TYPHOO
N
SUH
P
M
,
+ 1st choice
K
N
S
,
, suitable
TYPHOO
N
ALH
H
+
CR
SIDE MILLING
TYPHOO
N
HRC
TYPHOO
N
SUH MIN
I
D D Tol. CR CR Tol. d(h6) l L z EDP No. Stock
16 0/-0.030 1.50 +/-0.010 16 32
l1
90 4 UH41016015 f
16 0/-0.030 2.00 +/-0.010 16 32 90 4 UH41016020 h
16 0/-0.030 3.00 +/-0.010 16 32 90 4 UH41016030 f
18 0/-0.030 0.50 +/-0.010 18 38 100 4 UH41018005 f
18 0/-0.030 1.00 +/-0.010 18 38 100 4 UH41018010 h
18 0/-0.030 2.00 +/-0.010 18 38 100 4 UH41018020 f
20 0/-0.030 0.30 +/-0.010 20 38 100 4 UH41020003 f
20 0/-0.030 0.50 +/-0.010 20 38 100 4 UH41020005 h
20 0/-0.030 1.00 +/-0.010 20 38 100 4 UH41020010 h
20 0/-0.030 1.50 +/-0.010 20 38 100 4 UH41020015 f
20 0/-0.030 2.00 +/-0.010 20 38 100 4 UH41020020 h
20 0/-0.030 3.00 +/-0.010 20 38 100 4 UH41020030 f
TYPHOO
N
HL
C-SD-TA
LFTA
SUTA
HSS-HSS
/CO
DRILLS
G2
MDTA
HF VH/U
P
MEF
ALU
MEX
UH
HSS/CO
-HSSP
END MIL
LS
CARBIDE
BURRS
h stock standard
f non-standard stock
m stock exhaustion
