UH - < 70HRC - Corner radius
INFO

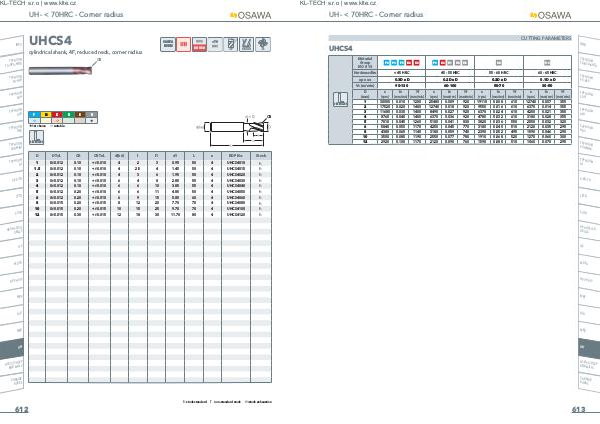

UHCS4
<70
OSAWA
NORM
cylindrical shank, 4F, reduced neck, corner radius
N
TYPHOO
HTA
TA-HTA-4
CR
N
TYPHOO
PU-HPU
N
TYPHOO
SUH
N
TYPHOO
ALH
P
M
,
N
TYPHOO
HRC + 1st choice
N
TYPHOO
I
SUH MIN SIDE MILLING
N
TYPHOO
HL
C-SD-TA
LFTA
SUTA
K
N
S
,
H
CR
+
, suitable
D D Tol. CR CR Tol. d(h6) l l1 d1 L z EDP No. 1 0/-0.012 0.10 +/-0.010 4 2 3 0.95 50 4 UHCS4010
Stock
h
1.5 0/-0.012 0.10 +/-0.010 4 2.5 4 1.45 50 4 UHCS4015 h
2 0/-0.012 0.10 +/-0.010 4 3 6 1.95 50 4 UHCS4020 h
3 0/-0.012 0.10 +/-0.010 6 4 8 2.85 55 4 UHCS4030 h
4 0/-0.012 0.10 +/-0.010 6 6 10 3.85 55 4 UHCS4040 h
5 0/-0.012 0.20 +/-0.010 6 6 11 4.85 50 4 UHCS4050 h
6 0/-0.012 0.20 +/-0.010 6 9 15 5.85 60 4 UHCS4060 h
8 0/-0.015 0.20 +/-0.015 8 12 20 7.70 70 4 UHCS4080 h
10 0/-0.015 0.20 +/-0.015 10 15 25 9.70 70 4 UHCS4100 h
12 0/-0.015 0.30 +/-0.015 12 18 30 11.70 80 4 UHCS4120 h
/CO
HSS-HSS
DRILLS
G2
MDTA
P
HF VH/U
MEF
ALU
MEX
UH
-HSSP
HSS/CO LS
END MIL
CARBIDE
BURRS
h stock standard
612
f non-standard stock
m stock exhaustion
