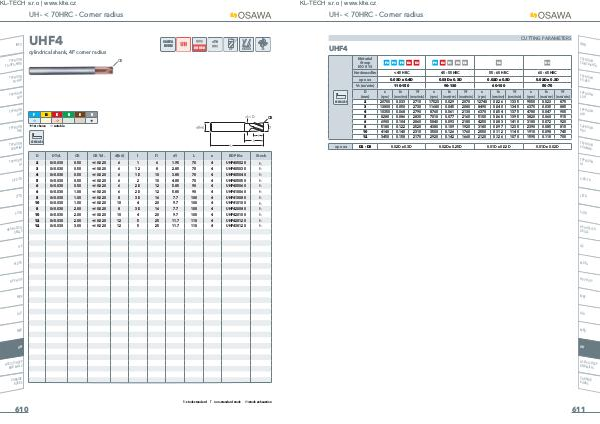

UH - < 70HRC - Corner radius
INFO
UHF4
<70
OSAWA
NORM
cylindrical shank, 4F corner radius
N
TYPHOO
HTA
TA-HTA-4
CR
N
TYPHOO
PU-HPU
N
TYPHOO
SUH
N
TYPHOO
ALH
P
M
,
N
TYPHOO
HRC + 1st choice
N
TYPHOO
I
SUH MIN SIDE MILLING
N
TYPHOO
HL
C-SD-TA
LFTA
SUTA
/CO
HSS-HSS
DRILLS
K
N
S
,
H
CR
+
, suitable
D D Tol. CR CR Tol. d(h6) l l1 d1 L z EDP No. Stock
2 0/-0.030 0.50 +/-0.020 6 1 6 1.95 70 4 UHF405020 h
3 0/-0.030 0.50 +/-0.020 6 1.2 8 2.85 70 4 UHF405030 h
4 0/-0.030 0.50 +/-0.020 6 1.5 10 3.85 70 4 UHF405040 h
5 0/-0.030 0.50 +/-0.020 6 2 10 4.85 70 4 UHF405050 h
6 0/-0.030 0.50 +/-0.020 6 2.5 12 5.85 90 4 UHF405060 h
6 0/-0.030 1.00 +/-0.020 6 2.5 12 5.85 90 4 UHF410060 h
8 0/-0.030 1.00 +/-0.020 8 3.5 16 7.7 100 4 UHF410080 h
10 0/-0.030 1.00 +/-0.020 10 4 20 9.7 100 4 UHF410100 h
8 0/-0.030 2.00 +/-0.020 8 3.5 16 7.7 100 4 UHF420080 h
10 0/-0.030 2.00 +/-0.020 10 4 20 9.7 100 4 UHF420100 h
12 0/-0.030 2.00 +/-0.020 12 5 25 11.7 110 4 UHF420120 h
12 0/-0.030 3.00 +/-0.020 12 5 25 11.7 110 4 UHF430120 h
G2
MDTA
P
HF VH/U
MEF
ALU
MEX
UH
-HSSP
HSS/CO LS
END MIL
CARBIDE
BURRS
h stock standard
610
f non-standard stock
m stock exhaustion
