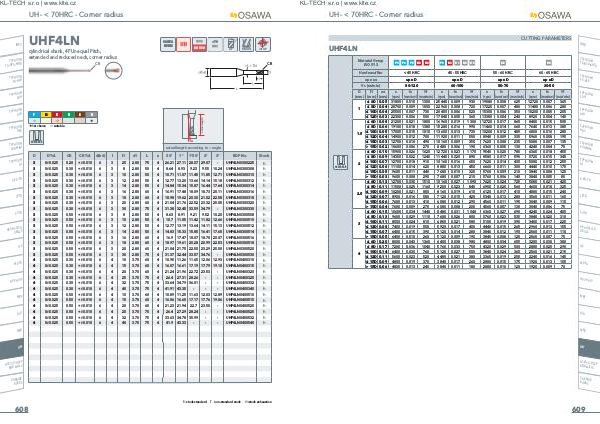

UH- < 70HRC- Corner radius

CUTTING PARAMETERS

UHF4LN

INFO

Material Group ISO 513

P3 P4 P5 K2 K3 P6 K4 H1 H4 H5 H2 H3

TYPHOON TA-HTA-4HTA

SQUARE RIB

Hardness / Rm < 45 HRC 45- 55 HRC 55- 60 HRC 60- 65 HRC

D( mm)

1.5

2.5

4 ap x ae ap x D ap x D ap x D ap x D Vc( m / min) 80-120 60-100 50-70 30-50

l1( mm) ae( mm) n( rpm) fn( mm / rev)

Vf( mm / min) n( rpm) fn( mm / rev)

Vf( mm / min)

≤ 6D	0.05	31800	0.010	1300	25440	0.009	930	19080	0.008	625	12720	0.007	365
≤ 8D	0.04	28700	0.009	1000	22960	0.008	720	17220	0.007	480	11480	0.006	280
≤ 10D 0.04		25500	0.007	730	20400	0.006	520	15300	0.006	350	10200	0.005	205
≤ 12D 0.03		22300	0.006	500	17840	0.005	360	13380	0.004	240	8920	0.004	140
≤ 6D	0.08	21200	0.021	1800	16960	0.019	1300	12720	0.017	865	8480	0.015	505
≤ 8D	0.06	19100	0.018	1380	15280	0.016	990	11460	0.014	660	7640	0.013	385
≤ 10D 0.05		17000	0.015	1010	13600	0.013	730	10200	0.012	485	6800	0.010	285
≤ 12D 0.04		14900	0.012	700	11920	0.011	500	8940	0.009	335	5960	0.008	195
≤ 15D 0.03		12700	0.010	490	10160	0.009	350	7620	0.008	235	5080	0.007	135
> 15D 0.02		10600	0.006	270	8480	0.006	190	6360	0.005	130	4240	0.004	75
≤ 6D	0.10	15900	0.026	1620	12720	0.023	1170	9540	0.020	780	6360	0.018	455
≤ 8D	0.09	14300	0.022	1240	11440	0.020	890	8580	0.017	595	5720	0.015	345
≤ 10D 0.07		12700	0.018	910	10160	0.016	650	7620	0.014	435	5080	0.012	255
≤ 12D 0.06		11100	0.014	620	8880	0.013	450	6660	0.011	300	4440	0.010	175
≤ 15D 0.05		9600	0.011	440	7680	0.010	320	5760	0.009	210	3840	0.008	125
> 15D 0.03		9600	0.008	290	7680	0.007	210	5760	0.006	140	3840	0.005	80
≤ 6D	0.13	12700	0.030	1510	10160	0.027	1090	7620	0.024	725	5080	0.021	425
≤ 8D	0.11	11500	0.025	1160	9200	0.023	840	6900	0.020	560	4600	0.018	325
≤ 10D 0.09		10200	0.021	850	8160	0.019	610	6120	0.017	410	4080	0.015	240
≤ 12D 0.07		8900	0.016	580	7120	0.015	420	5340	0.013	280	3560	0.011	165
≤ 15D 0.06		7600	0.013	410	6080	0.012	290	4560	0.011	195	3040	0.009	115
> 15D 0.04		7600	0.009	270	6080	0.008	200	4560	0.007	130	3040	0.006	75
≤ 6D	0.15	10600	0.034	1440	8480	0.031	1040	6360	0.027	690	4240	0.024	405
≤ 8D	0.13	9600	0.029	1110	7680	0.026	800	5760	0.023	535	3840	0.020	310
≤ 10D 0.11		8500	0.024	810	6800	0.021	580	5100	0.019	390	3400	0.017	225
≤ 12D 0.08		7400	0.019	550	5920	0.017	400	4440	0.015	265	2960	0.013	155
≤ 15D 0.07		6400	0.015	390	5120	0.014	280	3840	0.012	190	2560	0.011	110
> 15D 0.05		6400	0.010	260	5120	0.009	190	3840	0.008	125	2560	0.007	75
≤ 6D	0.20	8000	0.043	1360	6400	0.038	980	4800	0.034	655	3200	0.030	380
≤ 8D	0.17	7200	0.036	1040	5760	0.033	750	4320	0.029	500	2880	0.025	290
≤ 10D 0.14		6400	0.030	760	5120	0.027	550	3840	0.024	365	2560	0.021	215
≤ 12D 0.11		5600	0.023	520	4480	0.021	380	3360	0.019	250	2240	0.016	145
≤ 15D 0.09		4800	0.019	370	3840	0.017	260	2880	0.015	175	1920	0.013	105
> 15D 0.06		4800	0.013	240	3840	0.011	180	2880	0.010	120	1920	0.009	70
