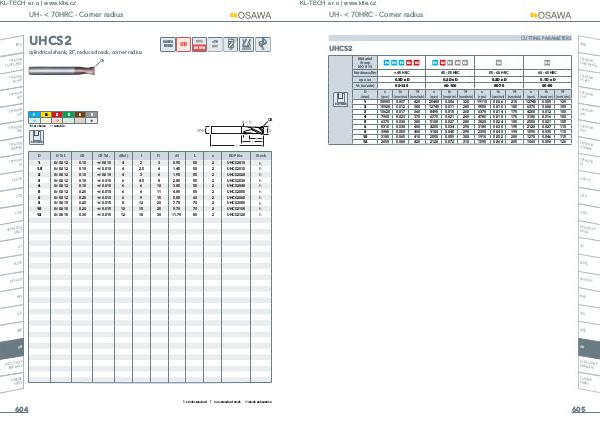

KL-TECH s.r.o | www.klte.cz UH - < 70HRC - Corner radius CUTTING PARAMETERS INFO UHCS2 Material Group ISO 513 P3 P5 K2 K3 P6 K4 H1 H4 H5 H2 H3 Hardness/Rm < 45 HRC 45 - 55 HRC 55 - 60 HRC 60 - 65 HRC ap x ae 0.3D x D 0.2D x D 0.2D x D 0.1D x D Vc (m/min) SLOTTING P4 80-120 D (mm) n (rpm) 1 2 3 4 5 6 8 10 12 30000 15920 10620 7960 6370 5310 3980 3180 2650 60-100 fn Vf (mm/rev) (mm/min) 0.007 0.012 0.017 0.023 0.030 0.038 0.050 0.065 0.080 420 380 360 370 380 400 400 410 420 n (rpm) 25480 12740 8490 6370 5100 4250 3180 2550 2120 50-70 fn Vf (mm/rev) (mm/min) 0.006 0.011 0.015 0.021 0.027 0.034 0.045 0.059 0.072 320 280 260 260 280 290 290 300 310 n (rpm) 19110 9550 6370 4780 3820 3180 2390 1910 1590 TYPHOO N PU-HPU 30-50 fn Vf (mm/rev) (mm/min) 0.006 0.010 0.014 0.018 0.024 0.030 0.040 0.052 0.064 TYPHOO N TA-HTA-4 HTA 215 185 175 175 185 195 190 200 205 n (rpm) 12740 6370 4250 3180 2550 2120 1590 1270 1060 fn Vf (mm/rev) (mm/min) 0.005 0.008 0.012 0.016 0.021 0.027 0.035 0.046 0.056 125 105 100 100 105 115 110 115 120 TYPHOO N SUH TYPHOO N ALH TYPHOO N HRC TYPHOO N SUH MIN I TYPHOO N HL C-SD-TA LFTA SUTA HSS-HSS /CO DRILLS G2 MDTA HF VH/U P MEF ALU MEX UH HSS/CO -HSSP END MIL LS CARBIDE BURRS 605
