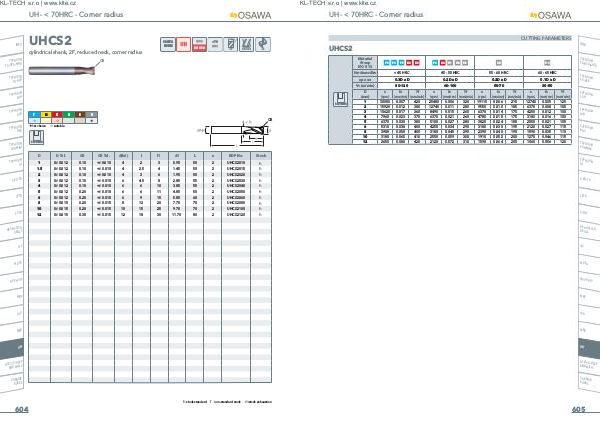

UH - < 70HRC - Corner radius
INFO
UHCS2
<70
OSAWA
NORM
cylindrical shank, 2F, reduced neck, corner radius
N
TYPHOO
HTA
TA-HTA-4
CR
N
TYPHOO
PU-HPU
N
TYPHOO
SUH
N
TYPHOO
ALH
P
M
,
N
TYPHOO
HRC + 1st choice
N
TYPHOO
I
SUH MIN SLOTTING
N
TYPHOO
HL
C-SD-TA
LFTA
SUTA
K
N
S
,
H
CR
+
, suitable
D D Tol. CR CR Tol. d(h6) l l1 d1 L z EDP No. Stock
1 0/-0.012 0.10 +/-0.010 4 2 3 0.95 50 2 UHCS2010 h
1.5 0/-0.012 0.10 +/-0.010 4 2.5 4 1.45 50 2 UHCS2015 h
2 0/-0.012 0.10 +/-0.010 4 3 6 1.95 50 2 UHCS2020 h
3 0/-0.012 0.10 +/-0.010 6 4.5 8 2.85 55 2 UHCS2030 h
4 0/-0.012 0.10 +/-0.010 6 6 10 3.85 55 2 UHCS2040 h
5 0/-0.012 0.20 +/-0.010 6 6 11 4.85 50 2 UHCS2050 h
6 0/-0.012 0.20 +/-0.010 6 9 15 5.85 60 2 UHCS2060 h
8 0/-0.015 0.20 +/-0.015 8 12 20 7.70 70 2 UHCS2080 h
10 0/-0.015 0.20 +/-0.015 10 15 25 9.70 70 2 UHCS2100 h
12 0/-0.015 0.30 +/-0.015 12 18 30 11.70 80 2 UHCS2120 h
/CO
HSS-HSS
DRILLS
G2
MDTA
P
HF VH/U
MEF
ALU
MEX
UH
-HSSP
HSS/CO LS
END MIL
CARBIDE
BURRS
h stock standard
604
f non-standard stock
m stock exhaustion
