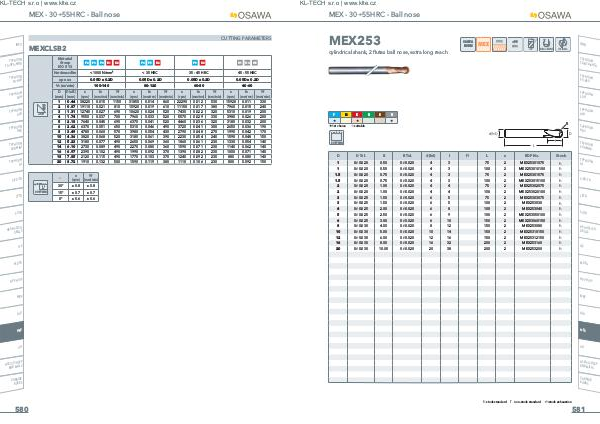

MEX - 30÷55HRC - Ball nose
MEX253
OSAWA
NORM
<55
INFO
cylindrical shank, 2 flutes ball nose, extra long reach
TYPHOO
N
TA-HTA-4
HTA
TYPHOO
N
PU-HPU
TYPHOO
N
SUH
P
M
+
+ 1st choice
K
N
S
TYPHOO
N
ALH
H
+
, suitable
+
R
TYPHOO
N
HRC
COPYING
TYPHOO
N
SUH MIN
I
D D Tol. R R Tol. d(h6) l L z EDP No. Stock
1 0/-0.020 0.50 0/-0.020 4 3
l1
75 2 MEX25301075 h
1 0/-0.020 0.50 0/-0.020 4 3 100 2 MEX253010100 h
1.5 0/-0.020 0.75 0/-0.020 4 3 75 2 MEX25301575 h
1.5 0/-0.020 0.75 0/-0.020 4 3 100 2 MEX253015100 h
2 0/-0.020 1.00 0/-0.020 4 4 75 2 MEX25302075 h
2 0/-0.020 1.00 0/-0.020 4 4 100 2 MEX253020100 h
3 0/-0.025 1.50 0/-0.020 6 5 75 2 MEX25303075 h
3 0/-0.025 1.50 0/-0.020 6 5 100 2 MEX253030 h
4 0/-0.025 2.00 0/-0.020 6 8 100 2 MEX253040 h
5 0/-0.025 2.50 0/-0.020 6 9 100 2 MEX253050100 h
6 0/-0.025 3.00 0/-0.020 6 10 150 2 MEX253060150 h
8 0/-0.030 4.00 0/-0.020 8 12 150 2 MEX253080 h
10 0/-0.030 5.00 0/-0.020 10 14 150 2 MEX25310150 h
12 0/-0.030 6.00 0/-0.020 12 16 150 2 MEX25312150 h
16 0/-0.030 8.00 0/-0.020 16 32 200 2 MEX253160 h
20 0/-0.030 10.00 0/-0.020 20 38 200 2 MEX253200 h
