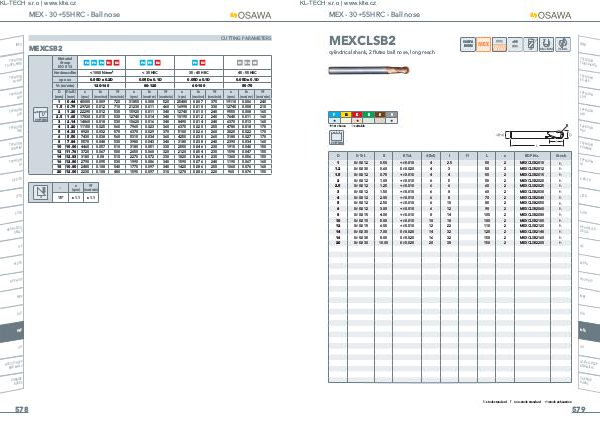

MEX - 30÷55HRC - Ball nose
MEXCLSB2
OSAWA
NORM
<55
INFO
cylindrical shank, 2 flutes ball nose, long reach
TYPHOO
N
TA-HTA-4
HTA
TYPHOO
N
PU-HPU
TYPHOO
N
SUH
P
M
+
+ 1st choice
K
N
S
TYPHOO
N
ALH
H
+
, suitable
+
R
TYPHOO
N
HRC
COPYING
TYPHOO
N
SUH MIN
I
D D Tol. R R Tol. d(h6) l L z EDP No. Stock
1 0/-0.012 0.50 +/-0.010 4 2.5
l1
50 2 MEXCLSB2010 h
1.2 0/-0.030 0.60 0/-0.020 4 3 50 2 MEXCLSB2012 h
1.5 0/-0.012 0.75 +/-0.010 4 4 50 2 MEXCLSB2015 h
2 0/-0.012 1.00 +/-0.010 6 5 50 2 MEXCLSB2020 h
2.5 0/-0.012 1.25 +/-0.010 6 6 60 2 MEXCLSB2025 h
3 0/-0.012 1.50 +/-0.010 6 8 60 2 MEXCLSB2030 h
4 0/-0.012 2.00 +/-0.010 6 8 70 2 MEXCLSB2040 h
5 0/-0.012 2.50 +/-0.010 6 10 80 2 MEXCLSB2050 h
6 0/-0.012 3.00 +/-0.010 6 12 90 2 MEXCLSB2060 h
8 0/-0.015 4.00 +/-0.010 8 14 100 2 MEXCLSB2080 h
10 0/-0.015 5.00 +/-0.010 10 18 100 2 MEXCLSB2100 h
12 0/-0.015 6.00 +/-0.010 12 22 110 2 MEXCLSB2120 h
14 0/-0.030 7.00 0/-0.020 14 32 125 2 MEXCLSB2140 h
16 0/-0.030 8.00 0/-0.020 16 32 150 2 MEXCLSB2160 h
20 0/-0.030 10.00 0/-0.020 20 38 150 2 MEXCLSB2200 h
TYPHOO
N
HL
C-SD-TA
LFTA
SUTA
HSS-HSS
/CO
DRILLS
G2
MDTA
HF VH/U
P
MEF
ALU
MEX
UH
HSS/CO
-HSSP
END MIL
LS
CARBIDE
BURRS
h stock standard
f non-stock standard
m stock exhaustion
