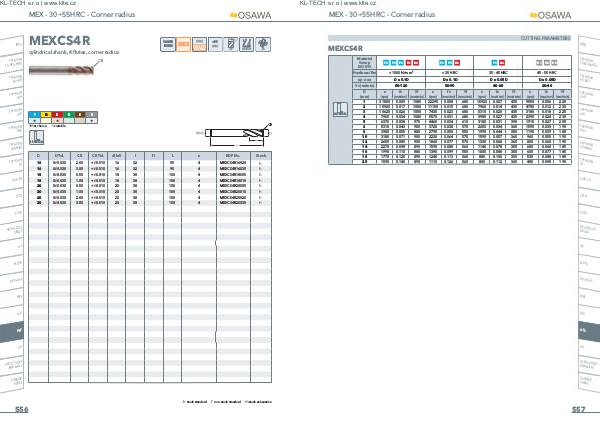

MEX- 30 ÷ 55HRC- Corner radius
INFO

MEXCS4R

cylindrical shank, 4 flutes, corner radius
OSAWA NORM
< 55
TYPHOON TA-HTA-4HTA
CR
TYPHOON PU-HPU
TYPHOON SUH
TYPHOON ALH
TYPHOON HRC
P
M
K
N
S
H
�
�
�
� 1st choice
� suitable
CR
TYPHOON SUH MINI
TYPHOON HL
C-SD-TA
LFTA
SIDE MILLING
D
D Tol.
CR
CR Tol.
d( h6)
l
l1
L
z
EDP No.
Stock
16
0 /-0.030
2.00
+/-0.010
16
32
90
4
MEXCS4R16020
h
16
0 /-0.030
3.00
+/-0.010
16
32
90
4
MEXCS4R16030
h
18
0 /-0.030
0.50
+/-0.010
18
38
100
4
MEXCS4R18005
h
18
0 /-0.030
1.00
+/-0.010
18
38
100
4
MEXCS4R18010
h
20
0 /-0.030
0.50
+/-0.010
20
38
100
4
MEXCS4R20005
h
20
0 /-0.030
1.00
+/-0.010
20
38
100
4
MEXCS4R20010
h
20
0 /-0.030
2.00
+/-0.010
20
38
100
4
MEXCS4R20020
h
20
0 /-0.030
3.00
+/-0.010
20
38
100
4
MEXCS4R20030
h
