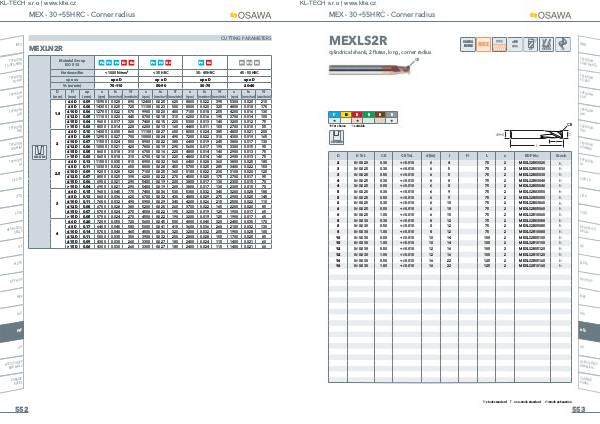

MEX - 30÷55HRC - Corner radius
MEXLS2R
OSAWA
NORM
<55
INFO
cylindrical shank, 2 flutes, long, corner radius
TYPHOO
N
TA-HTA-4
HTA
CR
TYPHOO
N
PU-HPU
TYPHOO
N
SUH
P
M
+
+ 1st choice
K
N
S
TYPHOO
N
ALH
H
+
, suitable
+
CR
SLOTTING
TYPHOO
N
HRC
TYPHOO
N
SUH MIN
I
D D Tol. CR CR Tol. d(h6) l L z EDP No. Stock
2 0/-0.020 0.30 +/-0.010 6 4
l1
75 2 MEXLS2R03020 h
3 0/-0.025 0.30 +/-0.010 6 5 75 2 MEXLS2R03030 h
3 0/-0.025 0.50 +/-0.010 6 5 75 2 MEXLS2R05030 h
4 0/-0.025 0.30 +/-0.010 6 8 75 2 MEXLS2R03040 h
4 0/-0.025 0.50 +/-0.010 6 8 75 2 MEXLS2R05040 h
5 0/-0.025 0.30 +/-0.010 6 9 75 2 MEXLS2R03050 h
5 0/-0.025 0.50 +/-0.010 6 9 75 2 MEXLS2R05050 h
6 0/-0.025 0.30 +/-0.010 6 10 75 2 MEXLS2R03060 h
6 0/-0.025 0.50 +/-0.010 6 10 75 2 MEXLS2R05060 h
6 0/-0.025 1.00 +/-0.010 6 10 75 2 MEXLS2R10060 h
8 0/-0.030 0.30 +/-0.010 8 12 75 2 MEXLS2R03080 h
8 0/-0.030 0.50 +/-0.010 8 12 75 2 MEXLS2R05080 h
8 0/-0.030 1.00 +/-0.010 8 12 75 2 MEXLS2R10080 h
10 0/-0.030 0.50 +/-0.010 10 14 100 2 MEXLS2R05100 h
10 0/-0.030 1.00 +/-0.010 10 14 100 2 MEXLS2R10100 h
12 0/-0.030 0.50 +/-0.010 12 16 100 2 MEXLS2R05120 h
12 0/-0.030 1.00 +/-0.010 12 16 100 2 MEXLS2R10120 h
16 0/-0.030 0.50 +/-0.010 16 22 125 2 MEXLS2R05160 h
16 0/-0.030 1.00 +/-0.010 16 22 125 2 MEXLS2R10160 h
TYPHOO
N
HL
C-SD-TA
LFTA
SUTA
HSS-HSS
/CO
DRILLS
G2
MDTA
HF VH/U
P
MEF
ALU
MEX
UH
HSS/CO
-HSSP
END MIL
LS
CARBIDE
BURRS
h stock standard
f non-stock standard
m stock exhaustion
