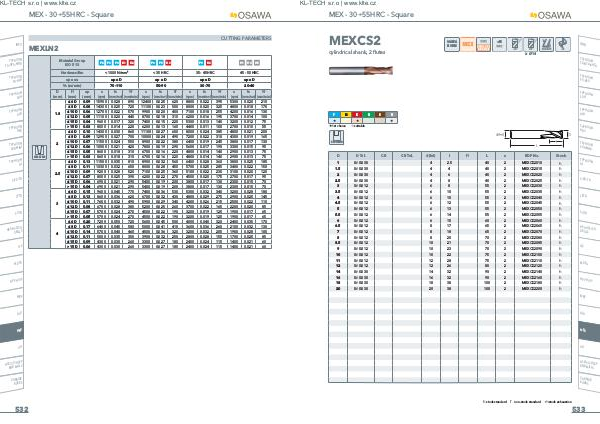

OSAWA - katalog | KL-TECH s.r.o. | www.klte.cz | Seite 535

KL-TECH s.r.o | www.klte.cz
MEX - 30÷55HRC - Square
MEXCS2
OSAWA
NORM
<55
INFO
cylindrical shank, 2 flutes
≥ Ø14
TYPHOO
N
TA-HTA-4
HTA
TYPHOO
N
PU-HPU
TYPHOO
N
SUH
P
M
+
+ 1st choice
K
N
S
TYPHOO
N
ALH
H
+
, suitable
+
TYPHOO
N
HRC
SLOTTING
TYPHOO
N
SUH MIN
I
D D Tol. d(h6) l L z EDP No. Stock
1 0/-0.030
CR
CR Tol.
4 2.5
l1
40 2 MEXCS2010 h
1.5 0/-0.030 4 4 40 2 MEXCS2015 h
2 0/-0.030 4 6 40 2 MEXCS2020 h
2.5 0/-0.030 4 8 40 2 MEXCS2025 h
3 0/-0.012 6 8 55 2 MEXCS2030 h
3.5 0/-0.012 6 10 55 2 MEXCS2035 h
4 0/-0.012 6 10 55 2 MEXCS2040 h
4.5 0/-0.012 6 12 55 2 MEXCS2045 h
5 0/-0.012 6 13 55 2 MEXCS2050 h
5.5 0/-0.012 6 14 55 2 MEXCS2055 h
6 0/-0.012 6 15 60 2 MEXCS2060 h
6.5 0/-0.012 8 17 65 2 MEXCS2065 h
7 0/-0.012 8 18 65 2 MEXCS2070 h
8 0/-0.012 8 20 70 2 MEXCS2080 h
8.5 0/-0.012 10 21 70 2 MEXCS2085 h
9 0/-0.012 10 23 70 2 MEXCS2090 h
10 0/-0.012 10 22 75 2 MEXCS2100 h
11 0/-0.012 12 28 75 2 MEXCS2110 h
12 0/-0.012 12 26 80 2 MEXCS2120 h
14 0/-0.030 14 32 90 2 MEXCS2140 h
16 0/-0.030 16 32 90 2 MEXCS2160 h
18 0/-0.030 18 38 100 2 MEXCS2180 h
20 0/-0.030 20 38 100 2 MEXCS2200 h
TYPHOO
N
HL
C-SD-TA
LFTA
SUTA
HSS-HSS
/CO
DRILLS
G2
MDTA
HF VH/U
P
MEF
ALU
MEX
UH
HSS/CO
-HSSP
END MIL
LS
CARBIDE
BURRS
h stock standard
f non-stock standard
m stock exhaustion
533
