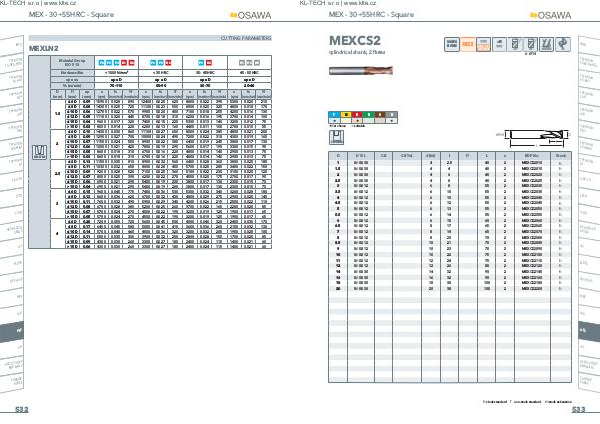

MEX- 30 ÷ 55HRC- Square

CUTTING PARAMETERS

INFO

MEXLN2

TYPHOON TA-HTA-4HTA

Material Group ISO 513

P2 P3 P4 K1 K2 P4 P5 K3 P6 K4 H1 H4 H5

TYPHOON PU-HPU

Hardness / Rm < 1000 N / mm ² < 35 HRC 35- 45 HRC 45- 55 HRC ap x ae ap x D ap x D ap x D ap x D

Vc( m / min) 70-110 50-90 30-70 20-40

TYPHOON SUH

TYPHOON ALH

TYPHOON HRC

TYPHOON SUH MINI

TYPHOON HL

C-SD-TA

SQUARE RIB

D( mm)

1.8

2.5

l1( mm)

ap( mm)

n( rpm)

fn Vf( mm / rev)( mm / min)

n( rpm)

fn Vf( mm / rev)( mm / min)

n( rpm)

fn Vf( mm / rev)( mm / min)

n( rpm)

fn Vf( mm / rev)( mm / min)

≤ 6D	0.09	15900	0.028	890	12400	0.025	620	8800	0.022	395	5300	0.020	210
≤ 8D	0.08	14300	0.025	720	11100	0.023	500	8000	0.020	325	4800	0.018	170
≤ 10D	0.06	12700	0.022	570	9900	0.020	400	7100	0.018	255	4200	0.016	130
≤ 12D	0.05	11100	0.020	440	8700	0.018	310	6200	0.016	195	3700	0.014	100
≤ 15D	0.04	9600	0.017	320	7400	0.015	220	5300	0.013	140	3200	0.012	75
> 15D	0.03	8000	0.014	220	6200	0.013	160	4400	0.011	100	2700	0.010	55
≤ 6D	0.10	14300	0.030	860	11100	0.027	600	8000	0.024	385	4800	0.021	200
≤ 8D	0.09	12900	0.027	700	10000	0.024	490	7200	0.022	310	4300	0.019	165
≤ 10D	0.07	11500	0.024	550	8900	0.022	380	6400	0.019	245	3800	0.017	130
≤ 12D	0.06	10000	0.021	420	7800	0.019	290	5600	0.017	190	3300	0.015	95
≤ 15D	0.05	8600	0.018	310	6700	0.016	220	4800	0.014	140	2900	0.013	75
> 15D	0.03	8600	0.018	310	6700	0.016	220	4800	0.014	140	2900	0.013	75
≤ 6D	0.13	11500	0.035	810	8900	0.032	560	6400	0.028	360	3800	0.025	185
≤ 8D	0.11	10300	0.032	650	8000	0.028	450	5700	0.025	285	3400	0.022	150
≤ 10D	0.09	9200	0.028	520	7100	0.025	360	5100	0.022	230	3100	0.020	120
≤ 12D	0.07	8000	0.025	390	6200	0.022	270	4500	0.020	175	2700	0.017	95
≤ 15D	0.06	6900	0.021	290	5400	0.019	200	3800	0.017	130	2300	0.015	70
> 15D	0.04	6900	0.021	290	5400	0.019	200	3800	0.017	130	2300	0.015	70
≤ 6D	0.15	9600	0.040	770	7400	0.036	530	5300	0.032	340	3200	0.028	180
≤ 8D	0.13	8600	0.036	620	6700	0.032	430	4800	0.029	275	2900	0.025	145
≤ 10D	0.11	7600	0.032	490	5900	0.029	340	4200	0.026	215	2500	0.022	110
≤ 12D	0.08	6700	0.028	380	5200	0.025	260	3700	0.022	165	2200	0.020	85
≤ 15D	0.07	5700	0.024	270	4500	0.022	190	3200	0.019	125	1900	0.017	65
> 15D	0.05	5700	0.024	270	4500	0.022	190	3200	0.019	125	1900	0.017	65
≤ 6D	0.20	7200	0.050	720	5600	0.045	500	4000	0.040	320	2400	0.035	170
≤ 8D	0.17	6400	0.045	580	5000	0.041	410	3600	0.036	260	2100	0.032	130
≤ 10D	0.14	5700	0.040	460	4500	0.036	320	3200	0.032	205	1900	0.028	105
≤ 12D	0.11	5000	0.035	350	3900	0.032	250	2800	0.028	155	1700	0.025	85
≤ 15D	0.09	4300	0.030	260	3300	0.027	180	2400	0.024	115	1400	0.021	60
> 15D	0.06	4300	0.030	260	3300	0.027	180	2400	0.024	115	1400	0.021	60
