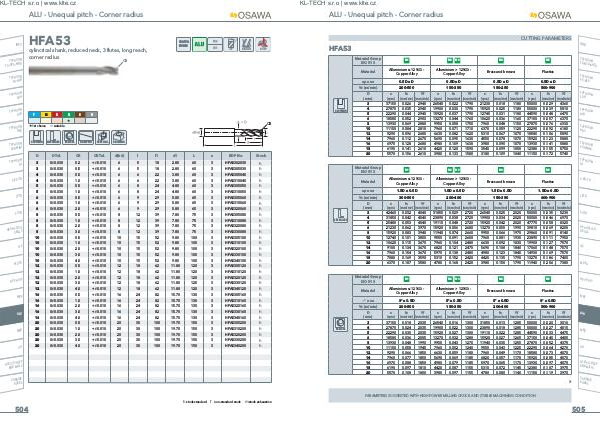

OSAWA - katalog | KL-TECH s.r.o. | www.klte.cz | Página 506

KL-TECH s.r.o | www.klte.cz
ALU - Unequal pitch - Corner radius
INFO
N
TYPHOO
HTA
TA-HTA-4
HFA53
OSAWA
NORM
cylincrical shank, reduced neck, 3 flutes, long reach,
corner radius
CR
N
TYPHOO
PU-HPU
N
TYPHOO
SUH
N
TYPHOO
ALH
P
M
K
N
S
H
+
N
TYPHOO
HRC + 1st choice
N
TYPHOO
I
SUH MIN SLOTTING
N
TYPHOO
HL
C-SD-TA
LFTA
SUTA
/CO
HSS-HSS
DRILLS
G2
MDTA
P
HF VH/U
MEF
ALU
MEX
UH
CR
, suitable
SIDE MILLING
HELICAL
RAMPING
VERTICAL
DRILLING
D D Tol. CR CR Tol. d(h6) l l1 d1 L z EDP No. Stock
3 0/-0.030 0.2 +/-0.010 6 5 18 2.80 60 3 HFA5302030 h
3 0/-0.030 0.5 +/-0.010 6 5 18 2.80 60 3 HFA5305030 h
4 0/-0.030 0.5 +/-0.010 6 6 22 3.80 60 3 HFA5305040 h
4 0/-0.030 1.0 +/-0.010 6 6 22 3.80 60 3 HFA5310040 h
5 0/-0.030 0.5 +/-0.010 6 8 24 4.80 60 3 HFA5305050 h
5 0/-0.030 1.0 +/-0.010 6 8 24 4.80 60 3 HFA5310050 h
6 0/-0.030 0.5 +/-0.010 6 9 29 5.80 65 3 HFA5305060 h
6 0/-0.030 1.0 +/-0.010 6 9 29 5.80 65 3 HFA5310060 h
6 0/-0.030 2.0 +/-0.010 6 9 29 5.80 65 3 HFA5320060 h
8 0/-0.030 0.5 +/-0.010 8 12 39 7.80 75 3 HFA5305080 h
8 0/-0.030 1.0 +/-0.010 8 12 39 7.80 75 3 HFA5310080 h
8 0/-0.030 2.0 +/-0.010 8 12 39 7.80 75 3 HFA5320080 h
8 0/-0.030 3.0 +/-0.010 8 12 39 7.80 75 3 HFA5330080 h
10 0/-0.030 0.5 +/-0.010 10 15 52 9.80 100 3 HFA5305100 h
10 0/-0.030 1.0 +/-0.010 10 15 52 9.80 100 3 HFA5310100 h
10 0/-0.030 2.0 +/-0.010 10 15 52 9.80 100 3 HFA5320100 h
10 0/-0.030 3.0 +/-0.010 10 15 52 9.80 100 3 HFA5330100 h
10 0/-0.030 4.0 +/-0.010 10 15 52 9.80 100 3 HFA5340100 h
12 0/-0.030 0.5 +/-0.010 12 18 62 11.80 120 3 HFA5305120 h
12 0/-0.030 1.0 +/-0.010 12 18 62 11.80 120 3 HFA5310120 h
12 0/-0.030 2.0 +/-0.010 12 18 62 11.80 120 3 HFA5320120 h
12 0/-0.030 3.0 +/-0.010 12 18 62 11.80 120 3 HFA5330120 h
12 0/-0.030 4.0 +/-0.010 12 18 62 11.80 120 3 HFA5340120 h
16 0/-0.030 0.5 +/-0.010 16 24 82 15.70 130 3 HFA5305160 h
16 0/-0.030 1.0 +/-0.010 16 24 82 15.70 130 3 HFA5310160 h
16 0/-0.030 2.0 +/-0.010 16 24 82 15.70 130 3 HFA5320160 h
16 0/-0.030 3.0 +/-0.010 16 24 82 15.70 130 3 HFA5330160 h
16 0/-0.030 4.0 +/-0.010 16 24 82 15.70 130 3 HFA5340160 h
20 0/-0.030 0.5 +/-0.010 20 30 100 19.70 150 3 HFA5305200 h
20 0/-0.030 1.0 +/-0.010 20 30 100 19.70 150 3 HFA5310200 h
20 0/-0.030 2.0 +/-0.010 20 30 100 19.70 150 3 HFA5320200 h
20 0/-0.030 3.0 +/-0.010 20 30 100 19.70 150 3 HFA5330200 h
20 0/-0.030 4.0 +/-0.010 20 30 100 19.70 150 3 HFA5340200 h
-HSSP
HSS/CO LS
END MIL
CARBIDE
BURRS
h stock standard
504
f non-standard stock
m stock exhaustion
