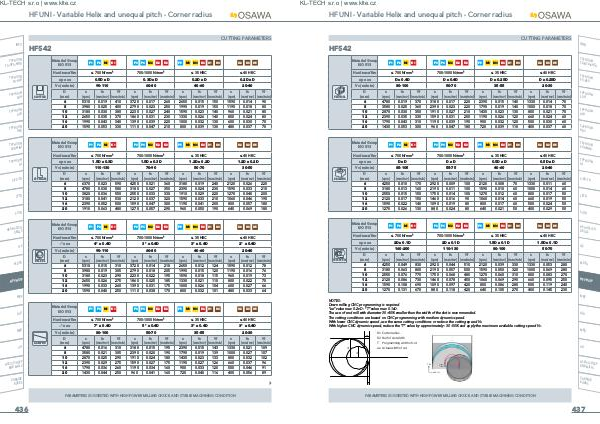

HF UNI- Variable Helix and unequal pitch- Corner radius

INFO

HF542

CUTTING PARAMETERS

TYPHOON TA-HTA-4HTA

Material Group ISO 513

P1 P2 M1 K1 P3 P4 M2 K2 K3 P5 M3 M4 K4 S1 S4 S2 S3 S5

TYPHOON PU-HPU

TYPHOON SUH

TYPHOON ALH

TYPHOON HRC

SLOTTING

Hardness / Rm ≤ 700 N / mm ² 700-1000 N / mm ² ≤ 35 HRC ≤ 40 HRC ap x ae 0.5D x D 0.3D x D 0.2D x D 0.2D x D

Vc( m / min) 90-110 60-80 40-60 20-40

D( mm) n( rpm) fn( mm / rev)

Vf( mm / min) n( rpm) fn( mm / rev)

Vf( mm / min)

6	5310	0.019	410	3720	0.017	260	2650	0.015	150	1590	0.014	90
8	3980	0.025	400	2790	0.023	250	1990	0.019	150	1190	0.018	80
10	3180	0.030	380	2230	0.027	240	1590	0.023	140	960	0.021	80
12	2650	0.035	370	1860	0.031	230	1330	0.026	140	800	0.024	80
16	1990	0.043	340	1390	0.039	220	1000	0.032	130	600	0.030	70
20	1590	0.053	330	1110	0.047	210	800	0.039	130	480	0.037	70

TYPHOON SUH MINI

Material Group ISO 513

P1 P2 M1 K1 P3 P4 M2 K2 K3 P5 M3 M4 K4 S1 S4 S2 S3 S5

TYPHOON HL

C-SD-TA

LFTA

SUTA

SIDE MILLING

Hardness / Rm ≤ 700 N / mm ² 700-1000 N / mm ² ≤ 35 HRC ≤ 40 HRC ap x ae 1.5D x 0.3D 1.5D x 0.3D 1.2D x 0.2D 1.2D x 0.2D

Vc( m / min) 110-130 70-90 50-70 30-50

D( mm) n( rpm) fn( mm / rev)

Vf( mm / min) n( rpm) fn( mm / rev)

Vf( mm / min)

6	6370	0.023	590	4250	0.021	360	3180	0.019	240	2120	0.026	220
8	4780	0.030	580	3180	0.027	350	2390	0.024	230	1590	0.033	210
10	3820	0.036	550	2550	0.033	330	1910	0.029	220	1270	0.040	200
12	3180	0.041	530	2120	0.037	320	1590	0.033	210	1060	0.046	190
16	2390	0.052	500	1590	0.047	300	1190	0.041	200	800	0.057	180
20	1910	0.063	480	1270	0.057	290	960	0.050	190	640	0.069	180

HSS-HSS / CO DRILLS

MDTA

HF VH / UP

MEF

HELICAL

Material Group ISO 513

P1 P2 M1 K1 P3 P4 M2 K2 K3 P5 M3 M4 K4 S1 S4 S2 S3 S5

Hardness / Rm ≤ 700 N / mm ² 700-1000 N / mm ² ≤ 35 HRC ≤ 40 HRC � ° x ae 4 ° x 0.4D 3 ° x 0.4D 3 ° x 0.4D 2 ° x 0.4D

Vc( m / min) 90-110 60-80 40-60 20-40

D( mm) n( rpm) fn( mm / rev)

Vf( mm / min) n( rpm) fn( mm / rev)

Vf( mm / min)

6	5310	0.015	310	3720	0.014	210	2650	0.012	124	1590	0.012	78
8	3980	0.019	305	2790	0.018	205	1990	0.015	120	1190	0.016	76
10	3180	0.023	290	2230	0.022	195	1590	0.018	115	960	0.019	73
12	2650	0.026	275	1860	0.025	185	1330	0.021	110	800	0.022	70
16	1990	0.033	260	1390	0.031	175	1000	0.026	104	600	0.027	66
20	1590	0.040	250	1110	0.038	170	800	0.032	101	480	0.033	64

ALU

MEX

HSS / CO-HSSP END MILLS

CARBIDE BURRS

RAMPING

Material Group ISO 513

P1 P2 M1 K1 P3 P4 M2 K2 K3 P5 M3 M4 K4 S1 S4 S2 S3 S5

Hardness / Rm ≤ 700 N / mm ² 700-1000 N / mm ² ≤ 35 HRC ≤ 40 HRC � ° x ae 7 ° x 0.4D 5 ° x 0.4D 3 ° x 0.4D 3 ° x 0.4D

Vc( m / min) 80-100 50-70 35-55 20-30

D( mm) n( rpm) fn( mm / rev)

Vf( mm / min) n( rpm) fn( mm / rev)

Vf( mm / min)

6	4780	0.016	310	3180	0.015	195	2390	0.015	143	1330	0.021	109
8	3580	0.021	305	2390	0.020	190	1790	0.019	139	1000	0.027	107
10	2870	0.025	290	1910	0.024	180	1430	0.023	133	800	0.032	102
12	2390	0.029	275	1590	0.027	175	1190	0.027	126	660	0.037	96
16	1790	0.036	260	1190	0.034	160	900	0.033	120	500	0.046	91
20	1430	0.044	250	960	0.041	160	720	0.040	116	400	0.056	89

PARAMETERS SUGGESTED WITH HIGH POWER MILLING CHUCK AND STABLE MACHINING CONDITION

436
