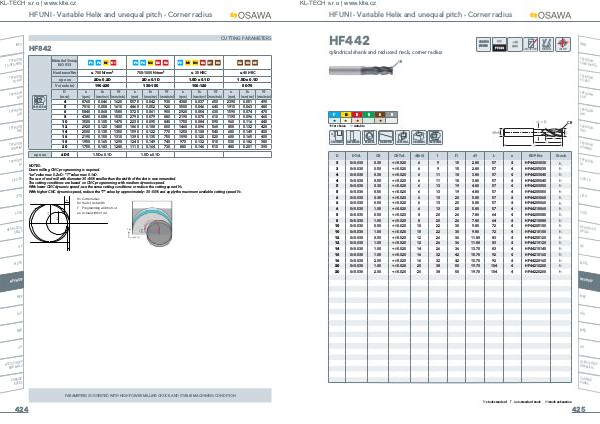

HF UNI - Variable Helix and unequal pitch - Corner radius
HF442
OSAWA
NORM
INFO
cylindrical shank and reduced neck, corner radius
TYPHOO
N
TA-HTA-4
HTA
CR
TYPHOO
N
PU-HPU
TYPHOO
N
SUH
P
M
K
N
S
+
+
+
+ 1st choice , suitable
TYPHOO
N
ALH
H
+
CR
TYPHOO
N
HRC
1.5D
SLOTTING
SIDE MILLING
HELICAL
RAMPING
VERTICAL
DRILLING
TROCHOIDAL
TYPHOO
N
SUH MIN
I
D D Tol. CR CR Tol. d(h6) l l1 d1 L z EDP No. Stock
3 0/-0.030 0.30 +/-0.020 6 9 15 2.80 57 4 HF44203030 h
3 0/-0.030 0.50 +/-0.020 6 9 15 2.80 57 4 HF44205030 h
4 0/-0.030 0.30 +/-0.020 6 11 18 3.80 57 4 HF44203040 h
4 0/-0.030 0.50 +/-0.020 6 11 18 3.80 57 4 HF44205040 h
5 0/-0.030 0.30 +/-0.020 6 13 19 4.80 57 4 HF44203050 h
5 0/-0.030 0.50 +/-0.020 6 13 19 4.80 57 4 HF44205050 h
6 0/-0.030 0.30 +/-0.020 6 13 20 5.80 57 4 HF44203060 h
6 0/-0.030 0.50 +/-0.020 6 13 20 5.80 57 4 HF44205060 h
6 0/-0.030 1.00 +/-0.020 6 13 20 5.80 57 4 HF44210060 h
8 0/-0.030 0.50 +/-0.020 8 20 26 7.80 64 4 HF44205080 h
8 0/-0.030 1.00 +/-0.020 8 20 26 7.80 64 4 HF44210080 h
10 0/-0.030 0.50 +/-0.020 10 22 30 9.80 72 4 HF44205100 h
10 0/-0.030 1.00 +/-0.020 10 22 30 9.80 72 4 HF44210100 h
12 0/-0.030 0.50 +/-0.020 12 26 36 11.80 83 4 HF44205120 h
12 0/-0.030 1.00 +/-0.020 12 26 36 11.80 83 4 HF44210120 h
14 0/-0.030 1.00 +/-0.020 14 26 36 13.70 83 4 HF44210140 h
16 0/-0.030 1.00 +/-0.020 16 32 42 15.70 92 4 HF44210160 h
16 0/-0.030 2.00 +/-0.020 16 32 42 15.70 92 4 HF44220160 h
20 0/-0.030 1.00 +/-0.020 20 38 50 19.70 104 4 HF44210200 h
20 0/-0.030 2.00 +/-0.020 20 38 50 19.70 104 4 HF44220200 h
TYPHOO
N
HL
C-SD-TA
LFTA
SUTA
HSS-HSS
/CO
DRILLS
G2
MDTA
HF VH/U
P
MEF
ALU
MEX
UH
HSS/CO
-HSSP
END MIL
LS
CARBIDE
BURRS
h stock standard
f non-standard stock
m stock exhaustion
