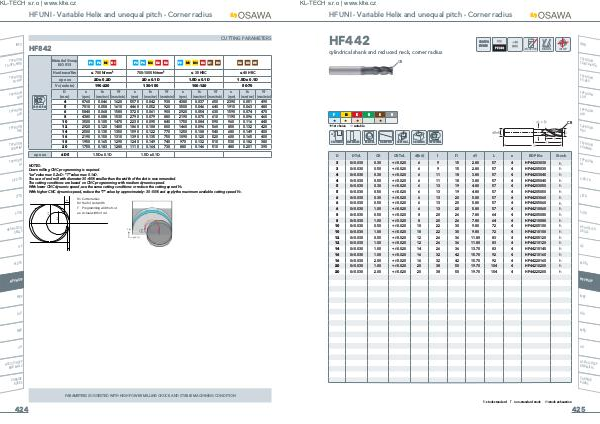

HF UNI- Variable Helix and unequal pitch- Corner radius
INFO
HF842
CUTTING PARAMETERS
TYPHOON TA-HTA-4HTA
Material Group ISO 513
P1 P2 M1 K1 P3 P4 M2 K2 K3 P5 M3 M4 K4 S1 S4 S2 S3 S5
TYPHOON PU-HPU
TYPHOON SUH
TYPHOON ALH
TYPHOON HRC
TYPHOON SUH MINI
TYPHOON HL
C-SD-TA
LFTA
SUTA
TROCHOIDAL
Hardness / Rm ≤ 700 N / mm ² 700-1000 N / mm ² ≤ 35 HRC ≤ 40 HRC ap x ae 2D x 0.2D 2D x 0.1D 1.5D x 0.1D 1.5D x 0.1D
Vc( m / min) 190-230 130-150 100-120 50-70
D( mm) n( rpm) fn( mm / rev)
Vf( mm / min) n( rpm) fn( mm / rev)
Vf( mm / min) n( rpm) fn( mm / rev)
Vf( mm / min) n( rpm) fn( mm / rev)
Vf( mm / min)
4 |
8760 |
0.046 |
1620 |
5570 |
0.042 |
930 |
4380 |
0.037 |
650 |
2390 |
0.051 |
490 |
5 |
7010 |
0.058 |
1610 |
4460 |
0.052 |
920 |
3500 |
0.046 |
640 |
1910 |
0.063 |
480 |
6 |
5840 |
0.068 |
1580 |
3720 |
0.061 |
900 |
2920 |
0.054 |
630 |
1590 |
0.074 |
470 |
8 |
4380 |
0.088 |
1530 |
2790 |
0.079 |
880 |
2190 |
0.070 |
610 |
1190 |
0.096 |
460 |
10 |
3500 |
0.105 |
1470 |
2230 |
0.095 |
840 |
1750 |
0.084 |
590 |
960 |
0.116 |
440 |
12 |
2920 |
0.120 |
1400 |
1860 |
0.108 |
800 |
1460 |
0.096 |
560 |
800 |
0.132 |
420 |
14 |
2500 |
0.135 |
1350 |
1590 |
0.122 |
770 |
1250 |
0.108 |
540 |
680 |
0.149 |
400 |
16 |
2190 |
0.150 |
1310 |
1390 |
0.135 |
750 |
1090 |
0.120 |
520 |
600 |
0.165 |
400 |
18 |
1950 |
0.165 |
1290 |
1240 |
0.149 |
740 |
970 |
0.132 |
510 |
530 |
0.182 |
380 |
20 |
1750 |
0.183 |
1280 |
1110 |
0.164 |
730 |
880 |
0.146 |
510 |
480 |
0.201 |
390 |
ap x ae ≤ D5 1.5D x 0.1D 1.5D x 0.1D
NOTES: Down milling CNC programming is required.“ ae” value max 0.2xD-“ T” value max 0.1xD. The use of end mill with diameter 30-40 % smaller than the width of the slot is recommended. The cutting conditions are based on CNC programming with medium dynamic speed. With lower CNC dynamic speed, use the same cutting conditions or reduce the cutting speed Vc. With higher CNC dynamic speed, reduce the“ T” value by approximately-30-50 % and apply the maximum available cutting speed Vc.
R2 ae
R1 Cutter radius R2 Half of slot width T Programming width of cut ae Actual width of cut
R1
HSS-HSS / CO DRILLS
Y(+)
X(+)
Y
G2
T
MDTA
HF VH / UP
MEF
ALU
MEX
UH
HSS / CO-HSSP END MILLS
CARBIDE BURRS
PARAMETERS SUGGESTED WITH HIGH POWER MILLING CHUCK AND STABLE MACHINING CONDITION
