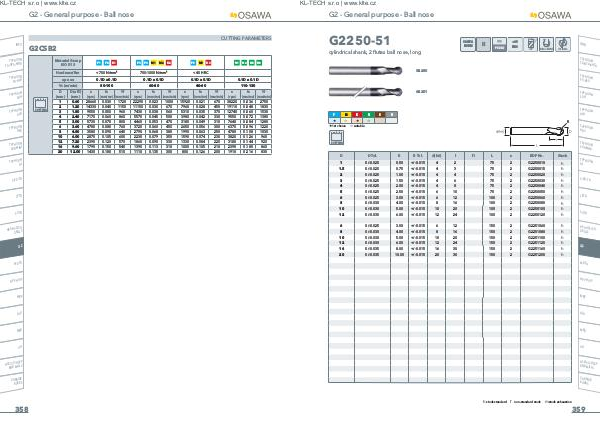

KL-TECH s.r.o | www.klte.cz G2 - General purpose - Ball nose CUTTING PARAMETERS INFO G2CSB2 N TYPHOO HTA TA-HTA-4 Material Group ISO 513 N TYPHOO PU-HPU N TYPHOO SUH N TYPHOO ALH N TYPHOO HRC N TYPHOO I SUH MIN N TYPHOO HL C-SD-TA LFTA SUTA /CO HSS-HSS DRILLS G2 MDTA P HF VH/U MEF ALU MEX UH -HSSP HSS/CO LS END MIL CARBIDE BURRS 358 COPYING P1 P2 P3 K1 P4 M1 M2 P5 K2 M3 Hardness/Rm < 700 N/mm² 700-1000 N/mm² < 40 HRC ap x ae 0.1D x 0.1D 0.1D x 0.1D 0.1D x 0.1D Vc (m/min) 80-100 60-80 40-60 D (mm) D (eff .) (mm) n (rpm) 1 2 3 4 5 6 8 10 12 16 20 0.60 1.20 1.80 2.40 3.00 3.60 4.80 6.00 7.20 9.60 12.00 28660 14330 9550 7170 5730 4780 3580 2870 2390 1790 1430 fn Vf (mm/rev) (mm/min) 0.030 0.040 0.050 0.060 0.070 0.080 0.090 0.105 0.120 0.150 0.180 1720 1150 960 860 800 760 640 600 570 540 510 n (rpm) 22290 11150 7430 5570 4460 3720 2790 2230 1860 1390 1110 fn Vf (mm/rev) (mm/min) 0.023 0.030 0.038 0.045 0.053 0.060 0.068 0.079 0.090 0.113 0.135 1000 670 560 500 470 450 380 350 330 310 300 n (rpm) 15920 7960 5310 3980 3180 2650 1990 1590 1330 1000 800 N1 K3 N2 N3 N4 0.1D x 0.1D 110-130 fn Vf (mm/rev) (mm/min) 0.021 0.028 0.035 0.042 0.049 0.056 0.063 0.074 0.084 0.105 0.126 670 450 370 330 310 300 250 230 220 210 200 n (rpm) 38220 19110 12740 9550 7640 6370 4780 3820 3180 2390 1910 fn Vf (mm/rev) (mm/min) 0.036 0.048 0.060 0.072 0.084 0.096 0.108 0.126 0.144 0.180 0.216 2750 1830 1530 1380 1280 1220 1030 960 920 860 830
