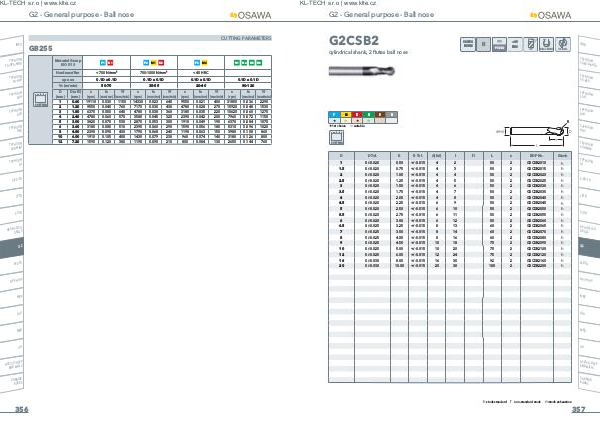

G2 - General purpose - Ball nose
G2CSB2
OSAWA
NORM
<45
HRC
INFO
cylindrical shank, 2 flutes ball nose
TYPHOO
N
TA-HTA-4
HTA
TYPHOO
N
PU-HPU
TYPHOO
N
SUH
P
M
K
N
S
TYPHOO
N
ALH
H
+
,
+
,
+ 1st choice , suitable
R
TYPHOO
N
HRC
COPYING
TYPHOO
N
SUH MIN
I
D D Tol. R R Tol. d(h6) l L z EDP No. Stock
1 0/-0.020 0.50 +/-0.015 4 2
l1
50 2 G2CSB2010 h
1.5 0/-0.020 0.75 +/-0.015 4 3 50 2 G2CSB2015 h
2 0/-0.020 1.00 +/-0.015 4 4 50 2 G2CSB2020 h
2.5 0/-0.020 1.25 +/-0.015 4 5 50 2 G2CSB2025 h
3 0/-0.020 1.50 +/-0.015 4 6 50 2 G2CSB2030 h
3.5 0/-0.020 1.75 +/-0.015 4 7 50 2 G2CSB2035 h
4 0/-0.020 2.00 +/-0.015 4 8 50 2 G2CSB2040 h
4.5 0/-0.020 2.25 +/-0.015 6 9 50 2 G2CSB2045 h
5 0/-0.020 2.50 +/-0.015 6 10 50 2 G2CSB2050 h
5.5 0/-0.020 2.75 +/-0.015 6 11 50 2 G2CSB2055 h
6 0/-0.020 3.00 +/-0.015 6 12 50 2 G2CSB2060 h
6.5 0/-0.025 3.25 +/-0.015 8 13 60 2 G2CSB2065 h
7 0/-0.025 3.50 +/-0.015 8 14 60 2 G2CSB2070 h
8 0/-0.025 4.00 +/-0.015 8 16 60 2 G2CSB2080 h
9 0/-0.025 4.50 +/-0.015 10 18 75 2 G2CSB2090 h
10 0/-0.025 5.00 +/-0.015 10 20 75 2 G2CSB2100 h
12 0/-0.025 6.00 +/-0.015 12 24 75 2 G2CSB2120 h
16 0/-0.030 8.00 +/-0.015 16 30 92 2 G2CSB2160 h
20 0/-0.030 10.00 +/-0.015 20 30 100 2 G2CSB2200 h
