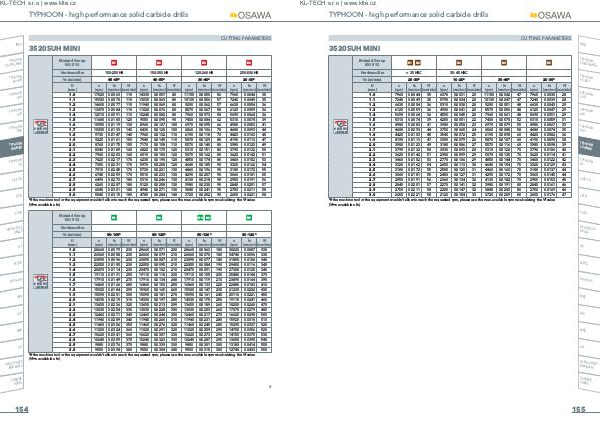

TYPHOON- high performance solid carbide drills

INFO

TYPHOON TA-HTA-4HTA

3520SUH MINI

Material Group ISO 513

CUTTING PARAMETERS

K1 K2 K3 K4

TYPHOON PU-HPU

TYPHOON SUH

TYPHOON ALH

TYPHOON HRC

TYPHOON SUH MINI

TYPHOON HL

C-SD-TA

LFTA

Ø RUN OUT < 0.02mm

Hardness / Rm 150-250 HB 150-350 HB 120-260 HB 250-500 HB Vc( m / min) 45-65 * 40-50 * 30-40 * 20-30 *

D( mm) n( rpm) fn Vf( mm / rev)( mm / min) n( rpm) fn Vf( mm / rev)( mm / min) n( rpm) fn Vf( mm / rev)( mm / min) n( rpm) fn Vf( mm / rev)( mm / min)

1.0	17520	0.0063	110	14330	0.0057	80	11150	0.0050	56	7960	0.0044	35
1.1	15920	0.0070	110	13030	0.0063	80	10130	0.0056	57	7240	0.0049	35
1.2	14600	0.0077	110	11940	0.0069	80	9290	0.0062	57	6630	0.0054	36
1.3	13470	0.0084	110	11020	0.0076	80	8570	0.0067	58	6120	0.0059	36
1.4	12510	0.0091	110	10240	0.0082	80	7960	0.0073	58	5690	0.0064	36
1.5	11680	0.0105	120	9550	0.0095	90	7430	0.0084	62	5310	0.0074	39
1.6	10950	0.0119	130	8960	0.0107	100	6970	0.0095	66	4980	0.0083	41
1.7	10300	0.0133	140	8430	0.0120	100	6560	0.0106	70	4680	0.0093	44
1.8	9730	0.0147	140	7960	0.0132	110	6190	0.0118	70	4420	0.0103	45
1.9	9220	0.0161	150	7540	0.0145	110	5870	0.0129	80	4190	0.0113	47
2.0	8760	0.0175	150	7170	0.0158	110	5570	0.0140	80	3980	0.0123	49
2.1	8340	0.0189	160	6820	0.0170	120	5310	0.0151	80	3790	0.0132	50
2.2	7960	0.0203	160	6510	0.0183	120	5070	0.0162	80	3620	0.0142	51
2.3	7620	0.0217	170	6230	0.0195	120	4850	0.0174	80	3460	0.0152	53
2.4	7300	0.0231	170	5970	0.0208	120	4640	0.0185	90	3320	0.0162	54
2.5	7010	0.0245	170	5730	0.0221	130	4460	0.0196	90	3180	0.0172	55
2.6	6740	0.0259	170	5510	0.0233	130	4290	0.0207	90	3060	0.0181	55
2.7	6490	0.0273	180	5310	0.0246	130	4130	0.0218	90	2950	0.0191	56
2.8	6260	0.0287	180	5120	0.0258	130	3980	0.0230	90	2840	0.0201	57
2.9	6040	0.0301	180	4940	0.0271	130	3840	0.0241	90	2750	0.0211	58
3.0	5840	0.0315	180	4780	0.0284	140	3720	0.0252	90	2650	0.0221	58

* if the machine tool or the equipment wouldn’ t allow to reach the requested rpm, please use the max. available rpm recalculating the Vf value( Vf = n available x fn)

SUTA

Material Group ISO 513

N1 N2 N3 N4 N5

HSS-HSS / CO DRILLS

MDTA

HF VH / UP

MEF

ALU

MEX

HSS / CO-HSSP

END MILLS

Ø RUN OUT < 0.02mm

Hardness / Rm
Vc( m / min)	80-100 *	80-120 *	80-120 *	80-120 *

D( mm) n( rpm) fn Vf( mm / rev)( mm / min) n( rpm) fn Vf( mm / rev)( mm / min) n( rpm) fn Vf( mm / rev)( mm / min) n( rpm) fn Vf( mm / rev)( mm / min)

1.0	28660	0.0079	230	28660	0.0071	200	28660	0.0063	180	38220	0.0087	330
1.1	26060	0.0088	230	26060	0.0079	210	26060	0.0070	180	34740	0.0096	330
1.2	23890	0.0096	230	23890	0.0087	210	23890	0.0077	180	31850	0.0106	340
1.3	22050	0.0105	230	22050	0.0095	210	22050	0.0084	190	29400	0.0116	340
1.4	20470	0.0114	230	20470	0.0102	210	20470	0.0091	190	27300	0.0125	340
1.5	19110	0.0131	250	19110	0.0118	230	19110	0.0105	200	25480	0.0144	370
1.6	17910	0.0149	270	17910	0.0134	240	17910	0.0119	210	23890	0.0164	390
1.7	16860	0.0166	280	16860	0.0150	250	16860	0.0133	220	22480	0.0183	410
1.8	15920	0.0184	290	15920	0.0165	260	15920	0.0147	230	21230	0.0202	430
1.9	15090	0.0201	300	15090	0.0181	270	15090	0.0161	240	20110	0.0221	450
2.0	14330	0.0219	310	14330	0.0197	280	14330	0.0175	250	19110	0.0241	460
2.1	13650	0.0236	320	13650	0.0213	290	13650	0.0189	260	18200	0.0260	470
2.2	13030	0.0254	330	13030	0.0228	300	13030	0.0203	260	17370	0.0279	480
2.3	12460	0.0271	340	12460	0.0244	300	12460	0.0217	270	16620	0.0298	500
2.4	11940	0.0289	340	11940	0.0260	310	11940	0.0231	280	15920	0.0318	510
2.5	11460	0.0306	350	11460	0.0276	320	11460	0.0245	280	15290	0.0337	520
2.6	11020	0.0324	360	11020	0.0291	320	11020	0.0259	290	14700	0.0356	520
2.7	10620	0.0341	360	10620	0.0307	330	10620	0.0273	290	14150	0.0375	530
2.8	10240	0.0359	370	10240	0.0323	330	10240	0.0287	290	13650	0.0395	540
2.9	9880	0.0376	370	9880	0.0339	330	9880	0.0301	300	13180	0.0414	550
3.0	9550	0.0394	380	9550	0.0354	340	9550	0.0315	300	12740	0.0433	550

* if the machine tool or the equipment wouldn’ t allow to reach the requested rpm, please use the max. available rpm recalculating the Vf value( Vf = n available x fn)

CARBIDE BURRS

154
