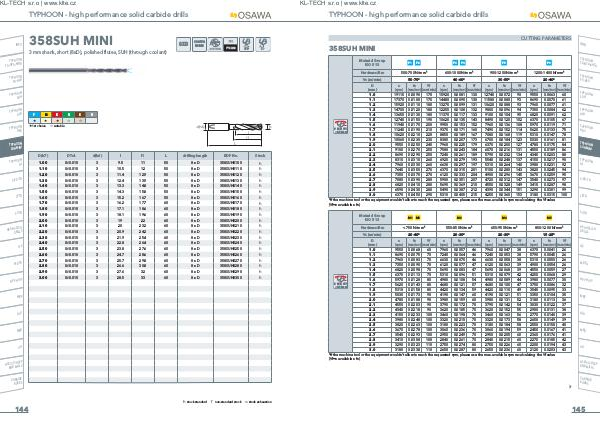

TYPHOON- high performance solid carbide drills

358SUH MINI

CUTTING PARAMETERS

INFO

Material Group ISO 513

P1 P2 P3 P4 P5 P6

TYPHOON

TA-HTA-4HTA

Ø RUN OUT < 0.02mm

Hardness / Rm 500-700 N / mm ² 600-1000 N / mm ² 900-1200 N / mm ² 1200-1400 N / mm ² Vc( m / min) 50-70 * 40-60 * 30-50 * 20-40 *

D( mm) n( rpm) fn Vf( mm / rev)( mm / min) n( rpm) fn Vf( mm / rev)( mm / min) n( rpm) fn Vf( mm / rev)( mm / min) n( rpm) fn Vf( mm / rev)( mm / min)

1.0	19110	0.0090	170	15920	0.0081	130	12740	0.0072	90	9550	0.0063	60
1.1	17370	0.0100	170	14480	0.0090	130	11580	0.0080	93	8690	0.0070	61
1.2	15920	0.0110	180	13270	0.0099	131	10620	0.0088	93	7960	0.0077	61
1.3	14700	0.0120	180	12250	0.0108	132	9800	0.0096	94	7350	0.0084	62
1.4	13650	0.0130	180	11370	0.0117	133	9100	0.0104	95	6820	0.0091	62
1.5	12740	0.0150	190	10620	0.0135	143	8490	0.0120	102	6370	0.0105	67
1.6	11940	0.0170	200	9950	0.0153	152	7960	0.0136	108	5970	0.0119	71
1.7	11240	0.0190	210	9370	0.0171	160	7490	0.0152	114	5620	0.0133	75
1.8	10620	0.0210	220	8850	0.0189	167	7080	0.0168	119	5310	0.0147	78
1.9	10060	0.0230	230	8380	0.0207	173	6700	0.0184	123	5030	0.0161	81
2.0	9550	0.0250	240	7960	0.0225	179	6370	0.0200	127	4780	0.0175	84
2.1	9100	0.0270	250	7580	0.0243	184	6070	0.0216	131	4550	0.0189	86
2.2	8690	0.0290	250	7240	0.0261	189	5790	0.0232	134	4340	0.0203	88
2.3	8310	0.0310	260	6920	0.0279	193	5540	0.0248	137	4150	0.0217	90
2.4	7960	0.0330	260	6630	0.0297	197	5310	0.0264	140	3980	0.0231	92
2.5	7640	0.0350	270	6370	0.0315	201	5100	0.0280	143	3820	0.0245	94
2.6	7350	0.0370	270	6120	0.0333	204	4900	0.0296	145	3670	0.0259	95
2.7	7080	0.0390	280	5900	0.0351	207	4720	0.0312	147	3540	0.0273	97
2.8	6820	0.0410	280	5690	0.0369	210	4550	0.0328	149	3410	0.0287	98
2.9	6590	0.0430	280	5490	0.0387	212	4390	0.0344	151	3290	0.0301	99
3.0	6370	0.0450	290	5310	0.0405	215	4250	0.0360	153	3180	0.0315	100

* if the machine tool or the equipment wouldn’ t allow to reach the requested rpm, please use the max. available rpm recalculating the Vf value

( Vf = n available x fn)

TYPHOON PU-HPU

TYPHOON SUH

TYPHOON ALH

TYPHOON HRC

TYPHOON SUH MINI

TYPHOON HL

C-SD-TA

LFTA

Material Group ISO 513

M1 M2 M3 M4 M5

SUTA

Ø RUN OUT < 0.02mm

Hardness / Rm < 750 N / mm ² 550-850 N / mm ² 650-950 N / mm ² 850-1200 N / mm ² Vc( m / min) 20-40 * 20-30 * 20-30 * 15-25 *

D( mm) n( rpm) fn Vf( mm / rev)( mm / min) n( rpm) fn Vf( mm / rev)( mm / min) n( rpm) fn Vf( mm / rev)( mm / min) n( rpm) fn Vf( mm / rev)( mm / min)

1.0	9550	0.0068	60	7960	0.0057	46	7960	0.0047	38	6370	0.0041	26
1.1	8690	0.0075	70	7240	0.0064	46	7240	0.0053	38	5790	0.0045	26
1.2	7960	0.0083	70	6630	0.0070	46	6630	0.0058	38	5310	0.0050	26
1.3	7350	0.0090	70	6120	0.0077	47	6120	0.0063	39	4900	0.0054	26
1.4	6820	0.0098	70	5690	0.0083	47	5690	0.0068	39	4550	0.0059	27
1.5	6370	0.0113	70	5310	0.0096	51	5310	0.0079	42	4250	0.0068	29
1.6	5970	0.0128	80	4980	0.0108	54	4980	0.0089	44	3980	0.0077	30
1.7	5620	0.0143	80	4680	0.0121	57	4680	0.0100	47	3750	0.0086	32
1.8	5310	0.0158	80	4420	0.0134	59	4420	0.0110	49	3540	0.0095	33
1.9	5030	0.0173	90	4190	0.0147	60	4190	0.0121	51	3350	0.0104	35
2.0	4780	0.0188	90	3980	0.0159	60	3980	0.0131	52	3180	0.0113	36
2.1	4550	0.0203	90	3790	0.0172	70	3790	0.0142	54	3030	0.0122	37
2.2	4340	0.0218	90	3620	0.0185	70	3620	0.0152	55	2900	0.0131	38
2.3	4150	0.0233	100	3460	0.0198	70	3460	0.0163	56	2770	0.0140	39
2.4	3980	0.0248	100	3320	0.0210	70	3320	0.0173	58	2650	0.0149	39
2.5	3820	0.0263	100	3180	0.0223	70	3180	0.0184	58	2550	0.0158	40
2.6	3670	0.0278	100	3060	0.0236	70	3060	0.0194	59	2450	0.0167	41
2.7	3540	0.0293	100	2950	0.0249	70	2950	0.0205	60	2360	0.0176	41
2.8	3410	0.0308	100	2840	0.0261	70	2840	0.0215	60	2270	0.0185	42
2.9	3290	0.0323	110	2750	0.0274	80	2750	0.0226	60	2200	0.0194	43
3.0	3180	0.0338	110	2650	0.0287	80	2650	0.0236	60	2120	0.0203	43

* if the machine tool or the equipment wouldn’ t allow to reach the requested rpm, please use the max. available rpm recalculating the Vf value

( Vf = n available x fn)
