TYPHOON SUH MINI
HIGH PERFORMANCE - MINIATURE SHORT AND LONG
INFO
TYPHOO
N
TA-HTA-4
HTA

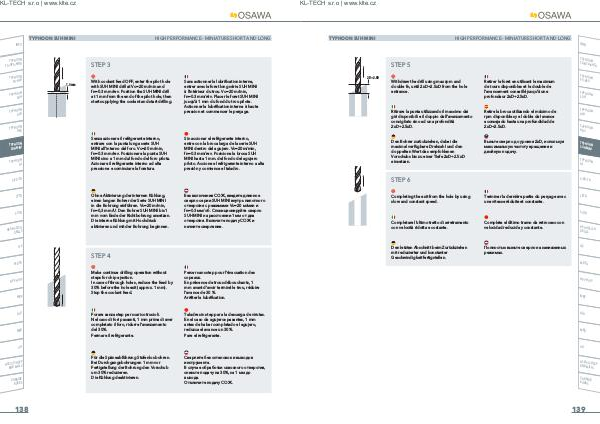

STEP 5
2D÷2.5D
Withdraw the drill using max rpm and
double fn, until 2xD÷2.5xD from the hole
entrance. Retirer le foret en utilisant le maximum
de tours disponibles et le double de
l’avancement conseillé jusqu’à une
profondeur 2xD÷2.5xD.
Ritirare la punta utilizzando il massimo dei
giri disponibili e il doppio dell’avanzamento
consigliato sino ad una profondità
2xD÷2.5xD. Retire la broca utilizando el máximo de
rpm disponibles y el doble del avance
aconsejado hasta una profundidad de
2xD÷2.5xD.
Den Bohrer zurückziehen, dabei die
maximal verfügbare Drehzahl und den
doppelten Wert des empfohlenen
Vorschubs bis zu einer Tiefe 2xD÷2.5xD
einsetzen. Выньте сверло до уровня 2хD, используя
максимальную частоту вращения и
двойную подачу.
TYPHOO
N
SUH
TYPHOO
N
ALH
TYPHOO
N
HRC
TYPHOO
N
SUH MIN
I
TYPHOO
N
HL
C-SD-TA
STEP 6
Completing the exit from the hole by using
slow and constant speed.
TYPHOO
N
PU-HPU
Terminer la dernière partie du perçage avec
une vitesse réduite et constante.
LFTA
SUTA
Completare l’ultimo tratto di arretramento
con velocità ridotta e costante. Complete el último tramo de retroceso con
velocidad reducida y constante.
Den letzten Abschnitt beim Zurückziehen
mit reduzierter und konstanter
Geschwindigkeit fertigstellen. Полностью выньте сверло на заниженных
режимах.
