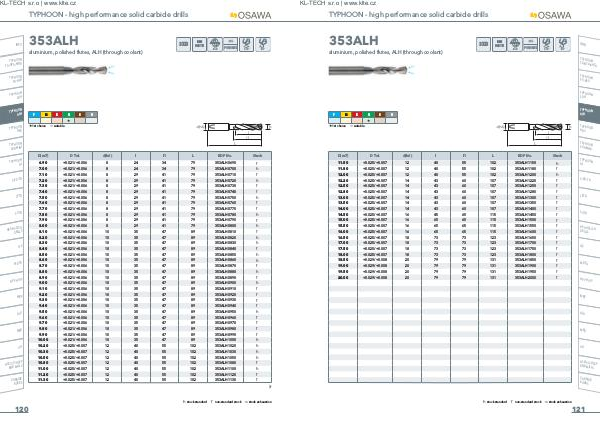

TYPHOON - high performance solid carbide drills
353ALH
DIN
6537K
3XD
INFO
POLISHED
aluminium, polished flutes, ALH (through coolant)
TYPHOO
N
TA-HTA-4
HTA
TYPHOO
N
PU-HPU
TYPHOO
N
SUH
P
M
K
N
S
TYPHOO
N
ALH
H
+
+ 1st choice
, suitable
TYPHOO
N
HRC
TYPHOO
N
SUH MIN
I
D(m7) D Tol. d(h6) l l1 L EDP No. Stock
11.50 +0.025/+0.007 12 40 55 102 353ALH1150 h
11.80 +0.025/+0.007 12 40 55 102 353ALH1180 f
12.00 +0.025/+0.007 12 40 55 102 353ALH1200 h
12.20 +0.025/+0.007 14 43 60 107 353ALH1220 f
12.50 +0.025/+0.007 14 43 60 107 353ALH1250 f
12.80 +0.025/+0.007 14 43 60 107 353ALH1280 f
13.00 +0.025/+0.007 14 43 60 107 353ALH1300 f
13.50 +0.025/+0.007 14 43 60 107 353ALH1350 f
14.00 +0.025/+0.007 14 43 60 107 353ALH1400 f
14.50 +0.025/+0.007 16 45 65 115 353ALH1450 f
15.00 +0.025/+0.007 16 65 65 115 353ALH1500 f
15.50 +0.025/+0.007 16 65 65 115 353ALH1550 f
16.00 +0.025/+0.007 16 65 65 115 353ALH1600 f
16.50 +0.025/+0.007 18 73 73 123 353ALH1650 f
17.00 +0.025/+0.007 18 73 73 123 353ALH1700 f
17.50 +0.025/+0.007 18 73 73 123 353ALH1750 f
18.00 +0.025/+0.007 18 73 73 123 353ALH1800 f
18.50 +0.029/+0.008 20 79 79 131 353ALH1850 f
19.00 +0.029/+0.008 20 79 79 131 353ALH1900 f
19.50 +0.029/+0.008 20 79 79 131 353ALH1950 f
20.00 +0.029/+0.008 20 79 79 131 353ALH2000 f
TYPHOO
N
HL
C-SD-TA
LFTA
SUTA
HSS-HSS
/CO
DRILLS
G2
MDTA
HF VH/U
P
MEF
ALU
MEX
UH
HSS/CO
-HSSP
END MIL
LS
CARBIDE
BURRS
h stock standard
f non-standard stock
m stock exhaustion
