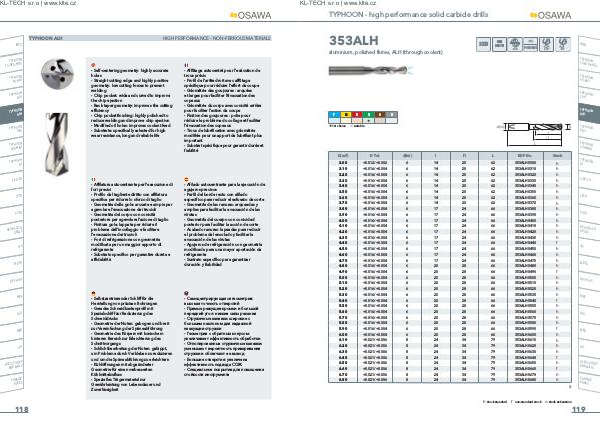

TYPHOON - high performance solid carbide drills
353ALH
DIN
6537K
3XD
INFO
POLISHED
aluminium, polished flutes, ALH (through coolant)
TYPHOO
N
TA-HTA-4
HTA
TYPHOO
N
PU-HPU
TYPHOO
N
SUH
P
M
K
N
S
TYPHOO
N
ALH
H
+
+ 1st choice
, suitable
TYPHOO
N
HRC
TYPHOO
N
SUH MIN
I
D(m7) D Tol. d(h6) l l1 L EDP No. Stock
3.00 +0.012/+0.002 6 14 20 62 353ALH0300 h
3.10 +0.016/+0.004 6 14 20 62 353ALH0310 h
3.20 +0.016/+0.004 6 14 20 62 353ALH0320 h
3.30 +0.016/+0.004 6 14 20 62 353ALH0330 h
3.40 +0.016/+0.004 6 14 20 62 353ALH0340 h
3.50 +0.016/+0.004 6 14 20 62 353ALH0350 h
3.60 +0.016/+0.004 6 14 20 62 353ALH0360 h
3.70 +0.016/+0.004 6 14 20 62 353ALH0370 h
3.80 +0.016/+0.004 6 17 24 66 353ALH0380 h
3.90 +0.016/+0.004 6 17 24 66 353ALH0390 h
4.00 +0.016/+0.004 6 17 24 66 353ALH0400 h
4.10 +0.016/+0.004 6 17 24 66 353ALH0410 h
4.20 +0.016/+0.004 6 17 24 66 353ALH0420 h
4.30 +0.016/+0.004 6 17 24 66 353ALH0430 h
4.40 +0.016/+0.004 6 17 24 66 353ALH0440 f
4.50 +0.016/+0.004 6 17 24 66 353ALH0450 h
4.60 +0.016/+0.004 6 17 24 66 353ALH0460 h
4.70 +0.016/+0.004 6 17 24 66 353ALH0470 h
4.80 +0.016/+0.004 6 20 28 66 353ALH0480 h
4.90 +0.016/+0.004 6 20 28 66 353ALH0490 f
5.00 +0.016/+0.004 6 20 28 66 353ALH0500 h
5.10 +0.016/+0.004 6 20 28 66 353ALH0510 h
5.20 +0.016/+0.004 6 20 28 66 353ALH0520 h
5.30 +0.016/+0.004 6 20 28 66 353ALH0530 h
5.40 +0.016/+0.004 6 20 28 66 353ALH0540 f
5.50 +0.016/+0.004 6 20 28 66 353ALH0550 h
5.60 +0.016/+0.004 6 20 28 66 353ALH0560 h
5.70 +0.016/+0.004 6 20 28 66 353ALH0570 h
5.80 +0.016/+0.004 6 20 28 66 353ALH0580 h
5.90 +0.016/+0.004 6 20 28 66 353ALH0590 f
6.00 +0.016/+0.004 6 20 28 66 353ALH0600 h
6.10 +0.021/+0.006 8 24 34 79 353ALH0610 h
6.20 +0.021/+0.006 8 24 34 79 353ALH0620 h
6.30 +0.021/+0.006 8 24 34 79 353ALH0630 h
6.40 +0.021/+0.006 8 24 34 79 353ALH0640 f
6.50 +0.021/+0.006 8 24 34 79 353ALH0650 h
6.60 +0.021/+0.006 8 24 34 79 353ALH0660 f
6.70 +0.021/+0.006 8 24 34 79 353ALH0670 h
6.80 +0.021/+0.006 8 24 34 79 353ALH0680 h
h stock standard
f non-standard stock
TYPHOO
N
HL
C-SD-TA
LFTA
SUTA
HSS-HSS
/CO
DRILLS
G2
MDTA
HF VH/U
P
MEF
ALU
MEX
UH
HSS/CO
-HSSP
END MIL
LS
CARBIDE
BURRS
m stock exhaustion
