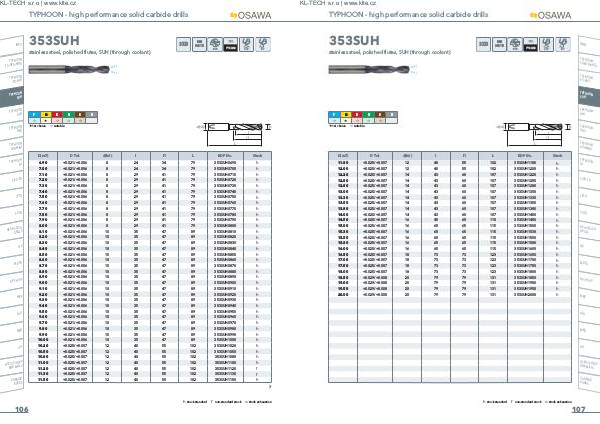

TYPHOON - high performance solid carbide drills
353SUH
DIN
6537K
3XD
INFO
stainless steel, polished flutes, SUH (through coolant)
TYPHOO
N
TA-HTA-4
HTA
TYPHOO
N
PU-HPU
TYPHOO
N
SUH
P
M
K
N S
,
+
,
,
+ 1st choice , suitable ,
TYPHOO
N
ALH
H
TYPHOO
N
HRC
TYPHOO
N
SUH MIN
I
D(m7) D Tol. d(h6) l l1 L EDP No. Stock
11.80 +0.025/+0.007 12 40 55 102 353SUH1180 h
12.00 +0.025/+0.007 12 40 55 102 353SUH1200 h
12.20 +0.025/+0.007 14 43 60 107 353SUH1220 h
12.50 +0.025/+0.007 14 43 60 107 353SUH1250 h
12.80 +0.025/+0.007 14 43 60 107 353SUH1280 h
13.00 +0.025/+0.007 14 43 60 107 353SUH1300 h
13.30 +0.025/+0.007 14 43 60 107 353SUH1330 h
13.50 +0.025/+0.007 14 43 60 107 353SUH1350 h
13.80 +0.025/+0.007 14 43 60 107 353SUH1380 h
14.00 +0.025/+0.007 14 43 60 107 353SUH1400 h
14.50 +0.025/+0.007 16 45 65 115 353SUH1450 h
15.00 +0.025/+0.007 16 65 65 115 353SUH1500 h
15.30 +0.025/+0.007 16 65 65 115 353SUH1530 h
15.50 +0.025/+0.007 16 65 65 115 353SUH1550 h
15.80 +0.025/+0.007 16 65 65 115 353SUH1580 h
16.00 +0.025/+0.007 16 65 65 115 353SUH1600 h
16.50 +0.025/+0.007 18 73 73 123 353SUH1650 h
17.00 +0.025/+0.007 18 73 73 123 353SUH1700 h
17.50 +0.025/+0.007 18 73 73 123 353SUH1750 h
18.00 +0.025/+0.007 18 73 73 123 353SUH1800 h
18.50 +0.029/+0.008 20 79 79 131 353SUH1850 h
19.00 +0.029/+0.008 20 79 79 131 353SUH1900 h
19.50 +0.029/+0.008 20 79 79 131 353SUH1950 h
20.00 +0.029/+0.008 20 79 79 131 353SUH2000 h
TYPHOO
N
HL
C-SD-TA
LFTA
SUTA
HSS-HSS
/CO
DRILLS
G2
MDTA
HF VH/U
P
MEF
ALU
MEX
UH
HSS/CO
-HSSP
END MIL
LS
CARBIDE
BURRS
h stock standard
f non-standard stock
m stock exhaustion
