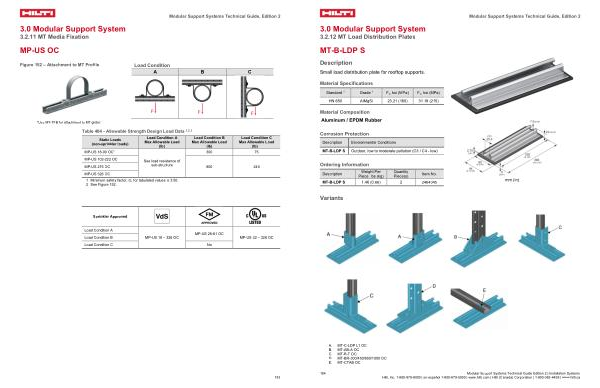

3.0 Modular Support System
3.2.11 MT Media Fixation
MP-US OC
Figure 152 – Attachment to MT Profile
* Use MT-TFB for attachment to MT girder.
Table 404- Allowable Strength Design Load Data 1, 2, 3
Static Loads( non-sprinkler loads)
MP-US 18-90 OC” MP-US 102-222 OC MP-US 275 OC
Load Condition A Max Allowable Load( lb)
See load resistance of sub-structure
MP-US 326 OC
1 Minimum safety factor, Ω, for tabulated values is 3.50. 2 See Figure 152.
Load Condition B Max Allowable Load( lb)
Load Condition C Max Allowable Load( lb)
300 75
800 240
Sprinkler Approved
Load Condition A |
|
|
Load Condition B |
MP-US 18 – 326 OC |
MP-US 28-61 OC |
|
MP-US 22 – 326 OC |
Load Condition C |
|
|
|
|
No |
|
183
