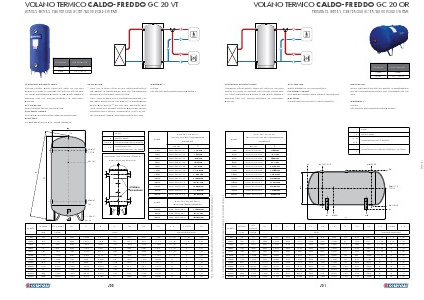

VOLANO TERMICO CALDO-FREDDO GC 20 VT
VERTICAL INERTIAL TANK FOR COLD WATER AND HOT/COLD SYSTEMS
PRESSURE
TEMPERATURE
Pmax
6 bar
Tmax
-10 / +90 °C
TECHNICAL DESCRIPTIONS
Vertical inertial water tanks are used for hot/cold
systems in order to increase the thermal inertia and,
for those installations without a low water-capacity,
avoiding that the chilling generator is continually
working.
APPLICATION
Water storage for hot/cold systems.
EXTERNAL LINING
Blue skai with plastic black caps for connections
MATERIAL
Outside painted mild steel, inside uncoated.
INSULATION
– From 100 to 5000 liters: 20 mm fixed polyethylene
not subject to condensation. Not self-estinguishing
version. Not removable from the tank.
– From 3000 to 5000 liters (increased insulation) : 20
mm fixed polyethylene not subject to condensation
joined with NOFIRE ® 50 mm soft polyester fibre
100% made of recyclable material, with high Thermal
insulation and Thermal conductivity: 0.039 W/mK.
Fire resistance class B-s2d0 according to EN 13501.
WARRANTY
2 years
See general sales conditions and warranty.
Df
1
Drain
2
(2)
Safety valve
3456
7-8
H4 (3)
(7) (4)
Model
Connections to the system
Connection for
instrumentation 1/2” Gas F
INTERNAL BULKHEADS VERSION
AVAILABLE ON REQUEST
H
A
H3 (8)
INTERNAL
BULKHEADS
H2 (5)
(6)
Model
3000
4000
5000
H1 (1)
0
100
200
300
500
800
1000
1500
2000
2500
3000
4000
5000
Weight
Net Volume
[Kg]
Model
[liters]
32
53
67
101
147
170
183
219
274
321
442
565
101
190
292
501
788
1034
1432
1970
2300
2908
3749
4964
Df
H
