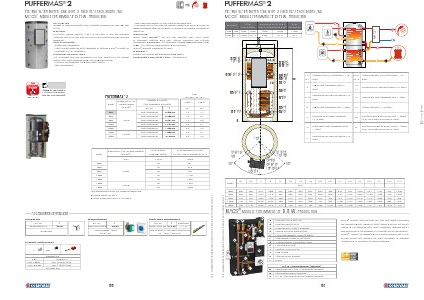

PUFFERMAS® 2
HEATING WATER BUFFER TANK WITH 2 FIXED HEAT EXCHANGERS AND
MACS® MODULE FOR IMMEDIATE D.H.W. PRODUCTION
APPLICATION
Storage of heating hot water and immediate production of high flow rate
D.H.W.
MATERIAL
Mild steel outside painted. There is no need of any anti-corrosion
treatment due to the fact that the buffer is in a closed circuit without any
adding air
HEAT EXCHANGER
- 2 fixed heat exchangers
- Plate to plate stainless steel exchanger in external MACS® module for
immediate D.H.W. production.
TECHNICAL DESCRIPTIONS
The immediate and fast production of D.H.W. granted by the outside
system steel plate exchange allow the following benefits:
- to reduce dimensions of the water heater need it
- easy maintenance
- easy maximum hygiene for anti-legionellosis bacteria’s
- to produce more DHW than the quantity obtained by boiler with similar
capacity because heating hot water is stored at an highest temperature
than DHW
INSULATION
(Buffer tank): NOFIRE® 100 mm soft polyester fibre 100% made
of recyclable material, with high Thermal insulation and Thermal
conductivity: 0,039 W/mK. Fire resistance class B-s2d0 according to EN
13501. PVC external lining complete with top cover.
(MACS® module): insulating PPE cover
WARRANTY
5 years - See general sales conditions and warranty
ACCESSORIES AND SPARE PARTS : See page 216
PROMPT DELIVERY
1-5 days to dispatch
(delivery time excluded)
NOFIRE®
INSULATION
HEAT
EXCHANGER SURFACE
PUFFERMAS® 2
Model
Maximum D.H.W.
module output
(MACS®)
500
600
800
1000
1500
1000
1500
70 kW
120 kW
Storage: Mild steel
Heat exchanger: Mild steel
€
Art. Nr.
3251162284743
2.587,00
3251162284744
2.759,00
3251162284745
2.843,00
3251162284746
3.151,00
3251162284747
3.857,00
3251162284748
3.562,00
3251162284749
4.326,00
Upper
2
[m ]
1,3
1,3
1,8
2,5
2,8
2,5
2,8
Lower
[m2]
1,9
2,1
2,5
3,1
3,8
3,1
3,8
Maximum D.H.W. module output(*)
(MACS®)
DHW Station
max flow rate(*)
Max availability of DHW
(10-45 °C) with storage at 70 °C
[kW]
Model
[l/min]
30
30
30
30
30
50
50
[liters]
511
614
983
1100
1680
1503
2254
500
600
800
1000
1500
1000
1500
70 kW
120 kW
(*)Data obtained under the following conditions:
• primary water at 80°C
• DHW production from 10°C to 45°C.
Accessories on request
Thermometer
Art. Nr.
5032240000107
€
80,00
5 units box
Recirculation kit
€
Art. Nr.
5221000000054
477,00
Control display + pump
(for D.H.W.)
Electrical immersions kit
[Kw]
from 1,5 to 3
from 4 to 12
Available kit:
Tension [V]
220 - MONOPHASE
400 - THREEPHASE
See page 220
166
Buffer tanks connecting kit
€
Art. Nr.
Connection
5006170001001 110,00
1” 1/2
Stainless steel extensible connecting
kit - (200 ÷ 400 mm)
