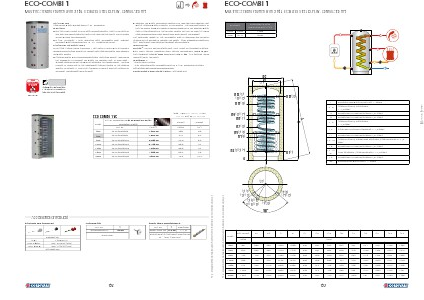

MULTI-HEAT ENERGY BUFFER WITH 316L STAINLESS STEEL D.H.W. CORRUGATED PIPE
CORRUGATED DHW
STAINLESS STEEL PIPE
Pmax
6 bar

STORAGE
Pmax
3 bar

Tmax
99 °C

De
Df
(21)

H12 (17)
(18) (19)

H13 (20)

2-4

H9 (13) (14)
H8 (11)

3
6

H

7-8

H7 (10)

Domestic cold water circuit inlet 1” Gas M
Heating return/To Generator
1”1/2 Gas F
Connection for instrumentation 1/2” Gas F
Connection for instrumentation 1/2” Gas F
Heating return/To Generator
1”1/2 Gas F

MULTIFUEL ENERGY

1

H11 (16)

A

10

Electrical immersion resistance 1” 1/2 Gas F

11

H5 (7) (8)
H4 (6)

Connection for instrumentation 1/2” Gas F
Heating return/To additional generator/Heating delivery 1”1/2
Gas F
Connection for instrumentation 1/2” Gas F

13 - 14

H2 (2) (3) (4)

16
17 - 19
21
18
20

H1 (1)

0

From Generator/ Heating delivery 1”1/2 Gas F
Connection for instrumentation 1/2” Gas F
Domestic hot water outlet 1” Gas M

(21)

P.E.D. product planned and produced in conformity to the article 3.3 of directive 92/23/CE

P.E.D. product planned and produced in conformity to the article 3.3 of directive 92/23/CE

ECO-COMBI 1

(2) (7)
(13) (17)

(4) (8)
(14) (19)

(3) (6) (10)
(11) (16) (18)

(1) (20)
100°

Model

Net Volume

Df

De

H

A

H1

H2

H4

[liters]

H5

H7

H9

H11

H12

H13

[mm]

500

421

650

850

1620

1665

230

247

533

629

841

1011

1231

1343

1360

600

503

650

850

1870

1915

230

247

582

695

915

1144

1382

1593

1610

800

738

790

990

1840

1895

248

265

584

690

823

1115

1332

1541

1558

1000

855

790

990

2130

2180

248

265

656

787

998

1309

1588

1831

1843

1250

1131

900

1100

2202

2262

296

313

705

835

986

1357

1586

1879

1896

1500

1324

950

1150

2250

2315

296

313

736

845

1061

1377

1653

1909

1921

2000

1829

1100

1300

2320

2400

330

347

770

879

1060

1411

1687

1943

1955
